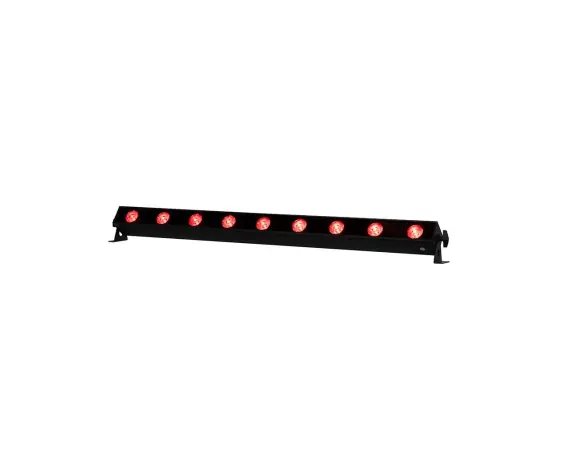

American DJ UBL9H

9x 20W HEX LED Linear Wash with Lime and UV, High CRI

$329.99

Powerful Linear Wash Light with Advanced Color Mixing

The ADJ UBL9H is an advanced linear wash fixture designed for versatile lighting applications. It features nine 20W HEX LEDs, including a lime chip, providing smooth RGBAL+UV color mixing and an impressive CRI of over 90. This light allows for precise control of color temperature between 2,300K and 9,900K, making it ideal for lighting designers seeking flexibility for events, architectural applications, and stage performances.

ADJ UBL9H Competitive Differences

  • Includes a lime-infused HEX LED for high-quality color rendering with a CRI over 90.
  • Tunable white light from 2,300K to 9,900K for precise color temperature control.
  • Magnetic alignment feature for easy installation in horizontal arrays.
  • Compatible with ADJ UC-IR24 remote for convenient operation up to 32.8 feet (10 meters).
  • RDM compatible for advanced control and configuration feedback.

ADJ UBL9H Description

The ADJ UBL9H is a versatile lighting solution that incorporates nine high-powered 20W LEDs, each offering a combination of red, green, blue, amber, lime, and UV colors. With smooth RGBAL+UV color mixing, this fixture provides an exceptional range of vibrant colors and precise white light control. The inclusion of a lime chip enhances color rendering, resulting in an impressive CRI of over 90, ensuring excellent color fidelity. The UBL9H offers a variety of operational modes, including DMX control with up to 28 channels and pixel control for creative lighting effects. It is ideal for wash lighting across large surfaces, walls, floors, or ceilings in entertainment venues, theaters, and event spaces.

UBL9H Features

  • Linear Color Temperature Control: 2,300K to 9,900K
  • RGBAL+UV color mixing for rich, vibrant colors
  • Magnetic alignment feature for easy horizontal setup
  • Remote control compatible (ADJ UC-IR24) – range up to 32.8 feet (10 meters)
  • RDM compatible for enhanced control options
  • Built-in microphone for sound-activated mode
  • OLED display for easy configuration
  • 5 operational modes, including auto-run, sound trigger, and DMX-512
  • LED refresh rate: 1.9kHz, ensuring flicker-free performance
  • Multiple dimming modes and curves for customizable effects
  • Pulse and strobe effects available
  • Power linkable – connect up to 22 fixtures at 120V or up to 40 fixtures at 230V

UBL9H Specifications

  • Light Source: 9 x 20W HEX LEDs (Red, Green, Blue, Amber, Lime, UV)
  • Beam Angle: 17°
  • CRI: Over 90
  • Pixel Pitch: 113mm
  • Control Options: 7 DMX Channel Modes (6, 11, 13, 16, 18, 25, 28)
  • DMX Link: 5-pin XLR cable
  • Power: Multi-voltage (AC 100V-240V 50/60Hz)
  • Power Draw: 54W
  • Dimensions: 2.96" x 42.60" x 4.2" (75 x 1082 x 106.7 mm)
  • Weight: 7.28 lbs. (3.3 kg)
  • Operating Temperature: -4°F to 113°F (-20°C to 45°C)
  • Certifications: cETLus, CE, FCC
  • IP Rating: IP20

What's in the Box

  • Indoor Locking Power Cord
  • UC-IR24 Remote Control
  • 20° Diffusion Filter
  • Mounting Brackets
