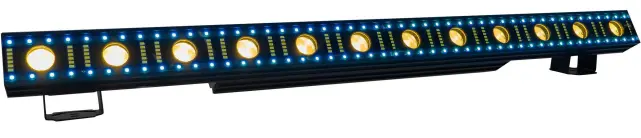

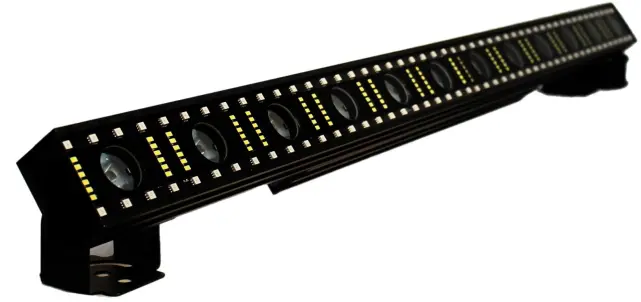

JMAZ PIXL FX Bar 5050

Pixel wash and beam light bar for stage, video, and event lighting

The JMAZ PIXL FX BAR 5050 is a versatile 180W LED light bar designed to deliver stunning pixel effects, sharp beams, and ambient washes. With RGB outer SMDs, ultra-white inner SMDs, and powerful warm white beam LEDs, this bar is perfect for DJ booths, stages, studios, and photography/video production. Its silent operation, narrow 3° beam angle, and multiple control modes make it an ideal choice for dynamic lighting setups in any environment.

JMAZ PIXL FX BAR 5050 Competitive Differences

• Powerful 180W output with RGB, cool white, and warm white LEDs
• Silent operation with all-aluminum, fanless design
• 96 RGB outer SMDs for vibrant color washes and effects
• 144 ultra-white inner SMDs for crisp strobe and illumination
• 12 x 5W warm white LEDs for focused beam effects and video/photography use
• Ultra-narrow 3° beam angle for sharp beam projection
• DMX512 with 6 operation modes and up to 65-channel control
• Includes powerCON cable, stand mount, and DMX cable

JMAZ PIXL FX BAR 5050 Description

The JMAZ PIXL FX BAR 5050 is engineered to offer maximum creative control and lighting flexibility. Combining three types of LEDs—RGB, cool white, and warm white—this bar produces stunning washes, pinpoint beams, and intense strobe effects. Designed for professional performance environments, its 3° beam angle delivers tight projection while RGB outer SMDs create vivid ambient effects.

With six DMX channel modes (10/18/23/28/33/65) and standalone operation options including auto, sound active, and manual modes, it adapts easily to different control preferences. The robust die-cast aluminum body serves as a heatsink, eliminating the need for fans, which ensures silent performance—ideal for noise-sensitive venues like studios and corporate events.

Built-in programs make the FX BAR 5050 ready to use out of the box, while individual pixel control offers more complex lighting shows for experienced programmers. Whether for stage lighting, mobile DJs, architectural lighting, or film production, this bar delivers exceptional performance and value.

PIXL FX BAR 5050 Features

• 12 x 5W Warm White LED beams for high-impact effects
• 96 x 0.5W RGB SMD LEDs for colorful wash and pixel control
• 144 x 0.5W Cool White inner SMD LEDs for strobe and high visibility
• 10 built-in auto sound programs + 8 sound programs
• DMX512 control with 3-pin in/out connections
• Control modes: DMX, Auto, Sound Active, Master/Slave, Manual
• Zone control for dynamic pixel effects
• Linear 0–100% dimmer and strobe effect
• powerCON in/out for reliable power connections
• Die-cast aluminum alloy body for durability and silent operation

PIXL FX BAR 5050 Specifications

• Power Consumption: 150W
• Voltage: AC 110–220V, 50/60Hz
• Light Source Output: 60W (12 x 5W warm white), 48W (96 x 0.5W RGB), 72W (144 x 0.5W CW)
• Beam Angle: 3°
• DMX Channel Modes: 9, 45, 51 (also referenced as 10/18/23/28/33/65 modes)
• Body Material: Die-cast aluminum alloy
• Dimensions: 39.4" x 2.8" x 2.9"
• Weight: 8.6 lbs
• UPC: 93674450530

What's In The Box

• 1 x JMAZ PIXL FX BAR 5050
• 1 x Stand Mount
• 1 x DMX Cable
• 1 x powerCON Cable
• 1 x User Manual
