The CX311 two-way stereo crossover network has an additional subwoofer output for low-end frequency reinforcement. It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies which is optimal for the proper acoustic summing of common signals from adjacent drivers in the crossover region.
FEATURES:
Each channel features independent high and low output level controls and a crossover frequency rotary control which covers a wide range (250hz to 6khz).
All three outputs have a 30 cycle low cut switch to eliminate low-end rumble.
Subwoofer features an independent output level and rotary control for frequencies in the 50hz to 250hz range.
Key Features
Stereo two-way crossover Subwoofer output Fourth-order Linkwitz-Riley filters (24dB / octave state-variable) Independent high and low output level controls Crossover frequency rotary control (250hz to 6khz) 30 cycle low cut switch Independent output level and rotary control (50hz to 250hz)
SPECIFICATIONS:
Dimensions 1.75”H x 19”W x 5.5”D
Weight 4.85 lbs. (2.2 kg)

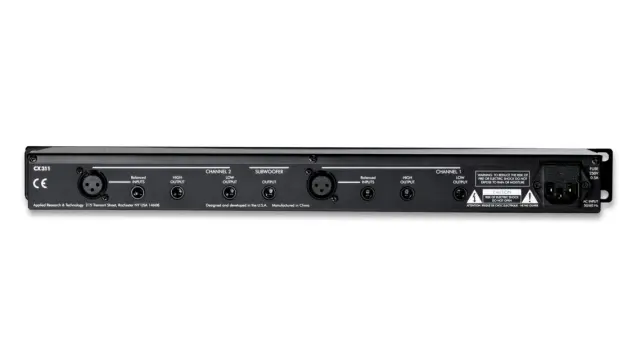

Input Connections XLR, ¼” TRS, balanced
Output Connections ¼”TS, unbalanced
Input Impedance 100K ohms
Output Impedance 220 ohms
Maximum Input Level +21dBu
Maximum Output Level +21dBu
CMRR >75dB (typical @ 1kHz)
Frequency Response 10Hz to 40kHz, +/-.5dB
Signal to Noise Ratio >95dB, Ref: 0dBu
20Hz to 20kHz, unweighted
Dynamic Range >114dB
Total Harmonic Distortion <0.01% (20Hz-20kHz,0dBu)
Crossover Filter Type Fourth-order Linkwitz-Riley,
24dB/octave, state-variable
Crossover Frequency Range 250Hz to 6kHz
Subwoofer Filter Type Two-pole Butterworth, 12dB/ octave
Subwoofer Frequency Range 50Hz to 250Hz
Power Requirements USA – 110-125V AC / 50-60hz/ 15W
Export units configured for
country of destination.

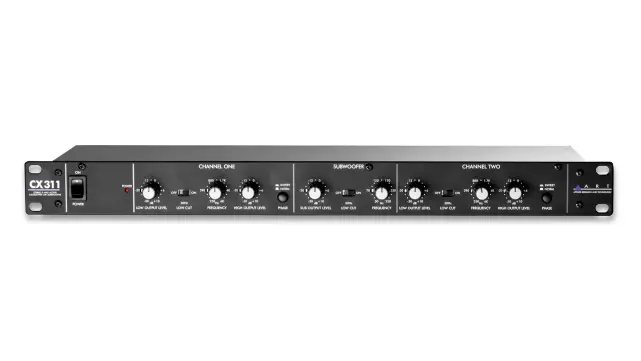

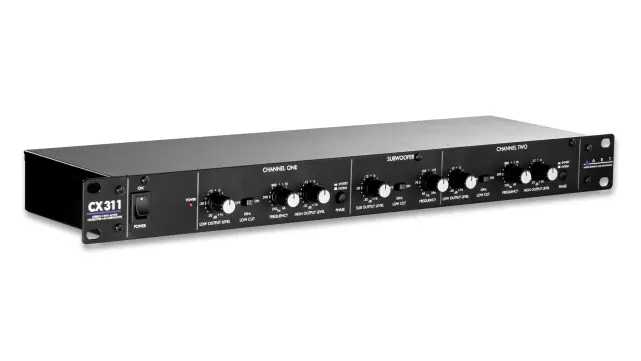

ART CX311
(Art 2way Crossover with Subwoofer Out)
