High-Efficiency 4-Channel Power Amplifier for Installations
The
Ashly CA-1.04 is a powerful and ultra-efficient 4-channel amplifier designed for professional installations. With its advanced D-MAX Class D design, Dynamic Power Factor Correction (DPFC), and flexible connectivity options, the CA-1.04 delivers up to 1000W per channel and supports both low-impedance (2, 4, and 8 ohms) and high-impedance (70V/100V) configurations. Ideal for venues requiring reliable and scalable sound reinforcement, the CA-1.04 combines power, efficiency, and installer-friendly features.
Ashly CA-1.04 Competitive Differences
- Four channels delivering 1000W per channel at 4 ohms or 70V
- D-MAX Class D amplification for exceptional efficiency and performance
- Dynamic Power Factor Correction (DPFC) ensures consistent power delivery
- Switchable high-pass filters (HPF) and clip limiters for each channel
- Adjustable front-panel input gain with lock-out for precise control
- Bi-lateral SailFlow cooling system for optimized thermal management
- Installer-friendly Euroblock and XLR combo connectors
- Supports 100V operation in bridged mode with 2000W output
Ashly CA-1.04 Description
The
Ashly CA-1.04 represents the pinnacle of amplifier efficiency and versatility. Equipped with Ashly’s D-MAX Class D technology, it delivers up to 1000W per channel at 4 ohms or 70V, making it perfect for both low-impedance and high-impedance sound systems. The inclusion of Dynamic Power Factor Correction ensures consistent power output while minimizing energy consumption.
The CA-1.04 offers extensive control options, including per-channel high-pass filters, clip limiters, and adjustable input gain. Its bi-lateral SailFlow cooling system efficiently directs airflow to prevent overheating, ensuring reliable performance even under demanding conditions. With its rugged construction and installer-friendly connectors, the CA-1.04 is an ideal solution for large-scale venues, houses of worship, and corporate installations.
CA-1.04 Features
- 4 channels, each delivering:
- 1000W @ 2 ohms or 4 ohms
- 500W @ 8 ohms
- 1000W @ 70V constant voltage
- 2000W bridged @ 8 ohms or 100V constant voltage
- D-MAX Class D amplification with Dynamic Power Factor Correction (DPFC)
- Per-channel adjustable input gain with lock-out
- Switchable high-pass filters (HPF) and clip limiters per channel

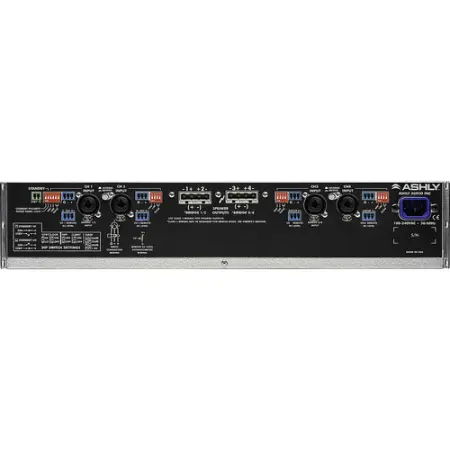

- Euroblock and XLR combo input connectors
- Bi-lateral SailFlow cooling architecture

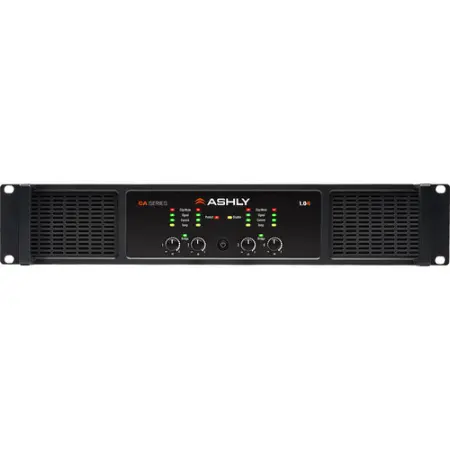

- Rugged metal front panel with clear LED indicators
CA-1.04 Specifications
- Number of Channels: 4
- Power Output:
- 1000W per channel @ 2/4 ohms or 70V
- 500W per channel @ 8 ohms
- 2000W bridged @ 100V or 8 ohms
- Amplifier Class: Class-D
- Cooling: Bi-lateral SailFlow cooling system
- Input Connections: Euroblock and XLR combo connectors
- Operating Voltage: Supports 70V and 100V constant voltage systems
ASHLY CA1.04
(Ashly CA-1.04)
