Dynacord L3600FD | 2-Channel Class H DSP Amplifier...
$2,511.00
The Dynacord L3600FD is a professional dual-channel power amplifier designed for live performances, mobile sound systems, rental applications, and high-output PA installations. Its Class H output stage, integrated FIR Drive processing, front-panel controls, and comprehensive protection functions provide dependable amplification while simplifying loudspeaker system setup.

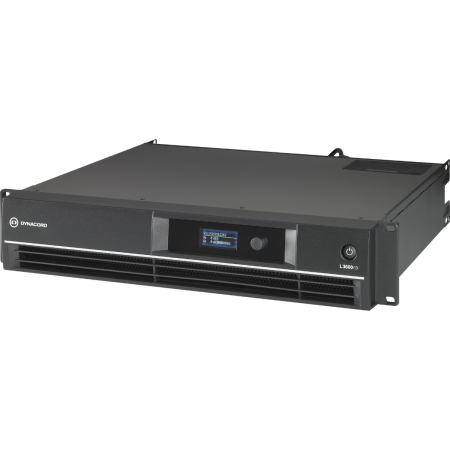

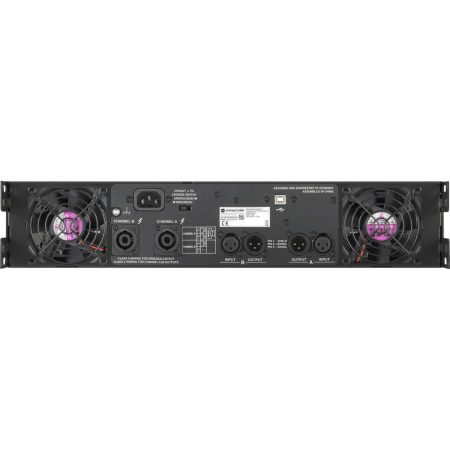

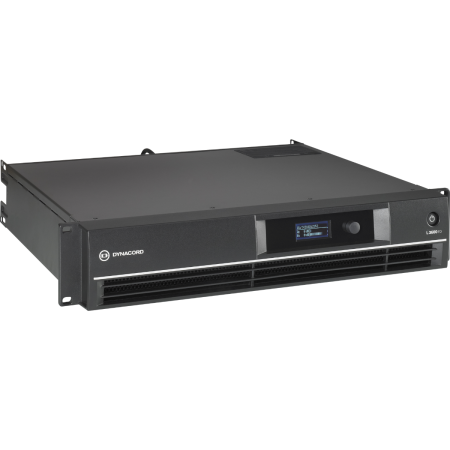

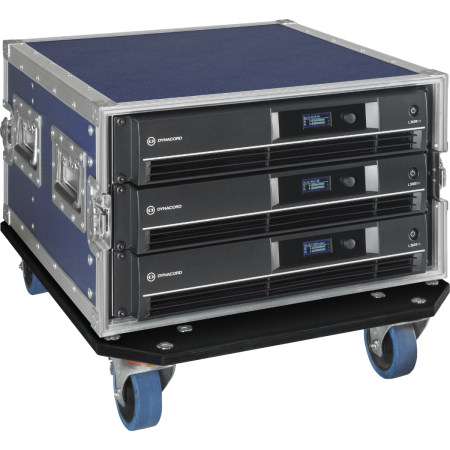

The Dynacord L3600FD combines powerful two-channel amplification and integrated digital speaker processing in a rugged 2U rackmount chassis. Its connectivity, cooling system, and controls are optimized for live and mobile applications, making it suitable for touring systems, rental companies, event production, installed PA systems, and high-output portable sound rigs.
The Class H output stage delivers up to 3000W per channel at 2 ohms, 1700W per channel at 4 ohms, or 6000W in bridged mode at 4 ohms. A frequency response of 10Hz to 21kHz and a signal-to-noise ratio greater than 109dB support clean audio reproduction for demanding full-range speaker and subwoofer applications.
Integrated DSP provides FIR filtering, audio limiting, load-impedance monitoring, equalization, and delay functions. With firmware 2.0, the amplifier supports SONICUE sound system software, output and array delay, a 10-band user parametric EQ, and a five-band array parametric EQ for each channel.

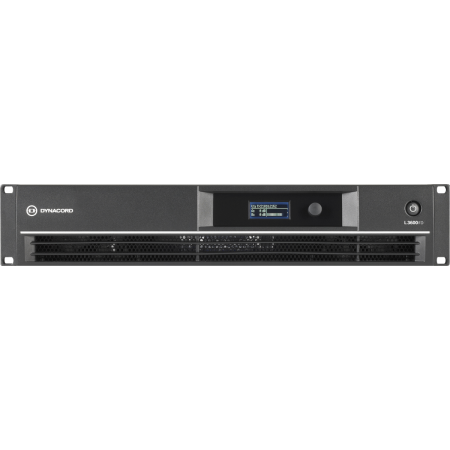

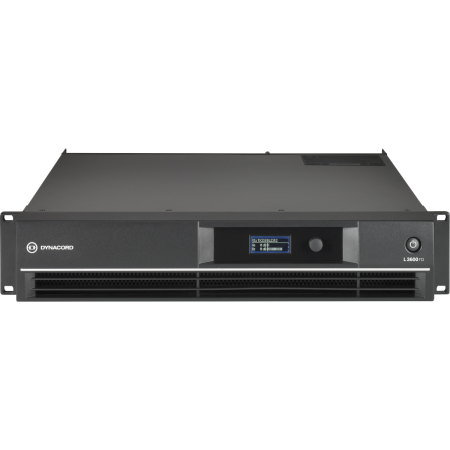

A front-panel LC display provides direct access to amplifier settings and operating information without requiring an external computer. Built-in protection against excessive temperature, DC, high-frequency signals, Back-EMF, peak current, and inrush current supports reliable operation in professional sound environments.
| Brand | Electro-Voice |
| Name | Dynacord L3600FD |
| Primary Category | DSP Power Amplifier |
| Build Material | Rugged 2U rackmount chassis |
| Dimensions | 19.0 x 3.5 x 18.2 in (483 x 88 x 462.4 mm) inches |
| Weight | 40.1 lb (18.2 kg) kg |
| Control Interfaces | Front-panel LC display, SONICUE sound system software compatibility |
| Firmware Updates | Firmware 2.0 supports SONICUE software, output and array delay, parametric EQ |
| Onboard DSP | Integrated FIR Drive speaker-processing technology with FIR filters, audio limiters, delay, parametric EQ, and load-impedance monitoring |
| Frequency Response | 10Hz to 21kHz Hz |
| Impedance | 2 ohms, 4 ohms, 8 ohms ohms |
| Power Consumption | 850W at one-eighth maximum output power into 4 ohms W |
| Power Rating | 6000W Bridged Output W |
| Wattage | 2 x 1700W at 4 ohms, 2 x 3000W at 2 ohms, 6000W bridged at 4 ohms W |
| Warranty Length | Not specified years |
