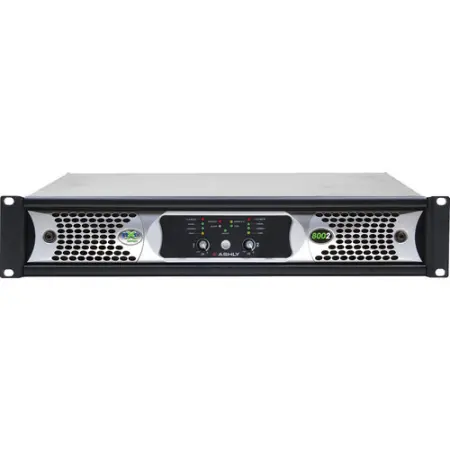

The nXp Series NXP8002 2-Channel 800W Power Amplifier with Programmable Outputs & Protea Software Suite from Ashly is a Class-D switching amplifier combined with a switch mode power supply. This amplifier meets the requirements of demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers.
This amplifier features Protea DSP processing for efficient control. The rear panel has DIP switches for programming each channel output for either High-Z or Low-Z operation. This amplifier can be connected to a network with Ethernet control and features serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability, all controlled using the included Protea Software Suite.
The amplifier offers 32-bit SHARC DSP processing (with 48 & 96 kHz sampling) for comprehensive audio processing and built-in signal generator for test tone and noise-masking. It also offers swept load impedance monitoring on each amplifier channel output.
FEATURES:
2-Channel high-output amplifier with programmable output on each channel (High-Z or Low-Z, selected via rear panel DIP switches)
Power-saving, Energy Management System with automatic <1W sleep-mode (defeatable)
Front panel power switch and level controls (can be disabled for security)
Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
Remote DC level control on each input channel
Switch mode power supply automatically detects 120 or 240VAC operation
Extensive protection circuitry and continuously variable cooling fans
Multiple independent internal power supplies provide increased channel separation and reliability
Ethernet port for control and monitoring of amplifier functions, with front panel COM activity LED
Serial data port for use with Ashly remote control devices, or optional RS-232 converter for third party controllers (not included)
Use Protea software to remotely disable all front panel controls, including the on/ off switch, for a tamper-proof installation
Offers 32-bit SHARC DSP processing with 48 & 96 kHz sampling
Built-in signal generator for test tone and noise-masking
Swept load impedance monitoring available on each amplifier channel output
Real-time clock with event scheduler
Instant standby mode that can be triggered by contact closure, software control, or event scheduler for reduced power consumption
Programmable power-on delay
Preset recall via contact closure, software control, remote control, or event scheduler
Aux preamp outputs, and fault condition logic outputs
Optional Cobranet or Dante network audio and AES3 digital audio input with pass-through
Dynamics, gain, equalization, FIR filter ready, 2 x 4 or 4 x 4 matrix mixer, crossover, delay, metering, and signal generator functions for test and noise masking applications
Precision swept load impedance monitoring of each amplifier channel for quick and easy diagnosis of sound system problems remotely via Ethernet
Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
Neutrik powerCON detachable AC mains connector
Made in USA
SPECIFICATIONS:
Input Source
Protea DSP Options: Analog, auto (net, AES3, analog)
Limiter
Brick Wall Limiter: Threshold: -20 to 20 dBu
Ratio: Infinite
Attack: 0.2 to 50 ms/dB
Release: 5 to 1000 ms/dB
Control
Advanced Gate Controls
Key Engage Enable
Key Frequency: 20 Hz to 20 kHz
Key Bandwidth: 0.016 to 3.995 octave
Gain
Gain (with / without VCA): -50 to 12 dB, off, polarity invert
Digital VCA Groups: 4 available
Remote RD8C Gain: Enable per channel, 0 dB to -∞
WR-5 (neWR-5) Remote Gain: 0 to -50 dB, mute
EQ Type
For 31-Band
Filter Type: Constant Q or proportional
Bandwidth: 0.499 octave to 0.25 octave
For Parametric 2,4,6, or 10 Band
Frequency: 20 to 20 kHz
Level: -30 to 15 dB
Q Value: 0.016 to 3.995 octave
For Hi / Low Shelf 6 / 12 dB/octave
Frequency: 20 Hz to 20 kHz
Level: -15 to 15 dB
For All Pass
Frequency: 20 Hz to 20 kHz
For Variable Q HP / LP
Frequency: 20 Hz to 20 kHz
Q Value: 3.047 to 0.267
For Notch / Bandpass
Frequency: 20 Hz to 20 kHz
Q Value: 92.436 to 0.267
Feedback Suppressor (48 kHz Sampling Rate)
12 x filters
In/Out per filter
Lock (per filter) and global lock
Filter Modes: Float, restricted, manual
Filter Type: Notch, parametric
Filter Frequency Range: 20 Hz to 20 kHz
Notch Filter: -∞
Parametric Filter: 15 to -30 dB
Filter Bandwidth 0.016 to 3.995 Octave
Detector Sensitivity: 5 levels
Float Time 5 minutes to 24 hours
Filter
FIR Filter: .fir or .csv file types
Crossover
2-Way, 3-Way, 4-Way Crossover & High Pass / Low Pass Filters
Bessel & Butterworth Filters: 12 / 18 / 24 / 48 dB/octave
Linkwitz-Riley Filter: 12 / 24 / 48 dB / octave
Frequency: Off, 20 Hz to 20 kHz
Delay
Sampling Rate: At 48 kHz (Input Time, Distance & Temperature)
Speaker Delay: 0 to 21 ms
Delay: 0 to 682 ms
At 96 kHz (Input Time, Distance & Temperature)
Speaker Delay: 0 to 10.6 ms
Delay: 0 to 341 ms
Audio Metering
Range: -60 to 20 dBu
Increments: 1 dB
Peak Hold Indicator
Signal Generator
Pink Noise, White Noise, Sine Wave
Signal Level: Off, -50 to 20 dBu
Sine Wave Frequency: 20 Hz to 12 kHz
Processor
Input A/D, Output D/A: 24-bit
DSP Processors: 32-bit floating point
Sample Rates: 48 kHz, 96 kHz
Propagation Delay @ 48 kHz: 1.42 ms
Propagation Delay @ 96 kHz: 0.71 ms
Mixer
Gain (0.5 dB Increments): Off, -50 to 12dB
Mute: Per channel
Auto-mixer Enabled: Per channel
Global Auto-mixer Response: 0.01 to 2 sec
Enable Ducking at Mixer
Ducking LED: Per channel if enabled
Metering: Level, auto-mixer level
Compressor
Threshold
-20 to 20 dBu
Ratio
1.2:1 to infinite
Attack
0.2 to 50 ms
Release
5 to 1000 ms/dB
Detectors
Peak / average
Attenuation
2 available
Metering
In, out, attenuation, graphical
Auto Leveler Controls
Level
Target Level: -40 to 20 dBu
Action Type
Gentle, normal, aggressive, user defined
Maximum Gain
0 to 22 dB
Metering
Input, gain, attenuation
Ratio
1.2:1 to 10:1
Threshold
-30 to 0 dB
Gain
5 to 1000 ms/dB
Hold
0 to 6 seconds
Ambient Noise Compensation
Output Gain
Maximum: -20 to 20 dB
Minimum Base: -40 to 20 dB
Gain Adjustment Range
0.2 to 20 s/dB
Groups
Link Groups: 16 available
Input Channels
ANC: 1 to 2
Threshold Range
Output Noise: -40 to 20 dBu
Ratio
Program/Ambient Gain: 0.3:1 to 3:1
Metering
Input level, attenuation, average noise
Ducking
Trigger Threshold: -80 to 20 dBu
Ducking Release: 5 to 1000 ms/dB
Ducking Depth: 0 to -30 dB, -∞
Enable Ducking at Matrix Mixer
Metering: Input
Gate
Threshold
-80 to 20 dBu
Range
Off, 100 to 0 dB
Attack
0.2 to 50 ms/dB
Release
5 to 1000 ms/dB
Metering
Key signal, gate LED, graphical
Power Requirements
Power
At 50 Hz
Nominal (Automatic Sensing SMPS): 120 VAC
Operating Range: 70 to 135 VAC
Minimum Power-Up: 85 VAC
At 60 Hz
Nominal (Automatic Sensing SMPS): 240 VAC
Operating Range: 140 to 270 VAC
Minimum Power-Up: 170 VAC
Connector
Power Cable Connector: 20 A powerCON
Maximum Output Power
Per Channel, Low-Z Output, All Channels Driven
2/4/8 Ω: 800 W
Output
Low Z Output, Bridge Mode, All Channels Driven: 1600 W (4/8 Ω)
70 V, 100 V Output, All Channels Driven: 800 W (70/100 V (per channel)
Power Draw
Sleep Mode: < 1 W
Standby Mode: 25 W
Idle (No Signal): 40 W
Current Draw
For 120 VAC
Sleep Mode: 0.1 A
Standby Mode: 0.38 A
Idle (No Signal): 0.70 A
For 240 VAC
Sleep Mode: 0.05 A
Standby Mode: 0.19 A
Idle (No Signal): 0.35 A
Maximum, All Channels Driven, Typical Input
1/8 Max Power @ 2 Ω): 4.6 A for 120 VAC, 2.3 A for 240 VAC
Dissipation
Thermal Dissipation: Sleep Mode: <3.4 BTU/hr
Standby Mode: 85 BTU/hr
Idle (no signal): 136 BTU/hr
Typical (1 / 8 Max Power @ 2 Ω): 495 BTU/hr
LED Indicators
Front Panel LED Indicators
White: Power Switch: On, off, standby (flashing)
Red LED:
Clip / Mute Per Channel: Clip @ 1 dB below full output / mute
Protect: On (fault condition or shut down), Off
Green LED:
Signal Per Channel: -18 dBu, below rated output
Bridge Per Channel Pair: On, off
Com: On, for Ethernet data or device ID
Current Per Channel: Proportional to output
Yellow LED:
Temperature Per Channel: On dim at 90% maximum operating temperature, full bright + protect at 100%
Sleep: On, amplifier is asleep from audio inactivity
Disable: On, power switch & front panel attenuators are disabled
General
Voltage Gain
Selectable at 26, 32, or 38 dB, and 1.4 V
Damping Factor
>250 (8 Ω load <1 kHz)
Filter
Input High Pass Filter: 80 Hz 2nd order
Distortion
<0.5% SMPTE, typical
<0.5% THD-N, typical (8 Ω, 10 dB below rated power, 20 Hz to 20 kHz)
Channel Separation
-75 dB (dB from full output, 1 kHz)
Signal / Noise
20 Hz to 20 kHz, un-weighted: >108 dB
Frequency Response
20 Hz to 20 kHz, ±0.05 dB
Connector
Balanced Input Connector: Euroblock 3.5 mm, 1/4" TRS and XLR combo jack
Input Impedance
10 kΩ
Maximum Input Level
21 dBu
Speaker Output
Connector: Neutrik & speakON
Network
Control Network: Compatible with standard 100 MB Ethernet
AUX Outputs
Connector: Balanced Euroblock 3.5 mm
Maximum Output Level: 21 dBu
Contact Closure
Remote Standby: Euroblock 3.5 mm, close contact to GND for standby mode
Preset Recall: Euroblock 3.5 mm, close contact to GND for preset 1-4 recall
Data
Data Connection: Euroblock 3.5 mm - Gnd, 18 V, in, out
Outputs
Fault Condition Logic Outputs: 4 x 3.5 mm Euroblock
Level Control
Remote DC: 4 x 3.5 mm Euroblock - Gnd, CV, V+ per input
Attenuation
Front panel, software, offset link group, and remote per channel
Fully off = mute
Protection Circuits
Inrush current limitation, temperature monitoring, output over-power protection, and mains fuses
Cooling
Continuously variable temperature controlled axial fans
Environmental
Non-condensing 32 to 113°F (0 to 45°C)
Dimensions
19.0 x 3.5 x 16.8" (48.3 x 8.9 x 42.8 cm)
Weight
28.7 lb (13.1 kg)
Packaging Info
Package Weight
29 lb
