B-52 Matrix 2600 (B52 MATRIX1200)
Bringing Ultra-Compact Speaker Systems so a TOTALLY new level!

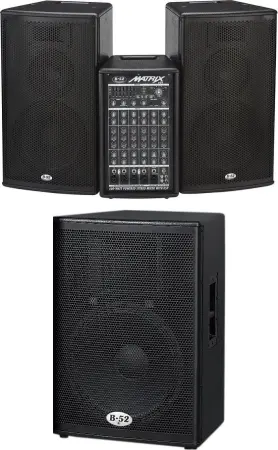

Introducing the B-52 MATRIX 1200 Powered 4-Way 1300 Watt RMS Speaker
System
This Package Includes:
(2) 300 Watt RMS 10" 3-Way Speakers
For crystal clear mids and highs
(1) 600 Watt RMS Stereo Powered Mixer/Amplifier
For Mic & Line inputs and to power the two Speakers
(1) 700 Watt RMS 18" Powered Subwoofer
Bring for the large events to bring down the house....leave it at home for
the small events
This is the PERFECT system for a mobile DJ or live performer. It is as
flexible as you have to be. Bring the full system for larger wedding and parties
to really make the music thump while still delivering an actual 4-Way crystal
clean sound. And for the small events that don't need hard-hitting bass, leave
the sub at home and be able to carry your complete speaker system in from the
car with one trip!
B-52 Matrix-2600 PA System Features:
- Master Controls
- 7-band master EQ section with slide potentiometers
- LED meters display left and right channel output power levels
- Conveniently located master level control with a large knob
- Level control for monitor output
Stereo Power Amplifier for Speakers
- Output stage with discrete, high current output devices - not integrated
IC amps
- Output power of 2 x 300W RMS with high headroom
- Very efficient cooling, utilizing a large heat sink and two direct-flow
fans with variable speed control for quiet operation
- Power supply with low-noise toroidal transformer and a dual voltage
(115/230Vac) selector switch
- Comprehensive amplifier and speaker protection circuitry to guard
against short circuits, DC offsets, over-heating, turn-on thumps, and
subsonic and supersonic frequencies.
- Built-in high quality stereo clip limiter
- Equalization customized to enhance and optimize speaker system
performance.
7-Channel Mixer Features
- Four channels (Ch. 1-4) with balanced, combo 1/4" & XLR mic inputs &
balanced 1/4" jack line level inputs
- 48V/DC phantom power on balanced combo 1/4" & XLR inputs for condenser
microphones
- Phantom power can be switched on/off separately on two pairs of inputs
- The phantom power on/off switches are securely recessed behind the front
panel to avoid accidentally switching them on/off
- PAN, 3-band EQ, monitor level and effect level controls on each channel
- Stereo input channel (Ch. 5) with high impedance 1/4" stereo input can
also be used for mono acoustical instruments with a pick-up or as an extra
mic using the combo 1/4" & XLR connector
- Stereo 1/4" input with a high |Z| input impedance to connect variety of
stereo sources
- Combo 1/4" & XLR inputs to connect either mono acoustic instrument with
a pick-up via the 1/4" TRS connector or low impedance dynamic mic via the
XLR connector
- Pan/Balance, 3-band EQ, monitor level and effect level controls
- Stereo input channel (Ch. 6) for stereo sources
- Dual stereo inputs with 1/4" TRS and 3.5mm mini-jack to connect any
2-channel source
- 3-band EQ, monitor level and effect level controls
- House input with stereo RCA connectors and a dedicated level control
- This input is located within the Ch. 6 section but is, in fact, a
totally separate 7th input for a stereo house source such as a CD player
Loudspeakers
- 3-way rear-ported speakers substantially outperform traditional 2-way
designs in virtually every application
- 10" high excursion woofer for extended and tight bass
- 6.5" midrange with oversized magnet for clarity and wide coverage area
- 1" exit phenolic tweeter on an exponential horn matches the acoustic
response of 6.5" midrange driver
- Premium quality crossovers with air core inductors and Mylar capacitors
for clean and unrestricted SPL peaks
- Light bulb protection circuitry on the tweeters for worry-free operation
- Built in suspension points for permanent installation
- 16-guage steel grilles, rubber feet and a conveniently located top
handle
Subwoofer
700W RMS Sub with 18" Woofer
Self contained system - Use with or without the Speakers & Amp
Class G Amplifier
Maximum peak SPL 129 dB
LF Magnet Weight 100 oz
18" cast framed subwoofer with 3" voice coil
Included Accessories
Two 20' speaker cables (with 1/4" plugs)
Two speaker covers
One mixer/amplifier carrying bag
