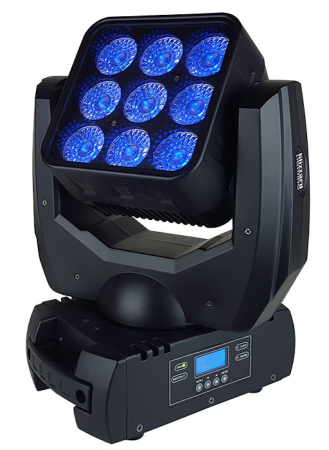

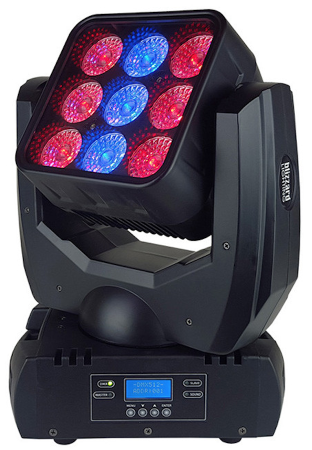

Blizzard Lighting Blockhead Z9

Looking for a fixture that will really grab some attention? Check out Blockhead™ Z9, it's a real head turner!


Blockhead™ Z9 fixtures are a 3x3 LED pixel moving head that is fully equipped to put on a high energy light show due to its highly efficient, high output 9* 15W RGBW 4-in-1 Gaggione™ LEDs with 10-50 degree motorized zoom. Add in 540/360°pan/tilt + lightning fast infinite pan/tilt capabilities to put on a mind-blowing motion filled display of vivid colored beams plus excellent shades of white.

It is a pixel mapping fixture that allows individual RGBW color mixing with an endless range of color variations, and gives users the ability to create all kinds of graphic images that change dynamically both in shape and color, plus create awesome split colored beams!

But is it user friendly? You bet! All of its features, including auto mode, sound active, pan/tilt, infinite pan/tilt, multiple strobe effects, master dimmer, and zoom (focus) can be easily accessed by using its 4-button LCD control panel, or directly via 50/22/16-channel DMX modes.

Its power input connection is industry standard PowerCON® compatible, and DMX 3-pin In/Out jacks + a single clamp mounting bracket round out the many professional features you’ll find in this incredible led matrix moving head fixture!

And of course, the Blockhead™ Z9 is backed by Blizzard’s 2-year warranty.



Main Features

• 3x3 LED Pixel Matrix Moving Head
• Light Source: 9* 15W RGBW 4-in-1 LEDs
• Pan: 540° Tilt: 360° + Infinite Pan/Tilt
• High-efficiency Gaggione™ Optical System
• Electronic Focus
• Extremely Accurate 16-bit Motors
• Built-In Auto & Sound Active Programs
• 16/22/50-channel DMX Modes
• 4-button LED control panel menu
• Single 1/4-turn mounting bracket

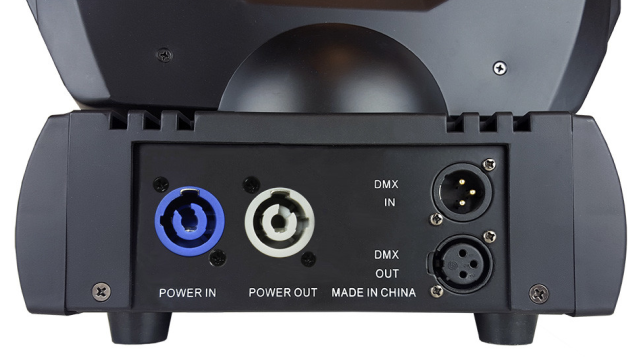

• 3-pin male and female DMX In/Out
• PowerCon™ compatible AC power input/output connectors

Specifications:

Power
Operating Voltage: 90-240VAC, 50-60Hz
Power Consumption: 180W
Light Source
9* 15W RGBW 4-in-1 LEDs

Optical
Beam Angle: 10-50° beam angle
Luminous Intensity: Narrow - 17,431 Lux @ 2M, 2,660 Lux @ 5M | Wide - 1,239 Lux @ 2M, 189 Lux @ 5M

Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient

Control
Protocol: USITT DMX-512
DMX Channels: 16/22/50-channel DMX
Input: 3-pin XLR Male
Output: 3-pin XLR Female
Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

Weight & Dimensions
Width: 10.9 inches (276 mm)
Depth: 6.2 inches (156 mm)
Height: 14 inches (355 mm)
Weight: 14 lbs (6 kg)

Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs.

Blizzard Block head z9 (Blizzard Lighting blockheadz9)
