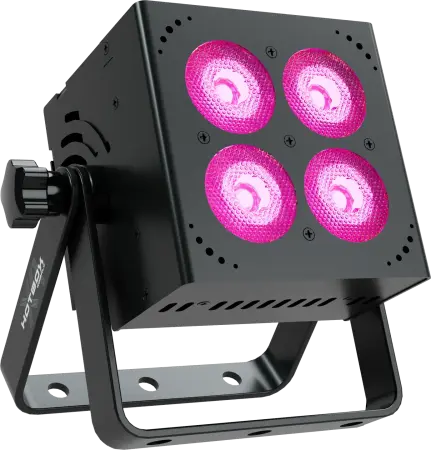

Compact RGBALC Wash Light for Truss Warming and Stage Lighting
Blizzard Pro HotBox X4 RGBALC is a powerful yet portable LED wash light featuring RGBALC (Red, Green, Blue, Amber, Lime, Cyan) color mixing and advanced DMX control. Designed to fit inside standard-sized box trusses, this compact fixture delivers vibrant color output, smooth fades, and strobe effects, making it ideal for truss warming, stage setups, and other indoor lighting applications.
Blizzard Pro HotBox X4 RGBALC Competitive Differences
- Equipped with 4x 20W RGBALC 6-in-1 LEDs for full spectrum color mixing
- Compact and durable metal housing weighs only 4.25 lbs
- 25° beam angle ideal for truss warming and stage wash applications
- Flicker-free operation with adjustable PWM for video and broadcast
- Built-in color macros, chase effects, and automated programs via DMX or standalone mode
- Supports RDM protocol for advanced remote configuration
- PowerCON® TRUE1™ compatible in/out connectors for secure power linking
Blizzard Pro HotBox X4 RGBALC Description
The
HotBox X4 RGBALC stands out as Blizzard Pro’s most advanced HotBox model to date. It combines vibrant RGBALC color mixing and a compact form factor, making it a favorite for lighting professionals needing powerful performance in a small package. Whether rigged overhead or placed inside a truss, it delivers high-output washes with consistent results.
The unit features a 25° beam angle, allowing for a wide and even spread of light. A flicker-free LED driver makes it suitable for use in video and broadcast environments, and the fixture also features adjustable PWM and 32-bit dimming for ultimate control. Navigating settings is easy with the user-friendly 4-button OLED menu, and installation flexibility is ensured with dual mounting brackets.
HotBox X4 RGBALC also includes built-in DMX color and chase macros, as well as multiple DMX profiles (6/8/12 channels), making it a versatile solution for small events or complex light shows.
HotBox X4 RGBALC Features
- RGBALC 6-in-1 full-color mixing (Red, Green, Blue, Amber, Lime, Cyan)
- 4x 20W high-output LEDs
- 25° beam angle
- Flicker-free constant current LED driver
- 32-bit dimming with variable dimming curves
- Adjustable PWM for video-friendly output
- OLED display with 4-button control menu
- Built-in color and chase macros via DMX
- Automated programs for standalone or master/slave operation
- DMX512, RDM, Auto Mode, Standalone, and Master/Slave compatible
- Dual mounting brackets for flexible positioning
- PowerCON® TRUE1™ compatible in/out connectors
- 5-pin XLR DMX input/output
HotBox X4 RGBALC Specifications
- Light Source: 4x 20W RGBALC (6-in-1) LEDs
- Beam Angle: 25°
- Control Protocols: DMX-512, RDM
- DMX Modes: 6 / 8 / 12 channels
- Power Consumption: 67W
- Input Voltage: 100-240VAC, 50/60Hz
- Power Factor: 0.6
- Current Draw: 0.95A
- Luminous Intensity:
- 5,563 Lux @ 2m (6.6 ft)
- 2,379 Lux @ 3m (9.8 ft)
- 1,319 Lux @ 4m (13.1 ft)
- 820 Lux @ 5m (16.4 ft)
- Unit Weight: 4.25 lbs (1.93 kg)
Blizzard HotBox X-4 RGBALC
(Blizzard Lighting Hot Box RGBALC X4)
