Blizzard Lighting Puck Q12A
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
JOIN THE QVOLUTION!

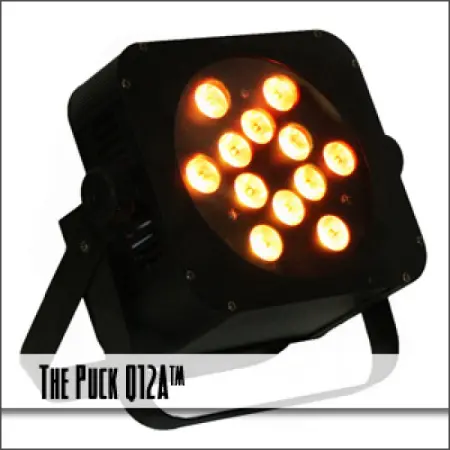

Blizzard Lighting’s Puck Q12A Flat LED PAR can features 12
state-of-the-art 10-Watt Quad-Color RGBA (Red/Green/Blue/Amber) LED's which
offer extreme output and exceptional color mixing, even with hard to duplicate
amber/orange shades.
Using the newest in LED technology, the Puckâ„¢ Q12A Flat LED PAR can brings all
that you’ve come to appreciate about the original Puck to a super affordable
Quad-Color fixture. Plus, it retains the DMX layout of the original Puck RGBA as
well as its input/output setup for easy interoperability! Even better, ALL
Blizzard Lighting Puckâ„¢ fixtures are linkable in Sound Active/Auto/Master/Slave
Modes!
An LED control panel and power daisy chain connectors make it flexible and
perfect for uplighting, concerts, truss warming and virtually anywhere you need
lots of color for not alotta green!
The Puckâ„¢ Q12A features 4 and 7-channel control modes which means it works great
with any type of controller, including popular 4-channel easy controllers. Plus,
the built-in 4 character/4 button LED control panel allows total control over
the fixture, including sound active and standalone modes, display invert and
service hour readout.
So quit questioning and end your quest. Quench your thirst for quality
quad-color illumination with Blizzard Lighting’s Puck™ Q12A Flat LED PAR can!
• Superior RGBA Color Mixing via 12 x 10-watt RGBA quad-color LED's (4 x 2.5W
= 10W)
• Variable electronic strobe
• Variable electronic dimmer (0 – 100%)
• User selectable 4 (Red/Green/Blue/Amber dimming) or 7 DMX channels
• Built-in chase macros via DMX
• Full RGBA color mixing plus 15 built-in colors in Standalone, Master/Slave and
DMX modes.
• Linkable with all other Blizzard Lighting Puck™ Flat LED PAR Cans in
standalone/Master/Slave modes
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• Easy to use LED control panel
• Running hours display
• Rugged all-metal case with dual mounting yokes
• IEC power in and daisy chain connections to connect additional units
• Power and DMX connections and LED control panel are all in places which means
you can truly use The Puck Q12A in ANY position, including flat on the floor!
• Two-piece mounting yoke allows flexibility in positioning
• Beam Angle: 25°, Field Angle: 29°
• Lux: 9,770 @ 1m
• Light source: 12 x 10W LEDs, 60,000 hrs
• Power and current: 120 V, 60 Hz; 56 W, 0.47 A (operating), 0.48 A (inrush) 230
V, 50 Hz; 56 W, 0.24 A (operating), 0.24 A (inrush)
• AC power: Auto-ranging 100 V ~ 240 V 50/60 Hz
• Weight: 4.2lbs/ 1.9kg
• Size: 8.25 x 7.5 x 3.75 in / 210 x 190 x 95.25 mm
I bought four of these. They are very bright, and the addition of the amber element makes the color range much better. It produces a very decent yellow, and the white (all on) actually looks white. I use them a lot to spot lead singers and guitarists when we do live sound applications. I also use them for dances. They are so bright that I have been leaving most of my old lights at home. These will light up a pretty big area. I had one light that arrived with a problem with the blue led elements. I haven't taken care of that yet with Blizzard, but otherwise I love this fixture.
