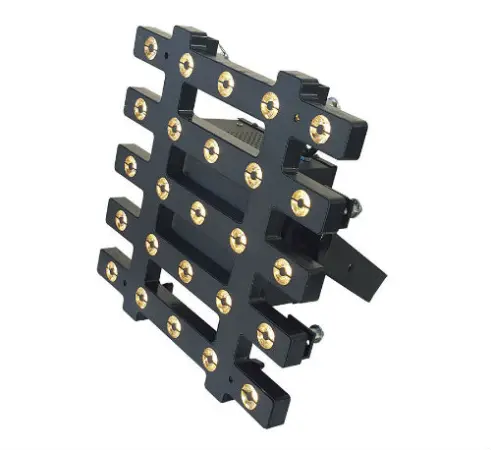

Blizzard Lighting SolarRay
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
SolarRayâ„¢
Ultra Bright Warm White
5x5 Pixel Matrix Blinder
Meet the SolarRay
FEATURES:
25* high efficiency 3-Watt Edison LEDs
Projects intense narrow beams of 2,800k warm white light
Flexible panel system with integrated locks
Easy configuration and setup via built-in LCD control panel
Individual pixel control in 25-channel DMX mode
29 built-in programs + auto run with speed adjustment
Kling-Net/Art-Net support allows auto-configuration over Ethernet
8° beam angle, pitch: 60 mm
DMX Channels: 6/25
Strobe Rate: 0-20 Hz
Strong cast aluminum housing
Internal Protection: IP20
Smooth dimming curve with flicker-free operation (400Hz)
High-performance fanless convection cooling
Mounting bracket with dual locking knobs & ¼ turn quick clamp bracket
2x RJ45 Ethernet in/out data connections
3-pin DMX input/output
PowerConâ„¢ compatible AC power in/out connectors
TECH SPECIFICATIONS:
Weight & Dimensions
Width: 11.8 inches (300 mm)
Depth: 3.8 inches (96 mm)
Height: 11.8 inches (300 mm)
Weight: 8.9 lb. (4 kg)
Power
Operating Voltage: 100-240VAC, 50-60 Hertz
Power Consumption: 75W, 1.02A, PF: .61
Light Source: LED 25* 3-Watt Edison 2,800k Warm White LEDs
Optical
Beam Angle: 8 degree
Luminous Intensity: 13,500 Lux @ 1m, 5,120 Lux @ 2m
Pixels: 5 x 5
Pixel Pitch: 60mm
Thermal
Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control
Protocol: Art-Netâ„¢, Kling-Net, USITT DMX-512
DMX Channels: 6/25-Channels
Input/Output: 3-pin XLR Male/Female
Other Operating Modes: Standalone, Master/Slave, Auto, Sound Active
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs.
DISCLAIMER:
The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.
