This product has been discontinued by the manufacturer. Please contact us to find a replacement.

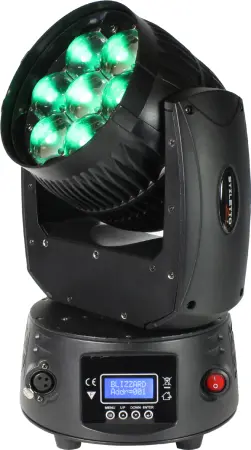

The Stiletto Z7 from Blizzard Lighting is a versatile beam/wash fixture equipped with 7 x 15W 4-in-1 RGBW OSRAM LEDs and motorized lens plate that effortlessly zooms from a knife-edged 7° to a 50° beam angle.
Stiletto Z7 fixtures are fitted with 7 plano-convex lenses in a highly efficient collimator cluster. This type of lens can act as a strong magnifying glass. If the rays from a strong light source (such as the sun or another lighting fixture) are directed towards the front of this fixture, internal damage is possible.
Features
• 7x 15-watt OSRAM 4-in-1 RGBW LEDs
• Motorized linear zoom system, ratio 7:1 Beam aperture 7°-50°
• Pan: 540° / Tilt: 270°
• Extreme accurate motors with 16-bit resolution
• User selectable 12/15-channel DMX modes
• Flicker-free, source management, suitable for TV applications & video recording
• High-efficiency optical system
• 3-pin male/female input and outputs
• AC power input connector
Tech Specs
• Width Base only: 6.5 inches (165.5 mm)
• Depth 8.8 inches (224 mm)
• Height 12.7 inches (323 mm)
• Weight 12.1 lbs (5.5 kg)
- Power
• Operating Voltage 110-240VAC 50/60Hz (autoranging)
• Power Consumption 109w, 1.49A, pf: .61
• Fuse 5A, 250V micro-fuse
- Light Source
• LED 7 x 15w 4-in-1 RGBW LEDs
- Movement Range
• Pan: 540 degrees
• Tilt: 270 degrees
- Thermal
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
- Control
• Protocol: USITT DMX-512
• DMX Channels: 15/12-channels
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
