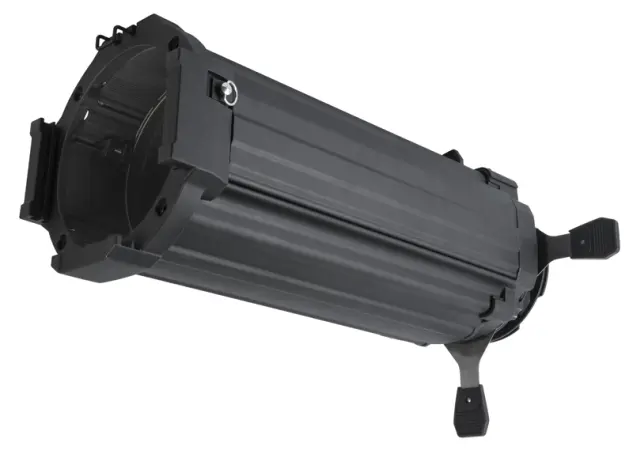

Ovation sturdy lens tubes fit the Ovation E-190 ellipsoidal style spotlights as well as other standard ERS units. Ovation lens tubes are made of high quality optical glass and are designed to survive the rigors of touring, broadcast, and theatrical production. Each lens tube comes with an industry standard 6.25-inch or 7.5-inch gel frame.
Features
• Variable focal length lens tube for the Ovation™ E-Series fixtures
• Independent adjustment for beam angle and focal point
• Dual aspheric lenses provide precise focus for crisp gobo projection
• Integrated gel frame holder and gel frame included
• Includes replacement fixture yoke for better balance and more positioning support
Specifications
• Accessory Holder/Gel Frame Size: 7.5 in (159 mm)
• Installed Optics: 15°–30°
• IP Rating: IP20, dry location
• Weight: 14 lb (6.35 kg)
• Dimensions: 9.4 x 8.5 x 20.6 in (239 x 215 x 523 mm)
