Powered Horn-Loaded Subwoofer
The

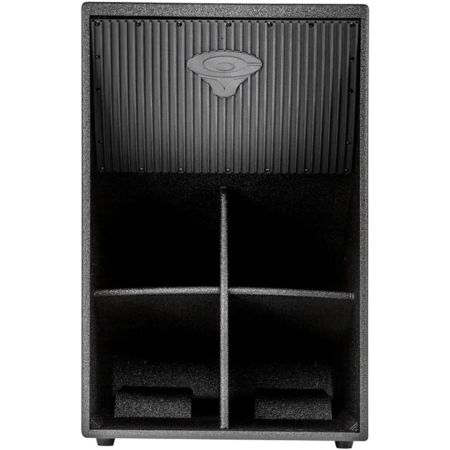

Cerwin Vega EL-36DP is a high-output, 18-inch powered folded horn subwoofer built to deliver seismic bass performance for live sound professionals. Designed for maximum efficiency and deep frequency extension, this Earthquake™ Series sub is powered by a built-in 2000W Class-D amplifier, producing up to 136 dB of powerful low-end energy. Ideal for concert stages, touring setups, and outdoor events, the EL-36DP combines punchy performance with road-ready durability.
Cerwin Vega EL-36DP Competitive Differences
- 2000W Class-D amplifier for deep, tight bass
- Horn-loaded design delivers 136 dB SPL
- TourShield™ coating protects cabinet from wear and tear
- Selectable crossover with XLR inputs/outputs for seamless integration
Cerwin Vega EL-36DP Description
The
Cerwin Vega EL-36DP is engineered to redefine what's possible with portable low-end reinforcement. Its folded horn design maximizes projection while minimizing physical footprint, giving it superior throw and impact over traditional front-loaded subs. The integrated Class-D amplifier produces up to 2000 watts of peak power, driving the massive 18-inch woofer with accuracy and efficiency.
Thanks to its extended low-frequency response down to 37 Hz, the EL-36DP brings chest-thumping bass to any event. Whether you're filling a concert hall or energizing an outdoor crowd, this subwoofer delivers deep, controlled lows with surgical precision. The rugged enclosure is wrapped in Cerwin Vega’s signature TourShield™ coating, offering resistance against scuffs, scratches, and the rigors of transport.
XLR and combo inputs make integration easy, while a selectable crossover lets you fine-tune system performance based on your setup. With Cerwin Vega’s decades-long legacy of live sound dominance, the EL-36DP is the ideal choice for professionals who demand clarity, output, and build quality in one package.
Model Features
- 18” low-frequency driver in a folded horn design
- 2000W peak Class-D amplifier
- Built-in crossover for tuning and flexibility
- Combo 1/4" TRS/XLR inputs and XLR outputs
- TourShield™ protective coating for rugged durability
- Engineered for high-output touring and event use
Model Specifications
- Power Output: 2000W Peak
- Frequency Response (±3 dB): 44Hz–336Hz
- Frequency Range (+3/–10 dB): 37Hz–673Hz
- Max SPL @ 1m: 136 dB
- LF Driver: 18” Woofer
- Connectors: Combo (1/4” TRS/XLR) inputs, XLR outputs
- Enclosure: 18mm plywood with TourShield™ finish
- Dimensions: 26 x 38 x 39 in (66 x 96.5 x 99 cm)
- Net Weight: 172 lb (78 kg)
- Gross Weight: 188.4 lb (85.5 kg)
What’s In The Box
- Cerwin Vega EL-36DP Subwoofer
- Power Cord
- Quick Start Guide
Cerwin-Vega EL-36DP
(Cerwin Vega EL36DP)
