The Chauvet DJ 4Bar ILS & Kinta Bundle with Command is a comprehensive lighting package designed for versatile and vibrant lighting setups suitable for DJs, bands, clubs, and events. This bundle includes essential lighting fixtures and control devices to create dynamic lighting effects and atmospheres.
Chauvet DJ Mini Kinta ILS:
Compact LED effect light with automated programs and sound-activated operation.
Integrated lighting stand compatibility for easy setup and positioning.
Connectivity options for wireless control via the included D-Fi USB transceivers.

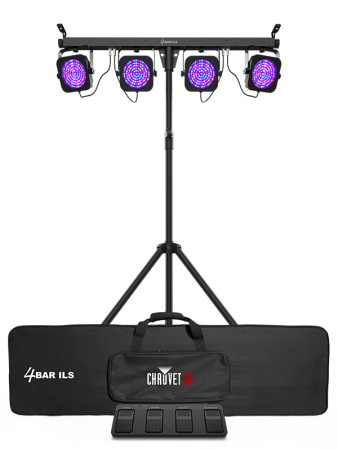

Chauvet DJ 4BAR ILS:
Complete wash lighting solution with four adjustable LED par fixtures.
Integrated ILS (Intelligent Lighting System) for seamless automated and custom control.
Included tripod and footswitch for quick setup and on-the-fly control.
Chauvet DJ D-Fi USB (4 Pack):
Wireless DMX transceivers for connecting compatible lights without cables.
Compact and easy-to-use design for hassle-free setup and operation.
Enables wireless control of lighting fixtures within a reliable range.
Chauvet DJ ILS Command:
Centralized lighting control console for managing various lighting effects.
Compatible with ILS-enabled Chauvet DJ fixtures for unified control.
Intuitive interface with presets, scenes, and manual control options.
Features and Benefits:
Versatile Lighting Effects: Create a wide range of effects including washes, strobes, and dynamic patterns.
Ease of Use: Quick setup and operation with included stands, footswitches, and wireless control options.
Expandability: Integration with additional Chauvet DJ fixtures and accessories for scalable setups.
Portable and Professional: Suitable for mobile DJs, small to medium-sized venues, and event applications.
Integrated Control: Utilize the ILS system for synchronized and automated lighting shows.
Ideal Applications:
Live Performances: Enhance stage presence with dynamic lighting effects.
Events and Parties: Create immersive atmospheres and dance floor ambiance.
Mobile DJs: Portable setup for weddings, parties, and corporate events.
Clubs and Bars: Reliable and versatile lighting for regular use.
The Chauvet DJ 4Bar ILS & Kinta Bundle with Command offers a comprehensive solution for professional lighting needs, combining quality fixtures with intuitive control options. Whether for live performances, events, or mobile DJ setups, this bundle ensures flexible, vibrant, and easy-to-manage lighting effects.
SPECIFICATIONS:
Chauvet DJ Mini Kinta ILS:
DMX Channels: 4 or 8
DMX Connectors: 3-pin XLR
Light Source: 4 LEDs (1 red, 1 green, 1 blue, 1 white) 3 W, (980 mA), 50,000 hours life expectancy
Coverage Angle: 135°
Power Linking: 33 units @ 120 V; 54 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
19 W, 0.3 A @ 120 V, 60 Hz
18 W, 0.2 A @ 230 V, 50 Hz
Weight: 3.6 lb (1.7 kg)
Size: 7.5 x 10.1 x 7.2 in (190 x 258 x 182 mm)
Approvals: CE, RoHS, UKCA
Optional Controllers: IRC6
Chauvet DJ 4BAR ILS:
DMX Channels:3, 5 or 15
DMX Connectors:3-pin XLR
Light Source:432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy.
Strobe Rate:0 to 19.9 Hz
Beam Angle:17°
Field Angle:24°
Illuminance:786 lux @ 2 m (per pod)
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
29 W, 0.4 A @ 120 V, 60 Hz
27 W, 0.2 A @ 230 V, 50 Hz
Weight:11 lb (5.0 kg)
Size:43.3 x 2 x 10.5 in (1,100 x 50 x 267 mm)
Approvals:CE, RoHS, UKCA
Stand Height: 7 ft 4 in (2.2 m)
Fits Tripod Sizes: 1.37 in (35 mm)
Weight (Controller): 1.2 lb (0.6 kg)
Size (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
Optional Controllers: IRC-6, D-Fi USB
Chauvet DJ ILS Command:
ILS Connectors: 3-pin XLR
Programmable Presets: 6
Operating Frequency: 2.412–2.484 GHz
Cable Length: 20"
Max Unobstructed Distance: 600'
Input Voltage (USB-C): 5V, 1A
Weight: 3.6 lb.
Size: 12.3" x 9.9" x .7"
Approvals: CE, UKCA, RoHS, FCC
