Hex-Color LED Strip Light with Zonal Control
The

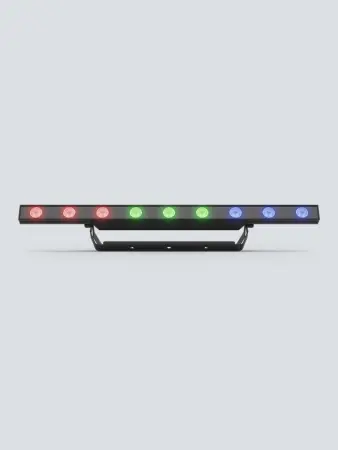

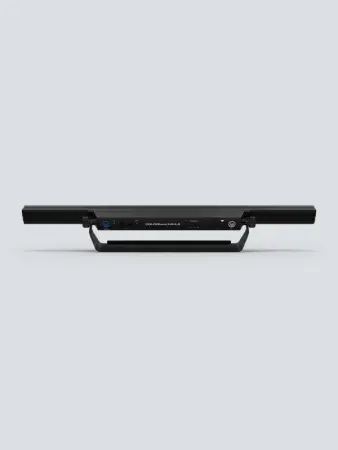

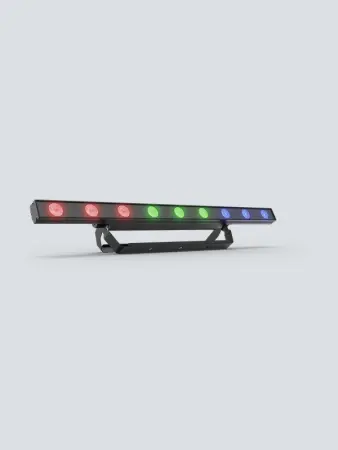

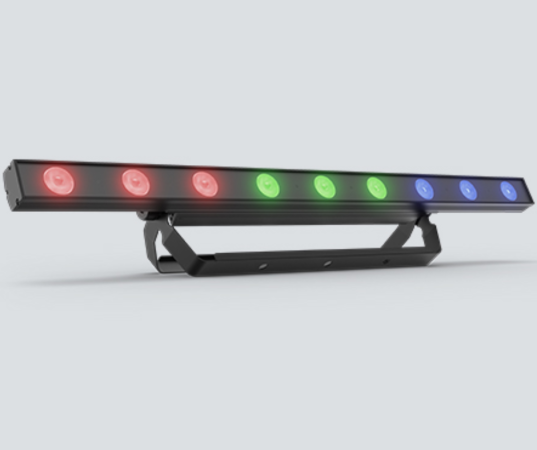

Chauvet DJ COLORband H9 ILS is a powerful, full-size LED strip light designed for immersive chase effects, bold washes, and stunning blinder looks. Featuring 9 hex-color (RGBWA+UV) LEDs and 3 zones of individual control, this versatile fixture is ideal for DJs, venues, and production professionals seeking dynamic, color-rich lighting.
Chauvet DJ COLORband H9 ILS Competitive Differences
- 3-zone pixel control for advanced chase and animation effects
- Built-in RF receiver for remote control via RFC and RFC-XL
Chauvet DJ COLORband H9 ILS Description
The
COLORband H9 ILS brings advanced LED strip lighting to any setup, offering exceptional flexibility with multiple control options and ultra-smooth color rendering. With 6-in-1 HEX LEDs (RGBWA+UV), you can achieve everything from vibrant saturated colors to natural white tones and ultraviolet effects — all from a single fixture.
ILS compatibility makes it easy to coordinate shows across a variety of fixture types within the Chauvet ecosystem. For even more freedom, it supports wireless control via D-Fi USB (sold separately) and comes equipped with a built-in RF receiver, compatible with RFC and RFC-XL remotes. Whether you're using DMX, auto modes, or remote control, you’ll have access to a wide range of built-in programs and personalities to fit your programming style.
Silent operation with no moving parts makes the COLORband H9 ILS perfect for noise-sensitive environments like theaters and corporate events. Its rugged design and ease of transport (fits in the CHS-60 VIP gear bag) make it a reliable choice for mobile setups as well.
Model Features
- Full-size RGBWA+UV LED strip light with 3-zone pixel control
- ILS compatible for synchronized light shows across fixtures
- Built-in RF receiver works with optional RFC and RFC-XL remotes
- D-Fi USB support for wireless DMX and Master/Slave control
- Includes prebuilt programs for fast setup with or without DMX
- Multiple DMX channel modes (6 to 23) for flexible programming
- Silent, fan-free operation for quiet venues
Model Specifications
- DMX Channels: 6, 9, 11, 18, 23
- DMX Connectors: 3-pin and 5-pin XLR
- Light Source: 9 x 10W HEX LEDs (RGBWA+UV), 50,000-hour life
- Beam Angle: 23°
- Field Angle: 41°
- Illuminance: 3,529 lux @ 2 m
- Lumens: 2,977
- Strobe Rate: 0 to 16 Hz
- Power Linking: 12 units @ 120V, 21 units @ 230V
- Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 80W, 1.1A @ 120V | 79W, 0.6A @ 230V
- Dimensions: 39.4 x 2.2 x 6.8 in (1000 x 56 x 172 mm)
- Weight: 7.2 lb (3.3 kg)
- Certifications: CE, UKCA, RoHS, MET
What's In The Box
- COLORband H9 ILS fixture
- Power cord
- Hanging bracket
- Quick reference guide
Chauvet COLORband H9-ILS
(Chauvet DJ COLORbandH9 ILS)
