Outdoor-Rated Moving Head Spot

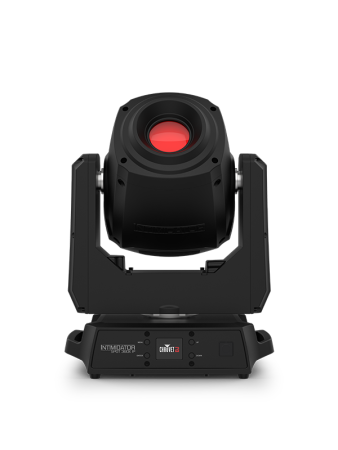

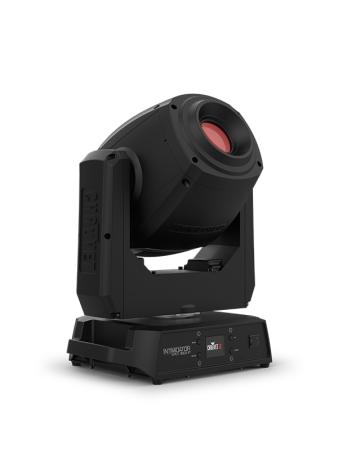

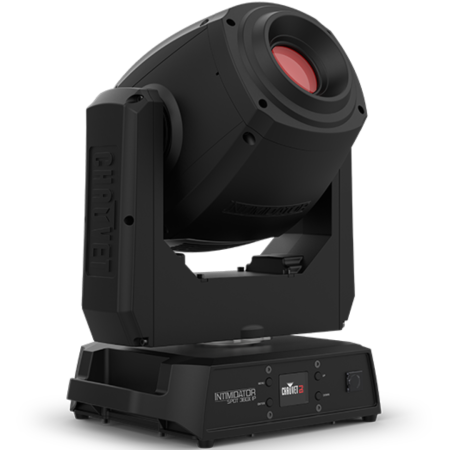

Chauvet DJ Intimidator Spot 360X IP is a high-output, IP65-rated moving head designed to handle harsh weather without sacrificing performance. Built for outdoor events, festivals, and rugged touring conditions, this powerful fixture offers crisp gobo projection, dual prisms, wireless RF control, and a durable, corrosion-resistant magnalium housing.
Chauvet DJ Intimidator Spot 360X IP Competitive Differences
- IP65 rating with water-resistant power I/O for all-weather use
- Dual rotating prisms and motorized focus for wide, sharp effects
Chauvet DJ Intimidator Spot 360X IP Description
The
Chauvet DJ Intimidator Spot 360X IP brings pro-grade moving head functionality to outdoor events, offering the flexibility and punch of a 100W LED light source in a rugged, IP65-certified enclosure. Designed to resist dust, rain, and extreme temperatures, it’s ideal for festivals, outdoor stages, installations, and mobile productions that demand reliability in unpredictable environments.
Featuring a beam angle of 15°, this unit projects up to 23,978 lux at 2 meters. The motorized focus ensures razor-sharp gobo projection at nearly any distance, while dual rotating prisms (3-facet round and 5-facet linear) add layered, sweeping effects that cover wide areas.
Built-in Totem mode keeps beams centered over the crowd, while the new home position avoids jarring movement on startup. With onboard RF receiver support, the fixture is compatible with Chauvet’s RFC and RFC-XL wireless remotes, offering fast, cable-free control. Setup is streamlined with power linking and single or dual clamp mounting via a ¼-turn hanging bracket.
An onboard full-color LCD lets users set, save, and recall scenes directly from the fixture, making it a versatile option for both DMX and manual operation.
Model Features
- IP65-rated for outdoor use
- 100W cool white LED with 15,000K color temperature
- Motorized focus for crisp gobos at any distance
- Dual rotating prisms: 3-facet round & 5-facet linear
- Totem mode keeps beams on the dance floor
- Built-in RF receiver for RFC/RFC-XL wireless remotes
- Water-resistant power input/output connectors
- Durable magnalium housing – strong, lightweight, and corrosion-resistant
- ¼-turn hanging bracket for flexible mounting
- Manual scene recall via full-color LCD screen
Model Specifications
- DMX Channels: 8 or 14
- Light Source: 1x 100W cool white LED (50,000 hrs)
- Beam Angle: 15°
- Color Wheel: 8 + white, split colors, scrolling
- Gobo Wheel: 7 + open (6 aluminum, 1 glass), rotating & interchangeable
- Prisms: 3-facet round & 5-facet linear, bidirectional
- Pan/Tilt: 540°/270°, with adjustable range
- Illuminance: 23,978 lux @ 2m | 3,836 lux @ 5m
- Lumens: 4268
- Strobe Rate: 0–20 Hz
- Color Temperature: 15,000 K
- Power and Current: 190W, 2.4A @ 120V | 185W, 1.4A @ 230V
- Power Linking: 5 units @ 120V | 9 units @ 230V
- Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
- IP Rating: IP65
- Operating Temp: -22°F to 113°F (-30°C to 45°C)
- Startup Temp: -4°F to 113°F (-20°C to 45°C)
- DMX Connectors: 3-pin XLR
- Dimensions: 11.8 x 8.5 x 15.9 in (299 x 217 x 406 mm)
- Weight: 23 lb (10.4 kg)
- Approvals: CE, MET, UKCA, RoHS
- Gobo Size: 24mm (outside), 20mm (image), 1.1mm (max thickness)
What's In The Box
- Main fixture
- Power cord
- Hanging bracket
- Quick reference guide
Chauvet INTIMSPOT360XIP
(Chauvet DJ Intimidator Spot 360X-IP)
