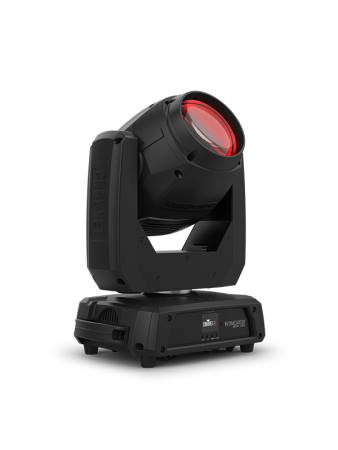

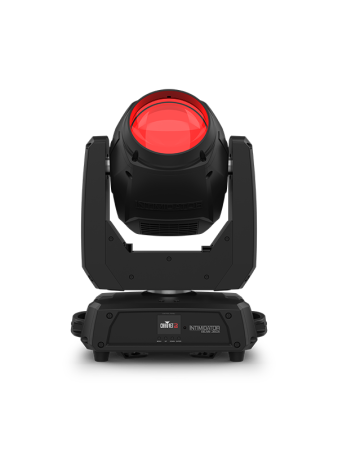

Compact 110W Moving Head Beam with RF Control
Chauvet DJ Intimidator Beam 360X is a powerful and compact LED moving head designed to deliver precision beam effects and fast movement at mobile events, weddings, clubs, and stages. With a 110-watt cool white LED, crisp gobos, and RF remote compatibility, it brings professional-grade lighting control without requiring a DMX setup.
Chauvet DJ Intimidator Beam 360X Competitive Differences
- Built-in RF receiver for wireless control using optional RFC or RFC-XL remotes
- Motorized focus and 16-facet prism for crisp, high-energy beam effects
Chauvet DJ Intimidator Beam 360X Description
The
Intimidator Beam 360X packs serious lighting power into a compact, mobile-friendly form factor. Driven by a 110W cool white LED, it projects razor-sharp 2° beams with exceptional brightness—533,551 lux at 2 meters. The onboard 16-facet rotating prism multiplies and intensifies effects, while a motorized focus ensures crystal-clear gobos at nearly any throw distance.
This fixture features a new improved home position for smoother programming transitions, and the built-in Totem mode ensures the beam stays directed at the dance floor, even during complex movement sequences. With 14 colors, 17 gobos, and variable-speed scrolling, the Beam 360X is a high-impact fixture for aerial effects and beam shows.
Users can control pan, tilt, color, gobo, prism, and more wirelessly with RFC or RFC-XL remotes—no DMX cabling required. Setup is made even faster with powerCON-compatible in/out connectors and single or dual clamp mounting options via a ¼-turn bracket.
Model Features
- 110W cool white LED with 2° beam angle
- RF control via optional RFC or RFC-XL remotes (no DMX required)
- Motorized focus and motorized frost filter for beam-to-wash flexibility
- 16-facet rotating prism for wide, multi-beam effects
- Improved home position for seamless show programming
- Built-in Totem mode keeps beams focused on dance floor
- 14 colors + white with split color and scrolling effects
- 17 metal gobos + open with scrolling
- PowerCON-compatible in/out for easy linking
- ¼-turn bracket for single or dual clamp mounting
Model Specifications
- DMX Channels: 8 or 14
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540° / 270° (with selectable 540°, 360°, 180° pan and 270°, 180°, 90° tilt ranges)
- Light Source: 1 x 110W LED (cool white), 50,000-hour life
- Beam Angle: 2°
- Strobe Rate: 0–20 Hz
- Color Wheel: 14 + white (split and scroll)
- Gobo Wheel: 17 + open (metal, scrollable)
- Prism: 16-facet round, bi-directional
- Color Temperature: 7500 K
- Illuminance: 533,551 lux @ 2 m; 85,368 lux @ 5 m
- Lumens: 2,770
- Power Linking: 9 units @ 120V; 15 units @ 230V
- Input Voltage: 100–240V AC, 50/60 Hz (auto-ranging)
- Power Consumption:
- 180W, 1.5A @ 120V
- 190W, 0.1A @ 230V
- Dimensions: 12.7 x 8.7 x 16.9 in (322 x 220 x 429 mm)
- Weight: 25 lb (11.4 kg)
- Approvals: CE, UKCA, RoHS, MET
What's In The Box
- Chauvet DJ Intimidator Beam 360X
- Power Cord
- Hanging Bracket
- Quick Reference Guide
Chauvet INTIMSPOT360X
(Chauvet DJ Intimidator Beam 360 X)
