The MS1 is part of the NEW M-Series. This compact unit is equipped with a bright 150W LED. With versatile uses, this unit features two prisms, a 3 segment animation effect, 6 bi rotational gobos, mechanical focus and 7 colors + open that allow you to create colorful effects. The powerful stepper motors allows the unit to create fast and slow movements taking only 1.8 seconds for a complete 540o pan and .9 seconds for a complete 270o tilt. The MS1 can be used in numerous applications such as church, theater, mobile DJ and clubs to add alluring multi-colored effects.
SPECIFICATIONS:
ITEM ID:1210
LIGHT SOURCE:150W LED
PAN:540° 8/16 BIT 3 PHASE MOTORS
TILT:270° 8/16 BIT 3 PHASE MOTORS
DMX CONNECTORS:3 AND 5-PIN XLR CONNECTORS
POWER CONNECTION:POWER CON TYPE IN/OUT
THERMAL:MAXIMUM AMBIENT TEMPERATURE 110º F MAXIMUM SURFACE TEMPERATURE 140º F
FASTENING SYSTEM:2 QUICK RELEASE BI-DIRECTIONAL CLAMP MOUNTS
POWER SWITCH:ON/OFF
FUSE:F5A 250V
ANGLE:8º
POWER SUPPLY:AUTO SWITCHING 100V≈240V 50/60HZ
POWER CONSUMPTION:WATTS: 236W / AMPS: 2.97
BALLAST:ELECTRONIC
DISPLAY:LCD DISPLAY
RDM:YES RDM PROTOCOL
COOLING:INTELLIGENT THERMO SENSING FANS. TEMPERATURE OVER 104º F FAN WILL ENGAGE
SHUTTER:ELECTRONIC SHUTTER STROBE 20 FLASH PER SECOND
PRISM 1:6 FACET CIRCULAR OVERLAY PRISM
PRISM 2:4 FACET CIRCULAR OVERLAY PRISM
ANIMATION EFFECT:3 SEGMENT ANIMATION EFFECT
ROTATION GOBO:6 BI-ROTATIONAL GOBOS (NOT REMOVABLE)
FOCUS:MECHANICAL FOCUS
COLOR:7 COLORS + OPEN

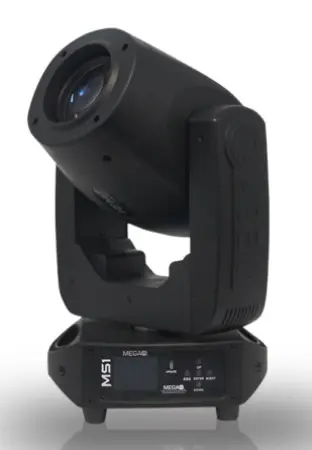

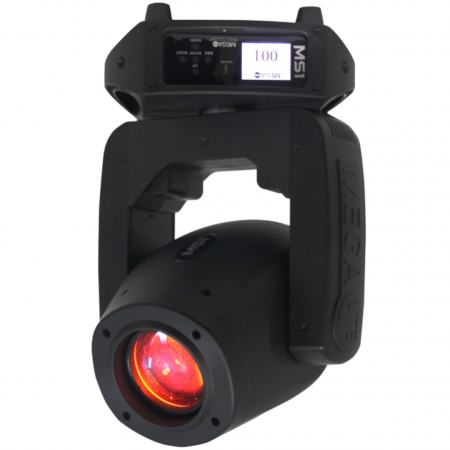

Mega Lighting MS1-1210
(Mega Lite 1210)
