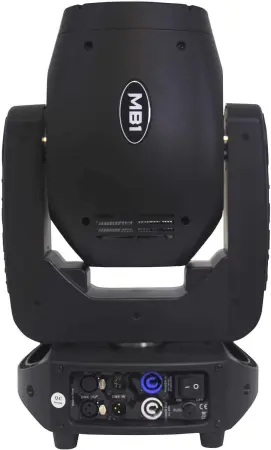

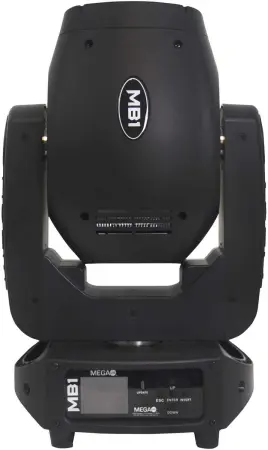

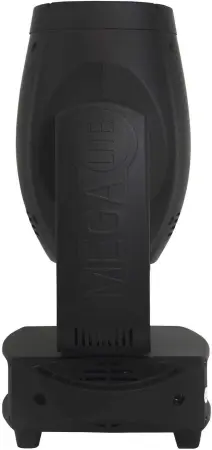

Mega Lite MB1
$1,399.99
The MB1 is a powerful beam moving head fixture. Housing an 80W LED, this compact unit has the capability of projecting a strong output and long throw. It is equipped with an 8-facet circular and 6 facet linear prism that can create a unique aerial effect. The unit features a frost filter, remote focus, fixed gobo wheel and color wheel that can be used to generate a variety of color and visual combinations.
The MB1 can be used in multiple applications such as mobile DJ, church, theater and even club environments.
SPECIFICATIONS:
ITEM ID:1220
LIGHT SOURCE:80W LED
PAN:540° 8/16 BIT 3 PHASE MOTORS
TILT:270° 8/16 BIT 3 PHASE MOTORS
DMX CONNECTORS:3 AND 5-PIN XLR CONNECTORS
POWER CONNECTION:POWER CON TYPE IN/OUT
THERMAL:MAXIMUM AMBIENT TEMPERATURE 110º F MAXIMUM SURFACE TEMPERATURE 140º F
FASTENING SYSTEM:2 QUICK RELEASE BI-DIRECTIONAL CLAMP MOUNTS
POWER SWITCH:ON/OFF
POWER SUPPLY:AUTO SWITCHING 100V≈240V 50/60HZ
POWER CONSUMPTION:WATTS: 210W / AMPS: 2.94
BALLAST:ELECTRONIC
DISPLAY:LCD DISPLAY
SHUTTER:ELECTRONIC SHUTTER STROBE 18 FLASH PER SECOND
ANGLE:.85º
FIXED GOBO:9 FIXED GOBOS + 2 BEAM REDUCING GOBOS
PRISM 1:8 FACET CIRCULAR PRISM
PRISM 2:6 FACET LINIAR PRISM
MULTI COLOR:6 COLOR MULTI COLOR EFFECT
FROST:SOFT FROST EFFECT
FOCUS:MECHANICAL FOCUS
COLOR:13 COLORS + OPEN
| Beam Angle | 0.85° ° |
| Power Consumption | 210W W |
| Power Rating | 80W LED W |
| Wattage | 80W W |
| Brand | Mega Lite |
| Name | Mega Lite MB1 |
| Color Mixing | 13 colors + open, 6 color multi color effect |
| Control Interfaces | 3 and 5-pin XLR connectors |
| Preset Storage | 9 fixed gobos + 2 beam reducing gobos |
| Dimensions | Compact unit |
| Included Accessories | 8-facet circular prism, 6 facet linear prism, frost filter, remote focus |
| Mounting Options | 2 quick release bi-directional clamp mounts |
