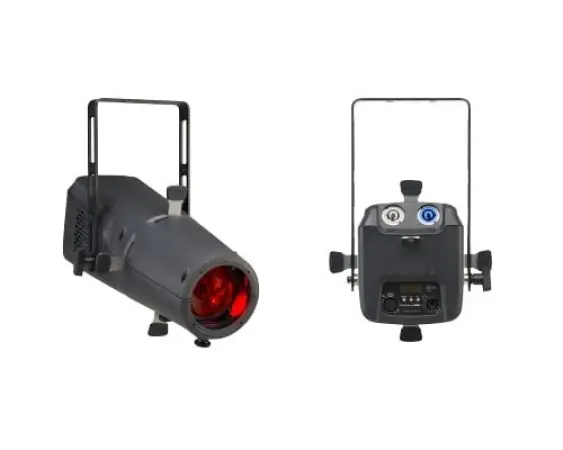

ETC CSSPOTJR2550

Compact LED ellipsoidal spotlight with zoom for stage and architectural lighting

The ETC CSSPOTJR2550 ColorSource Spot Jr Zoom is a compact, lightweight, and powerful LED ellipsoidal spotlight with a versatile 25–50 degree zoom range. Designed to deliver exceptional color rendering, reliable long-term performance, and cost-efficiency, it’s ideal for theaters, houses of worship, schools, and small performance spaces that demand professional-grade lighting in a smaller footprint.

ETC CSSPOTJR2550 Competitive Differences

• Integrated 25–50° zoom lens for flexible beam control
• 5,700 lumens of calibrated output in a compact, lightweight design
• Four-color LED array (Red, Green, Blue, Lime) for rich colors and subtle pastels
• Factory-calibrated color and intensity consistency across fixtures
• Extensive RDM and DMX512-A support with stand-alone operation options
• Advanced thermal management ensures consistent color during long use
• Rated for 50,000-hour L70 performance (LM-80 tested)
• 5-year warranty on the fixture and 10-year warranty on the LED array

ETC CSSPOTJR2550 Description

The ETC ColorSource Spot jr Zoom CSSPOTJR2550 combines ETC’s industry-leading color technology with a compact, efficient design that’s perfect for smaller venues and tighter budgets. This unit features a powerful output of 5,700 lumens and a flexible 25–50° zoom range, allowing it to serve as a spotlight or texture projector with gobos and patterns.

Its four-color LED system (Red, Green, Blue, Lime) offers beautifully mixed colors, smooth fades, and high-quality whites. The factory calibration process ensures that all ColorSource fixtures deliver uniform performance, even when added to an existing system at a later date. Thanks to built-in thermal algorithms, the color temperature remains stable over long durations, ensuring your lighting looks just as good during the show as it did during rehearsal.

With DMX512-A and RDM compatibility, as well as standalone modes, the CSSPOTJR2550 offers professional control features. The fixture comes equipped with a user-friendly 7-segment display, three-button interface, and a variable strobe channel. Designed with ABS plastic housing, rugged steel yoke, and stainless steel shutters, this fixture is built to withstand daily production demands.

CSSPOTJR2550 Features

• 25–50° zoom lens built-in
• 5,700 lumen calibrated output
• Four-color LED array (Red, Green, Blue, Lime)
• Factory color calibration ensures consistency
• Advanced thermal management with built-in cooling fan
• 15-bit dimming with incandescent dimming curve
• Digitally driven high-speed PWM (settable to 25,000Hz)
• Compatible with DMX512-A and ANSI RDM E1.20
• Stand-alone functionality with 12 preset colors and 5 sequences
• Linkable with up to 32 units via DMX for master/slave control
• Adjustable hard/soft beam edges and sharp shutter cuts
• Includes 7-segment display and 3-button interface
• 0.024" stainless steel shutters
• Rugged steel yoke allows 300°+ rotation

CSSPOTJR2550 Specifications

• Zoom Range: 25°–50°
• LED Array: 52 LEDs (Red, Green, Blue, Lime)
• Color Temperature Calibration: Factory-calibrated for uniformity
• Light Output: 5,700 lumens
• Control Protocols: DMX512-A (5-pin XLR), RDM
• Display: 7-segment with 3-button interface
• Dimming: 15-bit resolution with smooth fades
• Shutter System: Three-plane with stainless steel shutters
• Gate Size: 55mm, M-size pattern holder
• Construction: ABS plastic body, steel yoke
• Cooling: Internal fan with advanced thermal management
• Power: Lower wattage for energy savings and increased circuit density
• Certifications: UL1598, ETL/cETL LISTED, CE, IP20 (dry location)
• Expected LED Life: L70 at 50,000+ hours (LM-80 tested)
• Warranty: 5 years on fixture, 10 years on LED array

E T C 7416A1001 (ETC CSSPOTJR2550 Bare end)
