Compact and Versatile DMX Controller for Theatrical and Stage Lighting
The

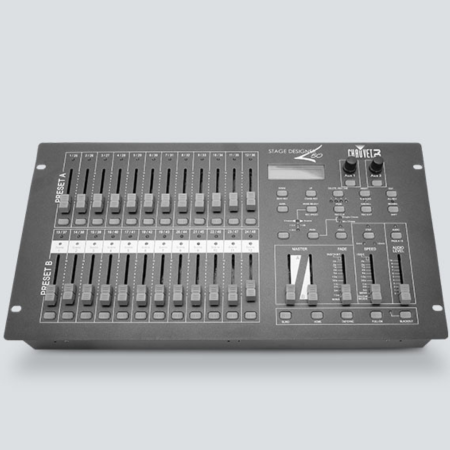

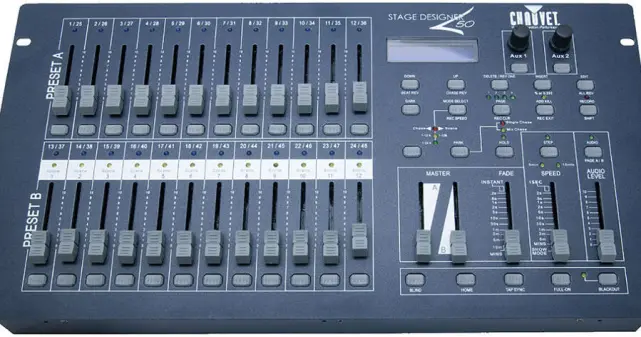

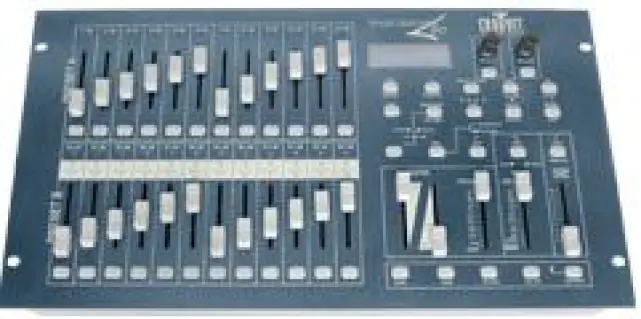

Chauvet DJ Stage Designer 50 combines the functionality of a 48-channel DMX controller with the compact size of a 24-channel console. Designed for controlling LED Par fixtures, relay packs, and dimmer packs, this theater-style DMX controller offers advanced features, including two-scene crossfaders, MIDI input, and a built-in microphone for music synchronization.
Chauvet DJ Stage Designer 50 Competitive Differences
- Combines the power of a 48-channel controller with the compact size of a 24-channel unit.
- Features two-scene crossfaders for smooth transitions during live performances.
- Offers up to 8 pages with 12 scenes each, totaling 96 programmable scenes.
- Includes 96,000 programmable steps for ultimate versatility.
- Built-in DMX channel patching allows for reassignment of channels.
- MIDI support enables remote dimming and scene triggering.
- Built-in microphone and audio input allow synchronization with music.
- Two programmable auxiliary buttons for enhanced control.
Chauvet DJ Stage Designer 50 Description
The
Chauvet DJ Stage Designer 50 is an advanced DMX lighting controller designed to streamline lighting control for theater productions, live events, and stage performances. With 48 DMX channels packed into a 24-channel-sized console, this controller saves valuable desk space without sacrificing power or functionality.
The Stage Designer 50 supports up to 96,000 programmable steps, allowing intricate light shows with precise timing. It features two-scene crossfaders for seamless transitions between live looks and stacked scenes for simultaneous or sequential playback. Built-in DMX channel patching lets users reassign channels easily, simplifying setup and programming.
Enhanced with MIDI support, the Stage Designer 50 enables remote dimming and scene triggering, providing flexibility for complex productions. The built-in microphone and direct audio input connector make it easy to coordinate light shows with music. This controller is ideal for professionals seeking compact and versatile lighting solutions.
Stage Designer 50 Features
- 48 DMX channels in a compact 24-channel console size.
- Two-scene crossfaders for smooth transitioning between live looks.
- 8 pages with 12 scenes each, offering a total of 96 scenes.
- 96,000 programmable steps for creating intricate light shows.
- Two programmable auxiliary buttons for versatile playback options.
- Built-in DMX channel patching for easy reassignment.
- MIDI support for remote dimming and scene triggering.
- Audio synchronization via direct audio input or built-in microphone.
- Ability to stack scenes for simultaneous or sequential playback.
Stage Designer 50 Specifications
- DMX Channels: 48
- DMX Connectors: 3- and 5-pin XLR
- Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Size: 19 x 10.5 x 3.5 in (483 x 267 x 89 mm)
- Weight: 9.9 lb (4.5 kg)
- Approvals: CE
- Rackmount: 6U
What’s Included
- Power cord
- User manual
- Warranty card
- External power supply
Chauvet Stage Design 50
(Chauvet DJ Stager Designer Fifty 48 Channel)
