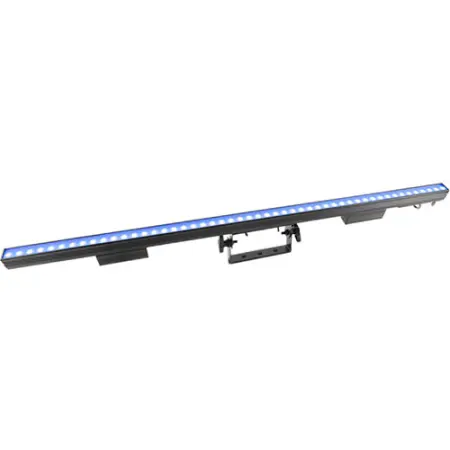

Epix Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125-degree viewing angle. Power and control it through the Épix Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN). For added versatility and more creative options, a dome accessory is available to widen the viewing angle to up to 180 degrees.
Features:
Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics
Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
Increase viewing angle by using the optional dome accessory
ÉPIX Drive 900 required for operation
Specifications:
Optical
Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle: 125 Degree.
Viewing Angle (with optional dome accessory): 180 Degree.
Illuminance (white frost filter installed): 1,094 NITS
Illuminance (with optional dome accessory): 701 NITS
Illuminance (black stealth filter installed): 267 NITS
Pixels: 50 x 1
Pixel Pitch: 20 mm
Refresh Rate: 4,700 Hz
Construction / Physical
Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
Dimensions (with optional dome accessory): 39.37 x 5.31 x 1.18 in (1000 x 135 x 30 mm)
Weight: 3.44 lb (1.56 kg)
Weight (with optional dome accessory): 3.51 lb (1.59 kg)
Exterior Color: Black
Housing Material: Aluminum
Connections
Data Connectors: 4-pin XLR
Physical Linking: 18 inline Epix Strip Tour
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)
Control
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 150
Electrical
Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 Degree. F to 113 Degree. F (-20 Degree. C to 45 Degree. C)
What's Included
EPIX Strip Tour
White Frost Filter
Required Accessories
EPIX Drive 900
VIP Driver
Chauvet Professional EPIXSTRIPTOUR
(Chauvet Pro EPIX Striptour)
