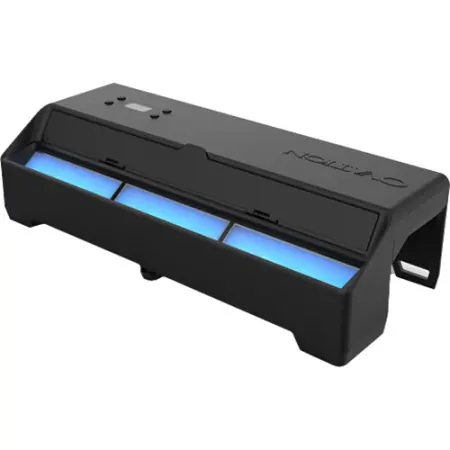

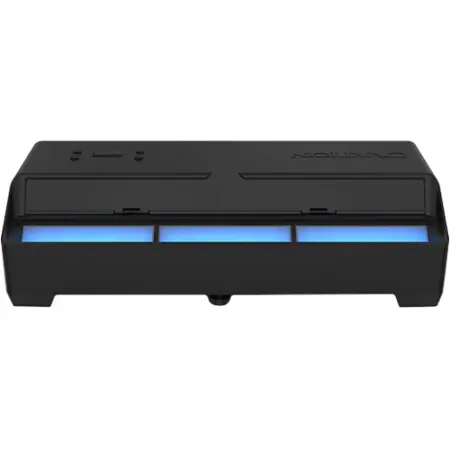

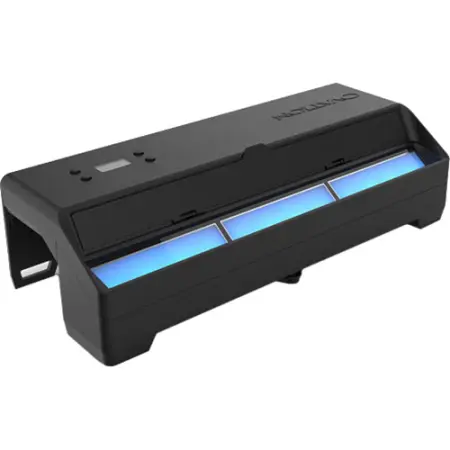

Ovation CYC 1 FC v2 is an incredibly sleek, discreet, and light weight CYC that delivers a wide, smooth field of light with significant reach. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low-profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features an included omega bracket.
AT A GLANCE
Low-profile and lightweight cyclorama wash or footlight fixture
Display a full spectrum of hues with RGBAL LEDs for theatre, film and production
Theatre-ready with 16-bit dimming of master dimmer and individual colors
Beam modification with built in “kick stand” and adjustable glare shield
Flat, even field of light with superior color mixing
Virtual Color wheel with color matched to popular gel colors and color temperature presets
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Silent operation for use in studio and theatre applications
SPECIFICATIONS
OPTICAL
Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 91
Beam Angle: 85°
(Horizontal)Beam Angle: 81°
(Vertical)Field Angle: 128°
(Horizontal)Field Angle: 142°
(Vertical)Lumens: 8,966
Illuminance: 200 lux @ 5 m
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
CONSTRUCTION / PHYSICAL
Dimensions: 16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
Weight: 9 lb (4.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16 HSV)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
Power and Current: 138 W, 1.13 A @ 120 V, 60 Hz
Power and Current: 135 W, 0.65 A @ 208 V, 60 Hz
Power and Current: 137 W, 0.58 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
OVATION CYC-1FC v2
Neutrik powerCON power cord
Omega bracket with mounting hardware
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
