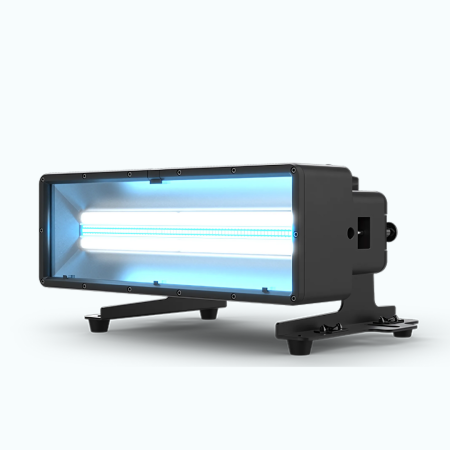

IP65 Strobe with Color FX and Stackable Design
Chauvet Pro STRIKE Bolt 1C is an all-weather, high-intensity strobe and color fixture built for demanding production environments. Featuring a rugged IP65-rated body, dual white strobe tubes, and a row of RGBA LEDs, it’s designed to deliver classic blinder effects with modern flexibility. Its integrated Smart Frost technology enables smooth transitions from hard-hitting strobe bursts to soft color washes, making it an innovative solution for stage, concert, and broadcast lighting.
Chauvet Pro STRIKE Bolt 1C Competitive Differences
- Smart Frost glass shifts beam from sharp strobe to smooth color instantly
- Tool-Free Stacking system for building custom FX arrays with STRIKE Array fixtures
Chauvet Pro STRIKE Bolt 1C Description
The
STRIKE Bolt 1C pushes the boundaries of what a strobe can do. It combines two high-powered cold white strobe tubes with a center strip of RGBA LEDs to offer rich color washes, pixel-style effects, and piercing flashes. Unique among strobes, it features electronic Smart Frost—an integrated glass panel that can instantly switch between a sharp beam and a frosted field, providing unmatched flexibility in a single fixture.
This unit excels in touring and live production environments with its magnesium alloy housing and IP65 rating for temporary outdoor use. Multiple rigging options—including hanging points, floor feet, and end-to-end connection—allow for seamless integration into custom arrays using Chauvet’s Tool-Free Stacking system. Use it alone, link it with other STRIKE Bolt or STRIKE Array units, and craft impactful blinder walls or creative wash effects.
The stealth filter, included in the box, minimizes the fixture’s visual footprint on camera, making it ideal for broadcast and film. With multiple DMX modes, 18-bit dimming, and selectable PWM up to 64,000 Hz, the STRIKE Bolt 1C is equally suited for fast-paced live shows and precise studio setups.
Model Features
- Dual cold white strobe tubes and central RGBA color plate
- Integrated Smart Frost (electronic frost glass)
- 20,251 combined lumens (plate + strobe)
- Stackable design compatible with STRIKE Array fixtures
- Stealth filter included for low-profile, on-camera use
- 18-bit dimming and selectable PWM (up to 64,000 Hz)
- Multiple beam and field angle configurations
- Wide range of DMX profiles (10–53 channels)
Model Specifications
- Light Source: 392x CW LEDs + 66x RGBA SMD LEDs
- Color Temperature: 5692K
- CRI: 89.2
- Beam Angles: Up to 84.6° x 73.6° (plate), 77.7° x 54.7° (beam)
- Field Angles: Up to 139.7° x 114.5°
- Lumens: 23,736 (beam), 2,735 (plate), 20,251 (combined)
- Illuminance @ 5m: 729 lux (beam), 66 lux (plate), 605 lux (combined)
- Input Voltage: 100–240 VAC, 50/60 Hz
- Power Consumption: 329 W max
- Dimensions: 14.96 x 8.39 x 11.81 in (380 x 213 x 300 mm)
- Weight: 19 lb (8.7 kg)
- Control: DMX, RDM (8 personalities)
- IP Rating: IP65 (temporary outdoor use)
What's In The Box
- STRIKE Bolt 1C fixture
- Stealth filter
- Seetronic Powerkon IP65 power cord
- Omega bracket with mounting hardware
Chauvet STRIKEBOLT1C
(Chauvet Pro STRIKE Bolt 1C)
