High-Performance LED Cyclorama Light for Theater, Broadcast & Live Events
The
Elation KL CYC L is a powerful, ultra-compact cyclorama and wall wash lighting fixture designed for seamless and even illumination. Engineered for silent operation and optimal light blending, it’s ideal for theatrical productions, TV/film sets, live performances, and worship spaces. With advanced color rendering, an asymmetrical reflector design, and modern safety and control features, this low-profile unit delivers flawless results in both footlight and overhead applications.
Elation KL CYC L Competitive Differences
- 180W RGBMA LED Array with high CRI of 96.5 and TLCI of 88
- EdgeLight safety feature provides stage-edge visibility in red or blue
- Fanless, silent operation — ideal for audio-sensitive environments
- Ultra-efficient asymmetrical reflector for smooth vertical coverage
- Adjustable front feet and low-profile housing — perfect for footlight setups
- Magnetic alignment for seamless fixture arrays
- Supports DMX, Art-Net, sACN, and RDM for flexible control integration
- Up to 4 independently controllable segments for dynamic lighting effects
- Variable CCT (2,400K–8,500K) with green/magenta shift and virtual gel library
- IP65-rated locking power connectors with pass-through capability
Elation KL CYC L Description
The
Elation KL CYC L delivers top-tier performance in a minimal footprint, purpose-built for cyclorama and wall wash applications. Its unique asymmetrical reflector distributes an even, blended wash from floor to ceiling or wall to wall, making it ideal for covering large surfaces with uniform light.
The unit’s 180W RGBMA LED engine ensures high output with precise color control, compatible with other fixtures in Elation’s KL and Fuze lines. Designers will appreciate the extensive color options, including CMY and RGB emulation, calibrated CCT tuning, and a virtual gel library. Four-segment control adds creative flexibility for dynamic shows.

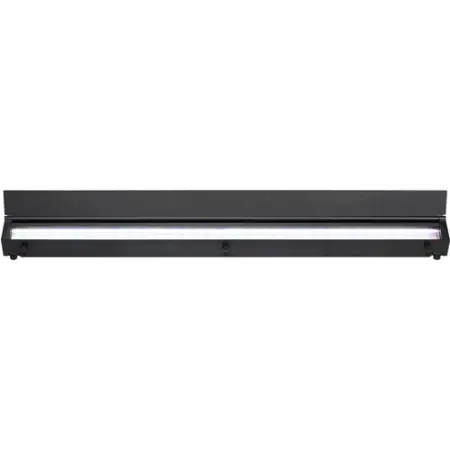

Built for professional environments, the KL CYC L includes features like seamless magnetic fixture alignment, easy bracket mounting, and elegant cable management. Its fanless design ensures quiet operation—critical for theatrical and broadcast use. The integrated EdgeLight safety function enhances stage safety by providing visible edge markers in red or blue if desired or when DMX signal is lost.
Whether for touring, permanent installs, or production environments, the KL CYC L brings modern LED performance, exceptional color quality, and a thoughtful design that simplifies deployment and enhances lighting possibilities.
KL CYC L Features
- 180W RGBMA LED Array
- Fanless, silent operation
- 9,249 total fixture lumen output (sphere)
- Asymmetrical reflector for even coverage
- Up to 4 individually controllable segments
- EdgeLight red/blue safety indicator
- Variable 16-bit dimming and strobe effects
- CMY and RGB emulation modes
- Variable CCT (2,400K to 8,500K)
- Green/magenta shift adjustment
- Virtual Gel Swatch Book
- Magnetic fixture alignment system

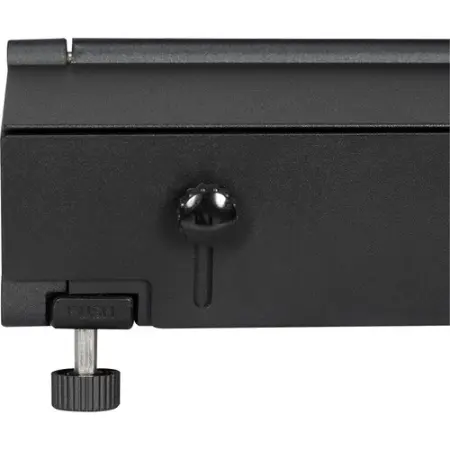

- Adjustable front feet for angle control

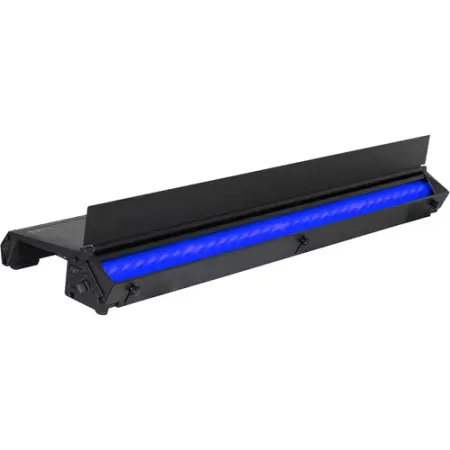

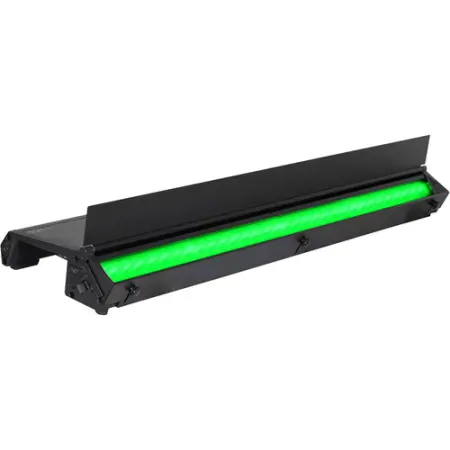

- Top and bottom barndoors for precise framing
- RDM enabled
- DMX, Art-Net, and sACN support
- Power and data passthrough
KL CYC L Specifications
- LED Source: 180W RGBMA LED Array
- LED Lifetime: 30,000 hours (average)
- Total Lumen Output: 9,249 (Integrating Sphere), 8,606 (Goniometer)
- CRI: 96.5
- TLCI: 88
- Beam Angle (with filter): 40° x 90°
- Field Angle (with filter): 85° x 160°
- Beam Angle (no filter): 25° x 75°
- Field Angle (no filter): 80° x 125°
- DMX Channel Modes: 11 options (1–56 channels)
- Control Panel: 4-button with LED display

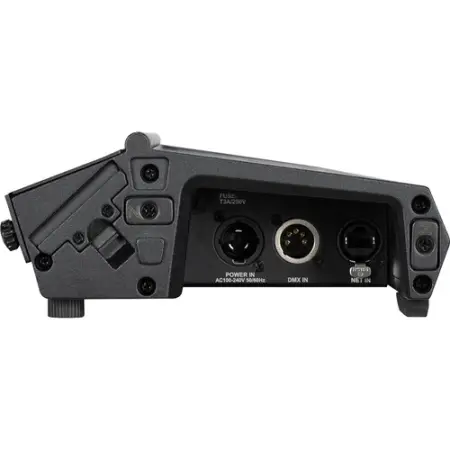

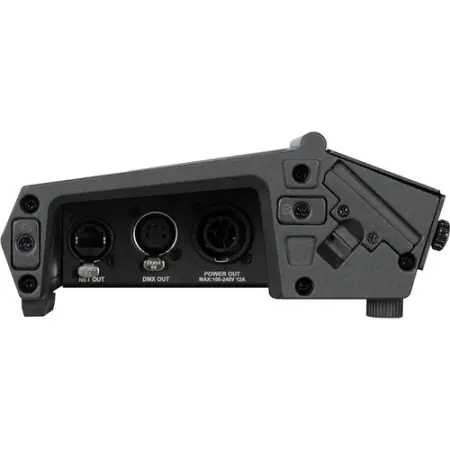

- Data Connections: 5-pin DMX, RJ45 Ethernet
- Power Connections: IP65 Locking In/Out
- Input Voltage: AC 100–240V, 50/60Hz
- Power Consumption: 196W max
- Power Thru Capacity: 12A (6 units @110V; 14 units @240V)
- Operating Temperature: 5°F to 113°F (-15°C to 45°C)
- Thermal Output: 668.36 BTU/hr (±10%)
- Length: 37.9 in (962mm)
- Width: 8.1 in (206.3mm)
- Height: 3.4 in (85.2mm)
- Weight: 16 lb (7.3 kg)
What's In The Box
- 2x Omega Bracket
- 1x Frost Filter
- 1x Barndoor
- 1x IP65 Locking Power Cable
Elation Lighting KLCYC L
(Elation KL CYCL)
