Outdoor Narrow Beam UV Wash Fixture
The
Magmatic Prisma Wash 25 is a powerful, weather-resistant ultraviolet wash luminaire designed to deliver true 365nm UV output with a sharp, 20° narrow beam. Built for outdoor environments, it’s perfect for precision blacklight applications where controlled coverage and zero visible light are essential.
Magmatic Prisma Wash 25 Competitive Differences
- 38x 2W UV LEDs with a 20° beam for focused output
- True 365nm UV wavelength with no visible light
Magmatic Prisma Wash 25 Description
The
Prisma Wash 25 delivers impactful, true ultraviolet lighting in a compact, rugged IP65-rated housing. Designed for both temporary and permanent installations, its narrow 20° beam angle provides tight coverage—ideal for signage, stage elements, or architectural features where concentrated UV lighting is needed.
Equipped with 38 high-power 2W UV diodes, this fixture emits only 365nm light, creating strong fluorescence effects without any visible output. Manual tilt adjustment and versatile mounting options offer flexible positioning in any rigging setup.

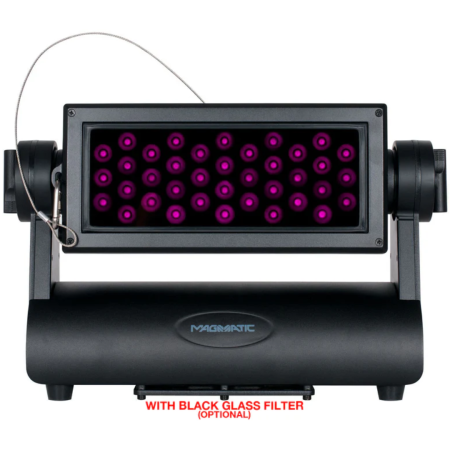

The Prisma Wash 25 is fully controllable via DMX-512 and RDM, and features a built-in 2.5-inch touchscreen interface for easy configuration. Locking IP-rated connectors for both power and DMX ensure secure outdoor operation, and optional accessories like a black glass diffusion filter allow for blackout-style UV enhancement.
Model Features
- True 365nm UV output with zero visible light
- 38x 2W high-power UV LEDs
- 20° beam angle for focused UV coverage
- Rugged IP65 aluminum housing for outdoor use
- Onboard touchscreen, DMX-512, and RDM control
Model Specifications
- LED Source: 38 x 2W UV Diode LEDs
- Wavelength: 365nm peak
- Beam Angle: 20°
- Power Consumption: 83W Max
- Input Voltage: 100–240V AC, 50/60Hz
- DMX Modes: Multiple channel options
- DMX I/O: 5-pin locking XLR
- Power In: IP65 locking power connector
- Dimensions: 17.5 x 5.9 x 11.29 in (445 x 150 x 287 mm)
- Weight: 19 lb (8.62 kg)
- Operating Temp: 14°F to 113°F (-10°C to 45°C)
- Certifications: CE, cETLus, FCC | IP Rating: IP65
What's In The Box
- Prisma Wash 25 fixture
- Power cable
- User manual
Magmetic PSW325
(Magmatic PSW-325)
