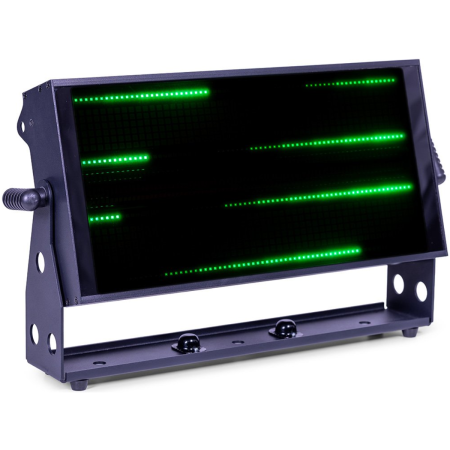

ColorKey Inceptor Panel FX

Pixel-Mapped LED Wash, Strobe, and Blinder Panel

ColorKey Inceptor Panel FX is a high-output LED effects panel designed for lighting professionals who need powerful wash capability, dynamic pixel effects, and versatile color control in one fixture. Featuring an RGB plus cool white and warm white LED engine with ActiveFrost™ electronic diffusion, it can instantly shift between sharp pixel effects and smooth frosted wash output.

ColorKey Inceptor Panel FX Competitive Differences

• ActiveFrost™ electronic diffusion instantly switches between clear pixel effects and soft wash output
• RGB plus Cool White / Warm White LED engine with tunable white from 1800K to 6500K

ColorKey Inceptor Panel FX Description

The ColorKey Inceptor Panel FX combines high-output wash lighting, pixel-mapped visual effects, and blinder functionality into a single professional fixture. Its advanced RGB plus CW/WW LED system delivers vibrant saturated colors, tunable white light, and warm tungsten-style tones that adapt easily to stage, architectural, or event lighting designs.

ActiveFrost™ electronic diffusion technology allows the fixture to transition instantly between clear and frosted output without mechanical filters. Designers can create crisp pixel-based visuals for eye-catching effects or soften the output for smooth wash coverage across performers, stages, or architectural surfaces.

The multi-zone pixel architecture supports advanced programming with dynamic gradients, chases, and animated lighting effects. Independent RGB segments provide detailed motion effects, while dedicated warm and cool white channels allow precise color temperature adjustment from 1800K tungsten-style warmth to 6500K neutral white.

Built for production environments, the Inceptor Panel FX features PowerCON power connections and both 3-pin and 5-pin DMX I/O for seamless integration into professional lighting systems. Multiple DMX modes support simple operation or full pixel-level programming. A removable mounting yoke with rubberized feet allows stable floor placement, while dual Omega mounting positions provide flexible truss installation.

Inceptor Panel FX Features

• High-output RGB + Cool White / Warm White LED system
• ActiveFrost™ electronic diffusion glass

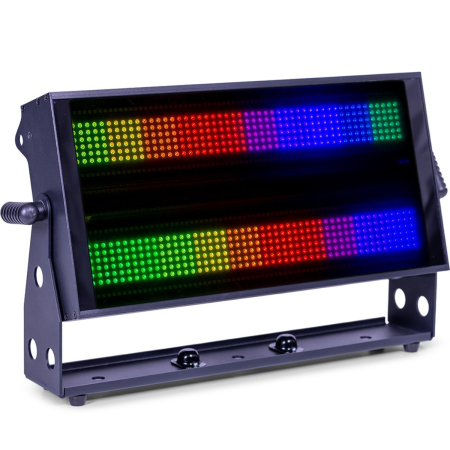

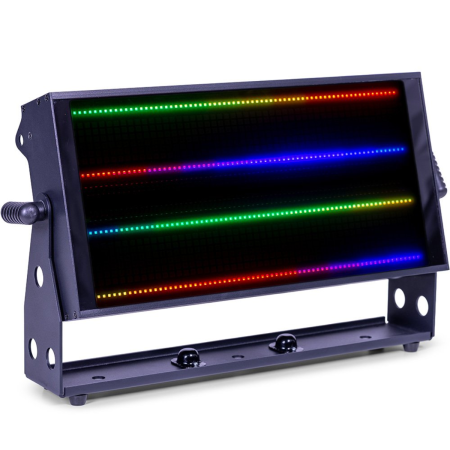

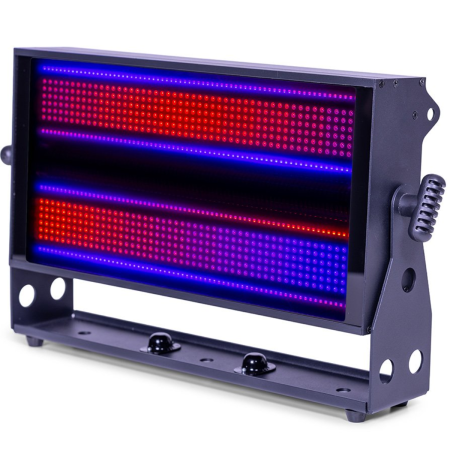

• Pixel-mapped RGB LED zones for dynamic effects

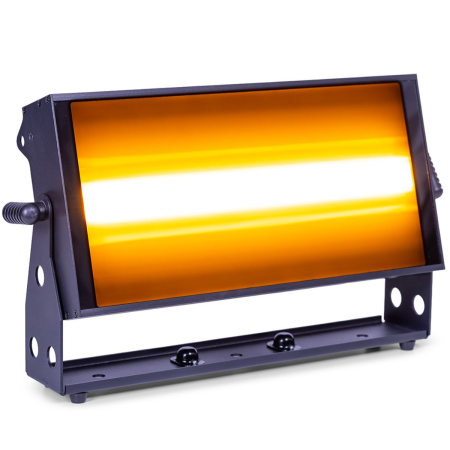

• Dedicated warm white channel for amber and tungsten-style tones
• Color temperature control from 1800K to 6500K
• Wide wash coverage with up to 158° field angle
• Smooth 0–100% dimming
• Adjustable strobe effects (1–20Hz)

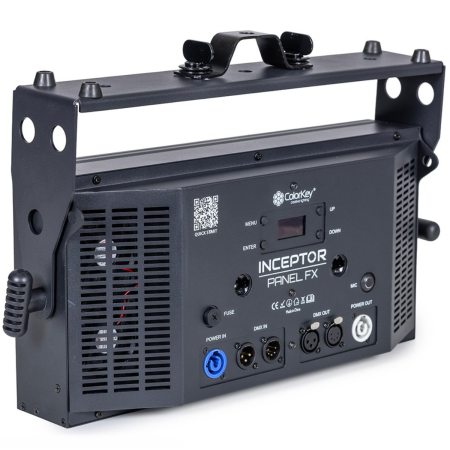

• Dual Omega bracket mounting positions

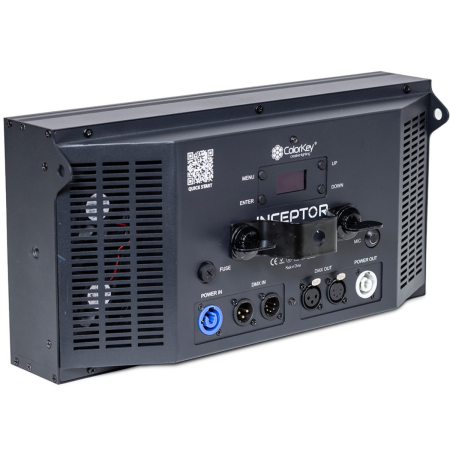

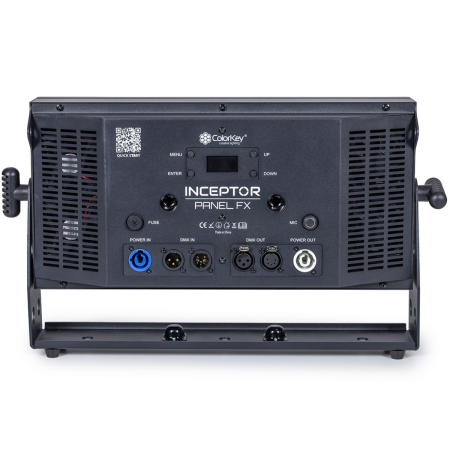

• 3-pin & 5-pin DMX and PowerCON in/out connectivity
• Multiple DMX control modes including pixel-level operation

Inceptor Panel FX Specifications

• RGB LEDs: 600 × 0.5W RGB (20-segment) + 280 × 0.5W RGB (40-segment)
• White LEDs: 240 × 1W Cool White / Warm White (10-segment)
• Combined RGB Illuminance: 885 Lux @ 2 m
• Warm White Illuminance: 1181 Lux @ 2 m
• Cool White Illuminance: 1415 Lux @ 2 m
• Momentary Strobe Illuminance: 2680 Lux @ 2 m
• Color Temperature Range: 1800K – 6500K
• Beam Angle (RGB): 120°
• Field Angle (RGB): 158°
• Beam Angle (White): 90°
• LED Lifetime: 50,000 hours
• DMX Modes: 10A / 10B / 16CH / 26CH / 201CH
• Control Protocols: DMX512, RDM, Auto, Sound Active
• Strobe Rate: 1–20Hz
• Voltage: AC 100–240V, 50/60Hz
• Power Consumption: 390W @ 100V / 366W @ 220V
• Power Connections: PowerCON in/out
• DMX Connections: 3-pin & 5-pin XLR in/out
• Dimensions: 16.1 x 7.9 x 7.9 in (41 x 20 x 20 cm)
• Weight: 15.4 lb (7 kg)
• IP Rating: IP20

What's In The Box

• ColorKey Inceptor Panel FX
• Omega mounting bracket
• Removable yoke with rubberized feet
• Power cable

Colorkey Inceptor Panel FX (Color Key CKU-4110)
