High-Powered Subwoofer for Deep Bass Reinforcement
The

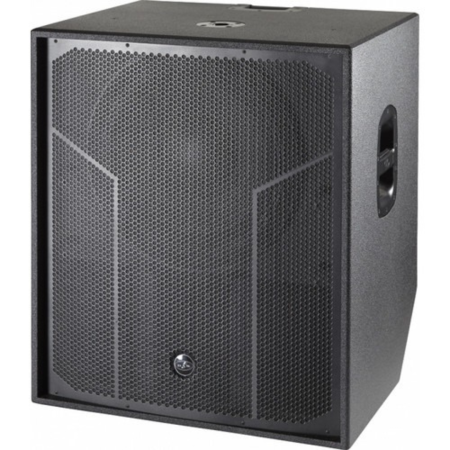

DAS Action-S118A is a powerful 18" active subwoofer engineered to deliver extended low-frequency performance with high output and low distortion. Ideal for portable PA systems and fixed installations, it offers 3200W of peak power, precision tuning features, and rugged build quality, making it the perfect match for full-range DAS Action series loudspeakers.
DAS Action-S118A Competitive Differences
- 3200W peak Class D amplifier ensures powerful, clean bass with efficient thermal handling
- 18LX 18" driver with a 4" voice coil for high SPL and low distortion
- Variable low-pass filter (63 Hz – 100 Hz) enables fine-tuning for seamless integration with top cabinets
- Stereo XLR inputs and 100 Hz filtered outputs for easy integration with Action series satellites
- Defeatable high-pass filter for full-range loop-thru connections
- Signal and limiter LEDs for real-time status monitoring
- Birch plywood enclosure with ISO-flex finish for durability in touring or installed environments
- Top pole mount socket for full-range speaker mounting
DAS Action-S118A Description
The
Action-S118A subwoofer is designed for professionals who require powerful bass response with clarity and control. It incorporates the high-performance DAS 18LX transducer, which features a 4" voice coil for exceptional power handling and minimal distortion. With a frequency range down to 35 Hz and a maximum SPL of 137 dB, this subwoofer is built for impactful low-end delivery.
Its Class D amplifier provides 1600W continuous and 3200W peak output, allowing the system to operate effortlessly at high volumes. Connection and control are easy thanks to dual balanced XLR inputs, stereo filtered outputs, loop-thru options, and a user-adjustable low-pass filter. Additional features such as polarity inversion and gain control allow precise tuning in any system setup.
Constructed from durable birch plywood and finished with DAS's ISO-flex paint, the Action-S118A is built to handle the demands of the road or fixed installations. It includes a top-mounted 35 mm pole socket for stacking full-range speakers, making it a practical solution for scalable PA configurations.
Action-S118A Features
- 3200W peak / 1600W continuous Class D amplifier
- 18" DAS 18LX transducer with 4" voice coil
- Adjustable low-pass filter (63 Hz – 100 Hz)
- Defeatable 100 Hz high-pass output filter
- Polarity switch and gain control for system tuning
- Signal and limiter LED indicators

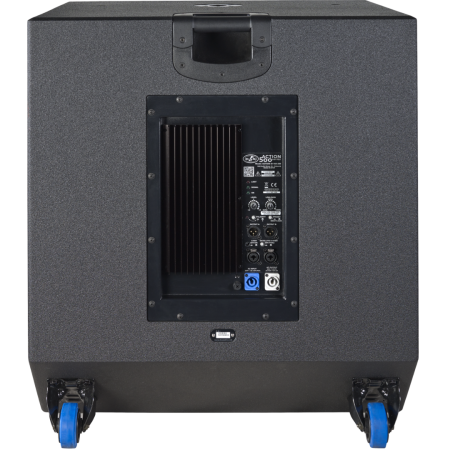

- Stereo XLR inputs and filtered loop-thru outputs
- Top pole mount for full-range loudspeaker mounting
- Rugged birch plywood cabinet with ISO-flex finish
Action-S118A Specifications
- Frequency Range (-10 dB): 35 Hz – 125 Hz
- Maximum Peak SPL at 1 m: 137 dB
- Amplifier Power (Continuous): 1600 W
- Amplifier Power (Peak): 3200 W
- Input Type: Balanced
- Input Impedance: 20 kohms
- Input Sensitivity: 1.95 V (+8 dBu)
- Audio Signal Inputs: 2 x XLR (female)
- Loop Thru Outputs: 2 x XLR (male)
- AC Output Connector: powerCON NAC3MPB
- Current Draw @ 230 V: 1.8 A
- Construction: Birch Plywood
- Finish: ISO-flex Paint
- Color: Black
- Dimensions (H x W x D): 31.5 x 27.4 x 22.4 in (800 x 695 x 570 mm)
- Net Weight: 125.7 lb (57.0 kg)
- Shipping Dimensions: 34.5 x 29.1 x 24.4 in (875 x 740 x 620 mm)
- Shipping Weight: 135.6 lb (61.5 kg)
What's In The Box
- 1 x DAS Action-S118A Powered Subwoofer
- 1 x Power Cable
DAS ActionS118A
(DAS Action-S118A)
