Versatile 12-Inch Curved Source Line Array for Professional Sound Applications
The

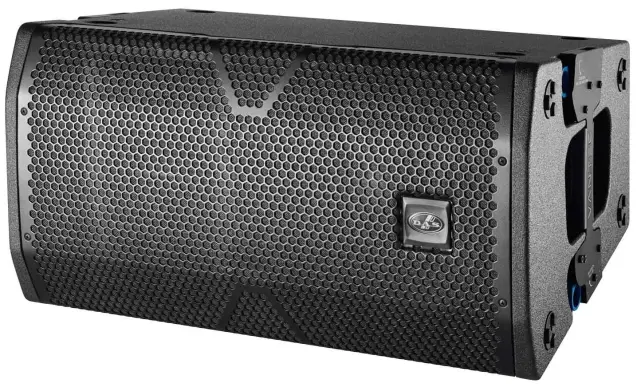

D.A.S. Audio Vantec-20A is a powerful active curved source line array system designed to deliver exceptional sound performance in a compact form. With a 1500W peak Class-D bi-amplified design, this speaker is perfect for corporate A/V events, mid-size sound reinforcement, and permanent installations. Its flexible design allows for use individually, stacked on a Vantec-118A subwoofer, or flown in arrays of up to 5 units.
D.A.S. Audio Vantec-20A Competitive Differences
- 1500W peak Class-D bi-amplified system for robust audio performance
- 12" DAS 12F4C woofer and dual M-60 compression drivers for wide frequency response (63 Hz - 20 kHz)
- Selectable high-pass filter presets for seamless integration with Vantec-18A and Vantec-118A subwoofers
- DAScontrolâ„¢ interface for easy configuration and throw compensation adjustments
- DASlinkâ„¢ app for wireless streaming and remote control of system functions
- Variable angle pole mount allows for precise aiming with +/- 13.5° tilt
- Durable Baltic birch plywood enclosure with ISO-flex coating for long-lasting performance
D.A.S. Audio Vantec-20A Description
The
D.A.S. Audio Vantec-20A is built for flexibility and high-quality sound, making it ideal for various professional applications where compact arrays are needed. Its powerful 1500W peak Class-D amplifier drives a 12-inch DAS 12F4C woofer and two M-60 compression drivers, delivering a frequency range of 63 Hz to 20 kHz. The bi-amplified design ensures precise audio reproduction, while the advanced FIR filters provide a linear phase response for superior clarity and detail.
With the intuitive

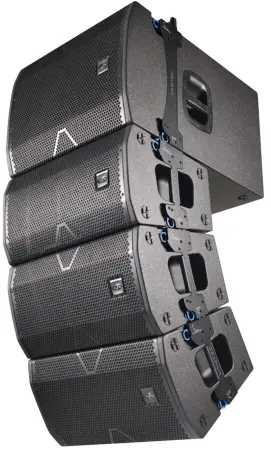

DAScontrol™ interface, users can configure system presets, throw compensation, and array size with ease. The Vantec-20A can be used individually or in arrays of up to 5 units, making it suitable for venues that don't require the power of large line arrays. The variable angle pole mount enables precise adjustments of up to +/- 13.5°, ensuring optimal coverage in any setup. When used as a standalone unit, the
DASlinkâ„¢ app allows for high-definition music streaming and remote control over essential settings.
The Vantec-20A's enclosure is constructed from durable Baltic birch plywood and finished with ISO-flex coating for enhanced protection, even in demanding environments. Its compact design, combined with easy rigging options and robust performance, makes it a reliable choice for sound professionals.
Vantec-20A Features
- 12" DAS 12F4C woofer and 2 x M-60 compression drivers for detailed sound
- 1500W peak Class-D bi-amplified design
- Advanced FIR filters for accurate phase response
- DAScontrolâ„¢ with presets and DSP configuration options
- DASlinkâ„¢ app for wireless streaming and remote adjustments
- +/- 13.5° variable tilt pole mount for precise coverage
- IP43-rated enclosure for durability in various environments

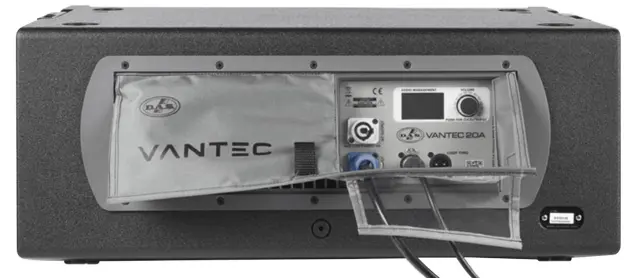

- Balanced XLR input and loop-thru connections for easy integration
Vantec-20A Specifications
- Configuration: Active Curved Source Line Array
- Total Power Capacity: 1500W Peak (Class-D Bi-amplified)
- Frequency Range (-10 dB): 63 Hz – 20 kHz
- Rated Peak SPL: 136 dB
- Dispersion: 90° Horizontal x 15° Vertical
- Input Sensitivity: +8 dBu
- Input Impedance: 20 kΩ Balanced
- Audio Inputs:
- 1 x XLR 3-Pin Female Input
- 1 x XLR 3-Pin Male Loop Thru Output
- Power Requirements: 115/230 VAC, 50/60 Hz
- Power Draw: 3.0 A (115 V) / 1.5 A (230 V)
- Enclosure: Baltic Birch Plywood with ISO-flex Finish
- Dimensions (H x W x D): 13 x 24.4 x 17.1 in (33 x 62 x 43.5 cm)
- Weight: 74.8 lb (33.9 kg)
What's In The Box
- D.A.S. Audio Vantec-20A Active Curved Source Line Array Module
- powerCon Power Cord
- Limited 2-Year Warranty
- User Manual
