The FMX series comprises three advanced active 2-way coaxial stage monitors (10", 12", and 15") equipped with Class D amplifiers delivering 400 RMS (FMX 10) or 600 RMS (FMX 12 and 15) power output. These monitors feature a coaxial design, custom horn design, and advanced DSP with linear phase FIR filters for precise and highly intelligible sound reproduction. The horn design allows for adjustable dispersion patterns (60° horizontal and 90° vertical or 90° horizontal and 60° vertical) to suit user preferences. The FMX series also offers eight on-board presets for optimized EQ settings, catering to different performance needs. Additionally, these monitors feature a distinctive front-rear grille design, an integrated handle, and a side panel with a 36mm pole mount, enhancing their versatility and usability.
DB Technologies FMX-15 Features:
Active 2-way stage monitor
Coaxial configuration
Linear phase FIR Filters
Ultra-precise directivity
Rotatable horn (90° x 60° or 60° x 90° dispersion)
Front-rear grille design
Integrated handle on bottom side
DB Technologies FMX-15 Specifications:
Technical Data:
Speaker Type: 2-Way Active Coaxial Stage Monitor
Acoustical data:
Frequency Response [- 10 dB]: 46 - 19.000 Hz
Max SPL: 128 dB
HF: 1", 1.3" v.c.
Directivity: 60° X 90°
Horn: Rotatable
LF: 15", 2" v.c.
Amplifier:
Amp Class: Class D
Peak Power: 1200 W
Processor:
Controller: DSP 28/56 bit
AD/DA Converter: 24 bit/48 kHz
System Presets: 8 presets
Limiter: Peak, RMS, Thermal
Advanced DSP Function: FIR Filters
Crossover Frequency: 1740 Hz
Slope LF/HF: 24 dB/oct
Mechanics:
Housing: Plywood
Housing Design: Multifunctional
Handles: 1 integrated on bottom side
Pole mount: 36 mm
Width: 500 mm (19.68 in)
Height: 340 mm (13.38 in)
Depth: 500 mm (19.68 in)
Weight: 16.9 kg (37.2 lbs)

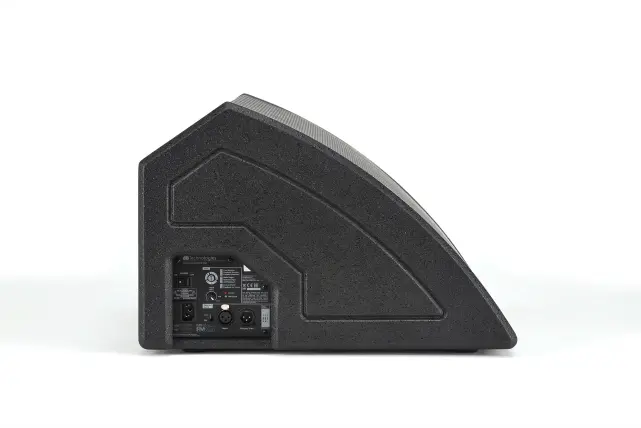

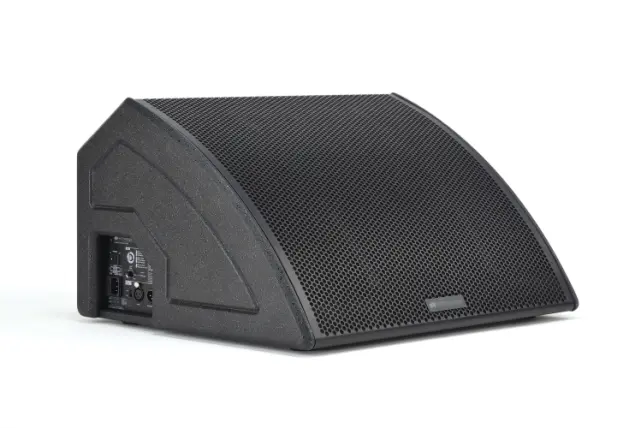

dB Technologies FMX-15
(dB Tech 15in Stage Monitor)
