High-Performance 12" Powered Loudspeaker with Dante
The

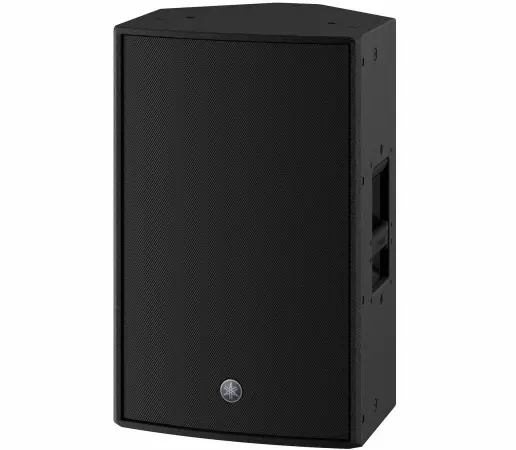

Yamaha DZR12-D is a premium 12" 2-way powered loudspeaker equipped with Dante networking capabilities, delivering exceptional clarity and power with a peak SPL of 139dB. Featuring advanced DSP, a powerful 2000W Class-D amplifier, and superior low-frequency performance, this speaker is built for professional audio applications, including live sound, installations, and monitoring.
Yamaha DZR12-D Competitive Differences
- Exceptional Sound Quality: 12" LF driver and 2" HF compression driver provide a 39Hz-20kHz frequency range.
- High Power Output: 2000W Class-D amplifier delivers a maximum SPL of 139dB.
- Advanced DSP Processing: 96kHz DSP and FIR filtering ensure high-resolution sound with minimal latency.
- Dante Integration: 2-in/2-out Dante connectivity with sample rate conversion for compatibility with 48kHz devices.
- Versatile Mounting Options: Rotatable horn, dual pole socket angles (0° and -7°), and M10 rigging points.
- Durable Enclosure: Lightweight yet robust plywood cabinet with Polyurea coating.
- Intuitive Control: LCD display for easy DSP adjustments, including PEQ, delay, and routing.
- Advanced Protection & Tuning: D-Contour dynamic EQ and reliable protection circuitry.
Yamaha DZR12-D Description
The
Yamaha DZR12-D is part of Yamaha's first fully integrated line of professional powered loudspeakers, combining state-of-the-art DSP processing, powerful amplification, and flexible connectivity options. Designed for superior clarity and high SPL performance, the DZR12-D features FIR-X tuning, which utilizes FIR filtering for precise phase alignment and optimal frequency response.
This Dante-enabled speaker allows seamless integration into networked audio systems with 2-in/2-out Dante I/O, ensuring smooth communication with 48kHz and 96kHz sample rates. The DZR12-D also includes an onboard LCD display for intuitive DSP control, giving users access to preset management, parametric EQ, delay, and routing functions.
With a rugged yet lightweight enclosure, rotatable 90° x 60° horn, and multiple mounting options, this speaker is suitable for a variety of professional applications, from live performances to fixed installations. The D-Contour intelligent multiband compressor optimizes sound performance at any output level, while high-quality protection circuitry ensures long-term reliability.
DZR12-D Features
- 2-way, bi-amped powered loudspeaker with bass-reflex design
- 12" LF driver with neodymium magnet and 3" voice coil
- 2" HF compression driver with titanium diaphragm and neodymium magnet
- Maximum SPL: 139dB for powerful, distortion-free output
- Frequency range: 39Hz – 20kHz (-10dB)
- 96kHz DSP processing with FIR filtering for low latency and precise tuning
- Dante-enabled with 2-in/2-out connectivity and sample rate conversion
- Customizable DSP functions via LCD interface (PEQ, delay, routing, and more)
- D-Contour intelligent dynamic EQ for optimized performance
- Rotatable horn (90° x 60°) for flexible dispersion control
- Floor monitor mode with 50° symmetrical angle
- Lightweight and durable plywood cabinet with Polyurea coating
- Handles: Two aluminum die-cast side handles for easy transport
- Pole mount: 35mm socket with 0° or -7° tilt
- M10 rigging points (12 total) for secure installation
- Optional accessories: U-brackets (UB-DZR12H/V) and speaker cover (SPCVR-DZR12)
DZR12-D Specifications
- Speaker Type: 2-way, bi-amped powered speaker with bass-reflex
- Amplifier Class: Class-D
- Frequency Range (-10dB): 39Hz – 20kHz
- Maximum SPL: 139dB (measured peak at 1m)
- Coverage Angle: 90° x 60° (rotatable horn)
- Crossover Frequency: 1.8kHz (FIR-X tuning)
- Sampling Frequency: 96kHz with FIR filtering
- A/D D/A Converters: 96kHz

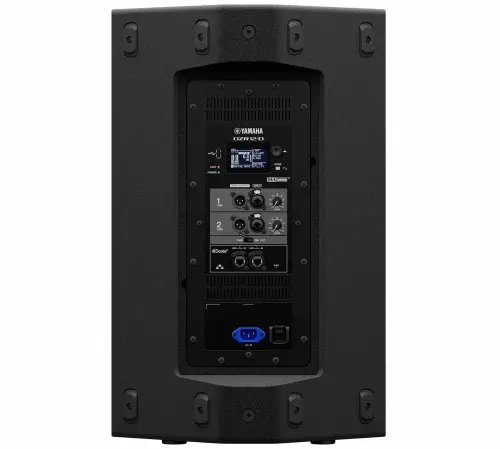

- Analog Inputs: 2 x Combo (XLR/TRS) with max input level of +24dBu
- Analog Outputs: 2 x XLR (CH1: THRU, CH2: THRU or DSP OUT)
- Digital I/O: Dante (etherCON CAT5e, 2-in/2-out, 44.1kHz - 96kHz)
- Power Output:
- Dynamic: 2000W (LF: 1000W, HF: 1000W)
- Burst: 1100W (LF: 1000W, HF: 100W)
- Continuous: 950W (LF: 850W, HF: 100W)
- Cooling System: Variable-speed fan cooling
- Power Consumption: 45W (Idle), 150W (1/8 power)
- Rigging Points: 12 x M10
- Dimensions:
- Width: 16.1" (410mm)
- Height: 25.4" (646mm) (with rubber feet)
- Depth: 15.5" (394mm)
- Weight: 47.2 lbs (21.4kg)
- Enclosure Material: Plywood with Polyurea coating
- Color Options: Black or White
What's in the Box
- Yamaha DZR12-D 12" Powered Loudspeaker
- Power Cable
- User Manual
This high-powered, network-compatible speaker is ideal for professional sound applications, delivering incredible performance with a compact, durable design.
