High-Performance 10" Powered Loudspeaker with Dante Connectivity
The
Yamaha DZR10-D is a premium 2-way bi-amped powered loudspeaker that delivers outstanding clarity, powerful output, and intelligent DSP processing. Designed for professional audio applications, it features Dante connectivity, a high-powered Class-D amplifier, and an impressive maximum SPL of 137dB. With a frequency range of 44Hz-20kHz and Yamaha’s advanced FIR-X tuning, the DZR10-D provides top-tier sound reinforcement for live sound, installed systems, and stage monitoring.
Yamaha DZR10-D Competitive Differences
- 10" LF driver with a neodymium magnet and a 2" HF compression driver with a titanium diaphragm
- Class-D amplifier delivering an impressive 2000W peak power
- Maximum SPL of 137dB for clear and powerful sound
- Advanced 96kHz DSP processing with FIR-X tuning for minimal phase distortion
- Built-in Dante I/O (2 in/2 out) with sample rate conversion (SRC) for compatibility with 48kHz devices
- Customizable DSP settings via an intuitive LCD display
- Durable plywood cabinet with premium-grade Polyurea coating
- Multiple rigging and mounting options, including rotatable horn and U-bracket compatibility
- Dual pole socket (0° or -7° tilt) for flexible placement
- Floor monitor angle of 50° for stage monitoring applications
- Highly reliable protection circuits and D-Contour dynamic EQ
Yamaha DZR10-D Description
The
Yamaha DZR10-D is part of Yamaha’s advanced DZR series, offering best-in-class SPL performance, DSP processing, and premium low-frequency response. Engineered for maximum power and precision, this loudspeaker incorporates a powerful 2000W Class-D amplifier, ensuring high efficiency and minimal distortion. With a robust plywood cabinet coated in durable Polyurea, the DZR10-D is built for rigorous professional use.
Dante connectivity allows seamless integration into digital audio networks, supporting 2-in/2-out routing with built-in sample rate conversion. The onboard 96kHz DSP with FIR-X tuning provides high-resolution sound and significantly reduces latency, making it an excellent choice for demanding live performances, installations, and production environments. Whether used as a main speaker, monitor, or part of a larger system, the DZR10-D delivers consistent, high-fidelity audio.
DZR10-D Features
- High-powered 2-way bi-amped speaker with advanced DSP
- 10" LF driver with 3" voice coil and neodymium magnet
- 2" HF voice coil with 1" throat compression driver
- FIR-X tuning with FIR filtering for superior sound clarity
- Built-in 96kHz AD/DA converters
- High-efficiency 2000W Class-D amplifier
- Intuitive LCD display for DSP control and presets
- Dante I/O (2 in/2 out) with 1000BASE-T Ethernet support
- USB host port for memory storage and data transfer
- Multiple rigging points for flexible mounting
- 50° floor monitor angle for stage use
- Rotatable horn for optimized dispersion
- Durable enclosure with premium Polyurea coating
DZR10-D Specifications
- Speaker Type: 2-way, bi-amped powered speaker, bass-reflex
- Frequency Range (-10dB): 44Hz - 20kHz
- Coverage: 90° horizontal x 60° vertical (rotatable)
- Floor Monitor Angle: 50°
- LF Driver: 10" cone, 3" voice coil, neodymium magnet
- HF Driver: 2" voice coil, 1" throat compression driver, titanium diaphragm, neodymium magnet
- Crossover: 1.8kHz (FIR-X)
- DSP Sampling Rate: 96kHz
- Max SPL Output: 137dB SPL
- Amplifier Class: Class-D
- Power Rating:
- Dynamic: 2000W (LF: 1000W, HF: 1000W)
- Burst (20ms): 1100W (LF: 1000W, HF: 100W)
- Continuous: 950W (LF: 850W, HF: 100W)

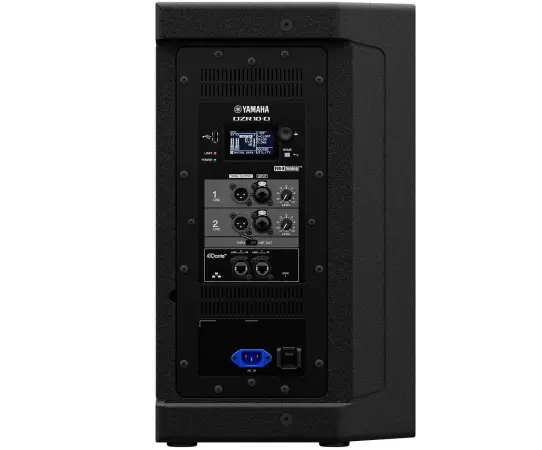

- Analog Inputs: 2 x Combo (XLR/TRS), max +24dBu
- Analog Outputs: 2 x XLR3-32 (CH1: THRU, CH2: THRU or DSP OUT)
- Digital I/O: Dante: 2 in / 2 out via etherCON CAT5e, 1000BASE-T
- USB: USB 2.0 host port for memory storage
- Cooling: Fan cooling with variable speeds
- Power Consumption: 45W (idle), 150W (1/8 power)
- Handles: Aluminum die-cast, top x1, side x1
- Pole Socket: 35mm, dual angles (0° or -7°)
- Rigging Points: M10 x8, M8 x2
- Enclosure Material: Plywood with Polyurea coating
- Color: Black/White
- Dimensions (W x H x D): 12.4" x 21.1" x 13.6" (315mm x 537mm x 345mm)
- Weight: 39.5 lbs (17.9kg)
- Optional Accessories: U-brackets (UB-DZR10H/V), speaker cover (SPCVR-DZR10)
What’s in the Box
- Yamaha DZR10-D Powered Loudspeaker
- Power Cable
- User Manual
