This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

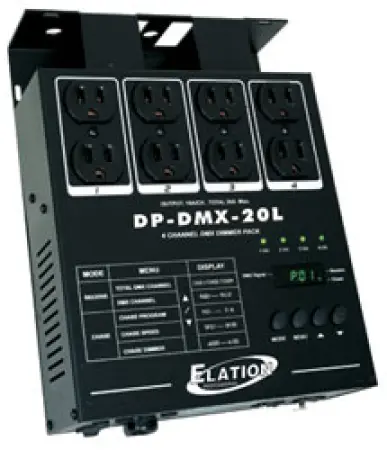

Elation DP-DMX20L (American DJ DPDMX20L)
4 Channel Universal DMX Dimmer Pack
This product is distributed by authorized American DJ Dealers only – Click here
for details
• 4 channel DMX Dimmer Pack
• Digital display- used to set starting DMX address channels and set all other
menu options
• Selectable 1, 2, or 4 channel operation
• Adjustable master dim level.
• Two three prong Edison sockets per channel
• 3 pin XLR DMX Input & Output
• Four LED’s display channel activity
• External channel fuses for quick and easy replacement
• Sleek reversible mounting panel on the rear
• Zero crossing circuitry for protection of transformer loads when switching
• 16 built in Chases when in Chase mode with adjustable speed setting
• Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8, Scene
• Reversible mounting brackets.
• Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller
• Power Input: 120V ~ 60Hz
• Maximum Load: 10A per channel / 20A total
• Dimensions: 10.25”L x 8.25”W x 3”H
• Weight: 6 lbs
