The SIX PAR Z19 IP™ is an IP65 rated 6 color par wash luminaire with zoom, featuring (19) individual 15W 6-IN-1 RGBAW+UV LEDs, 5°to 45° motorized zoom, UV LED Wavelength of 395nm, electronic strobe and variable dimming curve effects, IP rated 5pin DMX and powerCON TRUE1 in/out connections, LCD menu display with (4) touch button control panel, adjustable yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Features:
IP65 Rated 6-Color Par Wash Luminaire
5° to 45° Motorized Zoom
395nm UV LED Wavelength
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking
IP Rated DMX and powerCON TRUE1 Connections
Flicker Free Operation for TV and FILM
Specifications:
SOURCE
(19) 15W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
13,240 LUX 1,230 FC @9.8’ (3m) (5° Full ON)
831 LUX 77 FC @9.8’ (3m) (45° Full ON)
COLOR
RGBAW+UV
EFFECTS
5° - 45° Motorized Zoom
RGBWA + UV Color Mixing
Color and Chase Program Macros
Electronic Strobe and Variable Dim Curves
CONTROL / CONNECTIONS
4 DMX Channel Modes (14 Total Channels)
RDM (Remote Device Management)
4 Button Touch Control Panel
180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
IP Rated 5pin DMX and powerCON TRUE1 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.9" (363mm)
Width: 12.0" (305mm)
Vertical Height: 15.6" (396mm)
Weight: 27 lbs. (12.2 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
282W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65

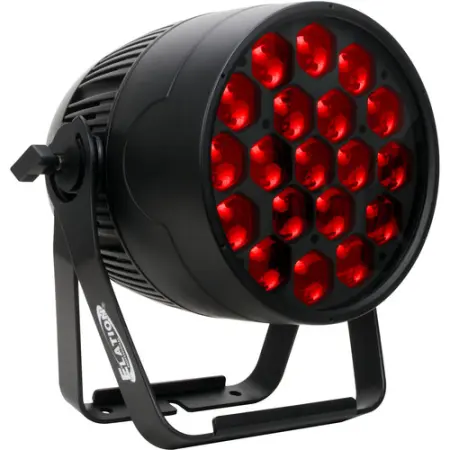

Elation Professional SIXPAR Z19 IP
(Elation SIXPAR Z19IP)
