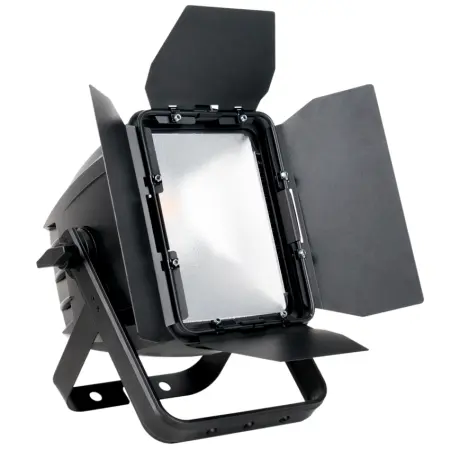

Elation TVL CYC WW

The new TVL CYC WW™ theatre style luminaire features a 150W COB Warm White LED engine, a 90° x 113° elliptical beam angle, 8-leaf adjustable barn doors, strobe and selectable dimming curve effects, 5pin XLR and powerCON in/out connections, (4) button control panel, full color 180° reversible menu display, 180W max power consumption, multiple unit power linking, and a multi-voltage universal auto switching power supply (100-240v).

FEATURES
150W COB Warm White LED
90° x 113° Elliptical Beam Angle
Strobe and Selectable Dimming Curve Effects
Flicker Free Operation for Broadcast TV and FILM
Multiple Unit Power Linking
8-Leaf Adjustable Barn Doors Included

SOURCE
150W COB Warm White LED
20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA (Full ON)
WW:1,602 LUX 149 FC @6.6’ (2m)

EFFECTS
Strobe and Selectable Dimming Curves

COLOR
WW: 3,200K CRI >92

CONTROL / CONNECTIONS
(2) DMX Channel Modes (1 / 2)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
5pin DMX In/Out
powerCON Power In/Out

SIZE / WEIGHT
Length: 15.9 (405mm)
Width: 11.5” (293mm)
Vertical Height: 15.5” (394mm)
Weight: 13.2 lbs. (6 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
Multiple Units Power Linkable
5F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | RoHs | IP20

Elation Professional TVLCYCWW (Elation TVLCYC WW)
