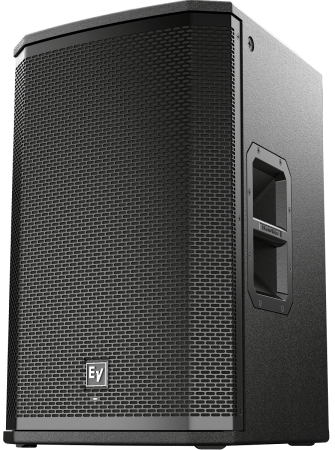

EV ETX10P (Electro Voice EXT 10P)
Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
10-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
134 dB peak SPL
Frequency Range 65 Hz – 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass.
Maximum SPL 134 peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A Current rating is 1/8 power.
Power Rating 2000 W
Frequency Response 85 Hz – 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass.
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
LF Transducer SMX2100 254 mm (10 in)
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 1700 Hz
Connector Type (2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material 18-mm, 13-ply birch plywood with EVCoat
Grill 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Height 526 mm (20.71")
Width 330 mm (12.99")
Depth 365 mm (14.37")
Weight Net 20.3 kg (44.75 lbs)
Shipping Weight 22.9 kg (50.49 lbs)
