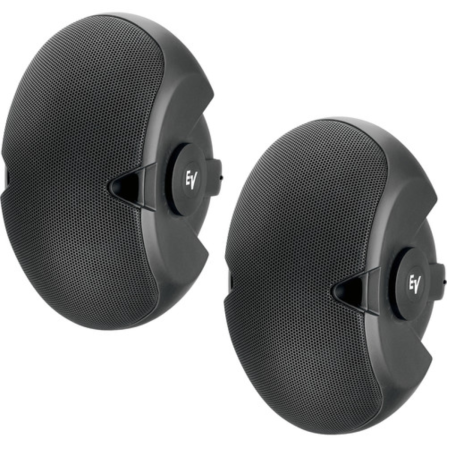

Electro-Voice EVID 4.2 Pair

Surface-Mount Loudspeaker

Electro Voice EVID 4.2 is a compact full-range 2-way surface-mount loudspeaker built for commercial audio installations where clear sound, flexible aiming, and a clean visual appearance are important. Its dual 4-inch low-frequency drivers, titanium high-frequency driver, and weather-resistant enclosure make it a strong choice for restaurants, bars, patios, retail stores, and similar installed sound environments.

Electro Voice EVID 4.2 Competitive Differences

• Dual 4-inch vented low-frequency design delivers full-range performance from a compact enclosure
• Coherent Coverage Waveguide provides wide 120° x 80° coverage for even sound distribution
• Elliptical weather-resistant ABS enclosure meets Mil Spec 810 and IEC 529 IP34 splashproof ratings
• Strong-Arm Mount allows easy installation with flexible swing and rotation aiming
• Available in “T” version for 70V or 100V distributed audio systems

Electro Voice EVID 4.2 Description

The Electro Voice EVID 4.2 is designed for compact commercial sound reinforcement where performance and appearance both matter. Its elliptical ABS enclosure is paintable and available in black or white, making it easy to match the loudspeaker to a wide range of interior or exterior design layouts.

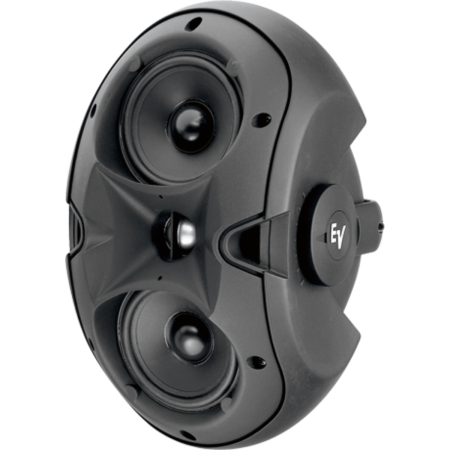

With two 4-inch low-frequency transducers and a 1-inch titanium diaphragm high-frequency driver with a neodymium magnetic structure, the EVID 4.2 delivers clear full-range audio with a frequency response of 65Hz to 20kHz. The vented LF enclosure helps improve low-frequency output, while full-bandwidth overload protection helps protect both LF and HF components during demanding use.

The Coherent Coverage Waveguide provides broad 120° horizontal and 80° vertical coverage when mounted with the long axis in the vertical plane, making the speaker well suited for consistent sound across dining areas, retail floors, patios, bars, and other commercial spaces. The included Strong-Arm Mount offers flexible 100° swing and 90° rotation for precise aiming after installation.

The “T” version supports 70V and 100V distributed systems with selectable transformer taps, while also offering 8-ohm bypass operation. Magnetically shielded construction also makes the Electro Voice EVID 4.2 suitable for video-adjacent applications.

EVID 4.2 Features

• Dual 4-inch 2-way surface-mount loudspeaker
• Compact full-range design
• Ideal for restaurants, bars, patios, retail spaces, and installed audio systems
• Vented low-frequency enclosure
• 1-inch titanium diaphragm high-frequency driver with neodymium magnetic structure
• Coherent Coverage Waveguide
• Full-bandwidth overload protection for LF and HF components
• Elliptical weather-resistant ABS enclosure
• Paintable black or white finish
• Magnetically shielded for video applications
• Strong-Arm Mount for easy and flexible aiming
• “T” version available for 70V or 100V distributed systems

EVID 4.2 Specifications

• Speaker Type: Dual 4-inch 2-way surface-mount loudspeaker
• Frequency Response: 65Hz - 20kHz (-10 dB)
• Power Handling: 200W continuous program / 400W peak
• Sensitivity: 89 dB, 1W/1m
• Impedance: 8 ohms
• Max SPL: 113 dB
• Horizontal Coverage: 120°
• Vertical Coverage: 80°
• Crossover Frequency: 2.2 kHz
• LF Transducer: 2 x 4 in (100 mm)
• HF Transducer: 1 in (25 mm)
• Protection: Full system
• Weather Resistance: Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP34 splashproof ratings
• Swing x Rotation: 100° x 90°
• Terminals: Phoenix connector
• Enclosure Material: Paintable ABS
• 70V Taps: 3.75W, 7.5W, 15W, 30W
• 100V Taps: 7.5W, 15W, 30W
• Bypass: 8 ohm
• Dimensions: 12.2 x 6.9 x 8.5 in (234 x 127 x 165 mm)
• Net Weight: 8.5 lb (3.9 kg) each
• Shipping Weight: 19 lb (8.6 kg) pair

What's In The Box

• Electro Voice EVID 4.2 loudspeaker
• Strong-Arm Mount
• Hex key

Electro-Voice EVID 4.2 (Electro-Voice EVID-4.2)
