Surface-Mount Installation Speaker
Electro Voice EVID 4.2T is a compact full-range 2-way surface-mount installation speaker designed for commercial environments requiring flexible mounting and distributed audio capability. With dual 4-inch woofers, a titanium high-frequency driver, and an integrated 70V/100V transformer, it is well suited for restaurants, patios, bars, retail spaces, and outdoor venues where space is limited.
Electro Voice EVID 4.2T Competitive Differences
- Integrated 70V/100V transformer with selectable wattage taps and 8-ohm bypass
- Dual 4-inch woofers deliver enhanced low-frequency performance in a compact enclosure
- Coherent Coverage Waveguide ensures consistent 120° x 80° dispersion
- Weather-resistant ABS enclosure suitable for indoor and outdoor use
- Strong-Arm Mount system allows 100° swing and 90° rotation for precise aiming
Electro Voice EVID 4.2T Description

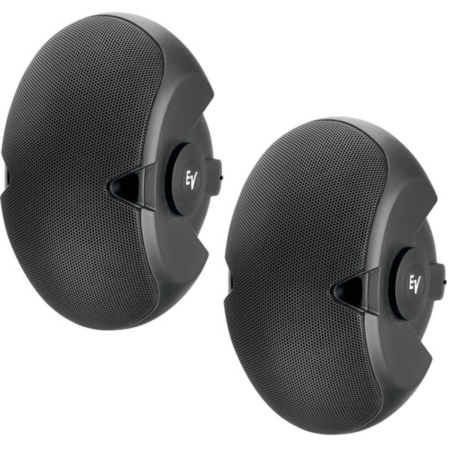

The Electro Voice EVID 4.2T is engineered for professional installed sound applications where clarity, coverage, and flexibility are critical. Sold as a pair, these passive loudspeakers combine compact size with impressive output, making them an excellent choice for distributed audio systems in hospitality and retail environments.

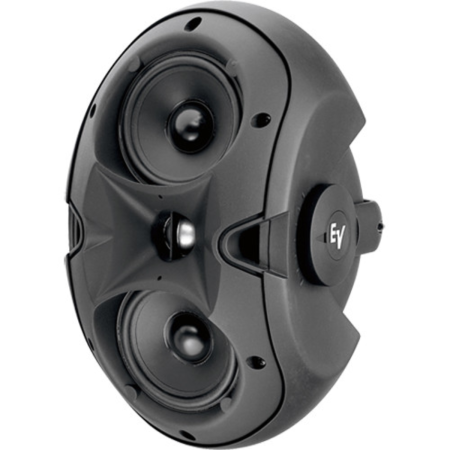

Each speaker features dual 4-inch low-frequency drivers that provide extended bass response beyond typical compact speakers, while the 1-inch titanium dome tweeter with neodymium magnets delivers clear and controlled high-frequency performance. The Coherent Coverage Waveguide ensures even sound dispersion across a wide listening area, maintaining consistent audio quality throughout the space.
The built-in transformer supports 70V and 100V distributed systems with selectable power taps, along with an 8-ohm bypass option for standard low-impedance setups. With 200W continuous and 400W peak power handling, the EVID 4.2T offers reliable performance for both background and foreground music applications.
Its rugged, weather-resistant ABS enclosure is designed for both indoor and outdoor use, meeting demanding environmental conditions. The included cast-aluminum Strong-Arm Mount (SAM) provides secure installation and flexible positioning with up to 100° of horizontal swing and 90° of vertical rotation, allowing precise coverage in any installation scenario.
EVID 4.2T Features
- Passive 2-way installation loudspeaker (pair)
- Integrated 70V/100V transformer with multiple power taps
- Dual 4-inch woofers for enhanced low-frequency output
- 1-inch titanium dome tweeter with neodymium magnetic structure
- Coherent Coverage Waveguide for wide, even dispersion
- Vented low-frequency enclosure with dual bass ports
- Full-bandwidth overload protection
- Weather-resistant, paintable ABS enclosure
- Magnetically shielded for use near video displays
- Strong-Arm Mount (SAM) with flexible aiming
- Suitable for patios, restaurants, bars, and retail installations
EVID 4.2T Specifications
- Speaker Type: Passive 2-way surface-mount loudspeaker
- Frequency Response: 65 Hz - 20 kHz
- Power Handling: 200W continuous / 400W peak
- Sensitivity: 89 dB (1W/1m)
- Max SPL: 113 dB
- Impedance: 8 ohms
- Coverage: 120° H x 80° V
- Crossover Frequency: 2.2 kHz
- LF Drivers: 2 x 4 in (100 mm)
- HF Driver: 1 in (25 mm)
- Transformer Taps: 70V: 3.75W; 70V/100V: 7.5W, 15W, 30W
- Bypass: 8 ohm
- Input Connections: Euroblock (Phoenix)
- Enclosure Material: Paintable ABS
- Environmental: Weather-resistant for indoor/outdoor use
- Dimensions: 12.2 x 6.9 x 8.5 in
- Weight: 8.5 lb (3.9 kg) each
- Package Weight: 22.15 lb
What's In The Box
- 2 x Electro Voice EVID 4.2T speakers
- Strong-Arm Mount assemblies
- Hex key
Electro-Voice EVID 4.2T
(Electro-Voice EVID-4.2T)
