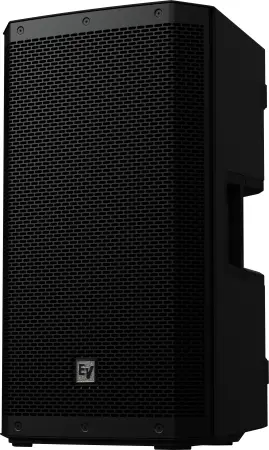

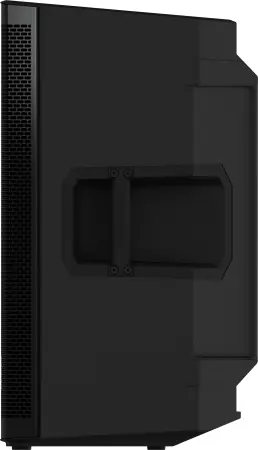

Electro-Voice ZLX15 G2

ZLX-G2 loudspeakers are offered in 8, 12, and 15-inch
woofer sizes.

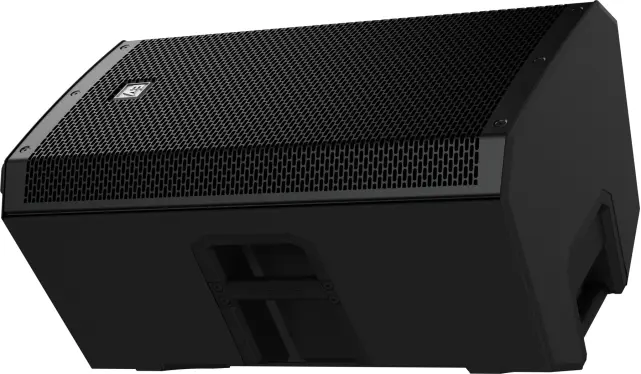

Building on the tried and tested ZLX series, ZLX-G2
loudspeakers feature an improved angled cabinet
design allowing for a 55-degree monitor angle. 12 and
15-inch models additionally include a “kickback” 25-
degree monitor angle.
ZLX-G2 loudspeakers offer the best-in-class acoustic
output. Electro-Voice patented SST baffle design
ensures improved bass, small size, and even coverage
across all frequencies.
ZLX-12-G2 uses industry standard NL4 connections. The
two NL4 connectors are in parallel and pass through all
pins.
For optimal acoustics and performance, ZLX-12-G2 is
recommended to be used with a Dynacord DSP power
amplifier programmed with the appropriate speaker
settings included in the ZLX-G2 Database for SONICUE.

ZLX-G2 family accessories such as padded covers, a U-
bracket for wall mounting 12- and 15-inch models, and

short and long wall mount brackets for use with the
speaker pole mounts are available.

FEATURES:

Includes 55-degree monitor angle plus 23-
degree kickback angle.
Recommended to use with Dynacord DSP
power amplifiers.
SONICUE integration - optimized speaker
settings for best performance.
Connections easily accessible even in monitor
position.

SPECIFICATIONS:

Frequency response (-3 dB) (Hz) 1

69 Hz – 18,500 Hz

Frequency range (-10 dB) (Hz) 1

55 Hz – 20,000 Hz
Axial sensitivity (dB SPL 1W/1m) 93 dBspl 1W/1m
Maximum sound pressure level at a
distance of 1 m (dB) 1

130 dB
High pass frequency (Hz) 48 Hz
Crossover frequency (kHz) 2 kHz
Coverage angle HxV (°) 90° x 60°
Power handling (continuous) (W) 250 W
Power handling (peak) (W) 1,000 W
Nominal impedance (Ω) 8 Ω
LF transducer WECA2128
LF transducer size (in) 12 in
LF transducer magnet material Ferrite
HF transducer DH-1K
HF transducer type Compression driver
HF transducer size (in) 1.5 in
HF transducer diaphragm material Titanium
Dimensions (H x W x D) (mm) 621.1 mm x 356.2 mm x 356 mm
Dimensions (H x W x D) (in) 24.45 in x 14.02 in x 14.01 in
Shipping dimensions (H x W x D)
(mm)

670 mm x 420 mm x 405 mm

EV ZLX-15 G2 (Electro-Voice ZLX-15 G2 Passive)
