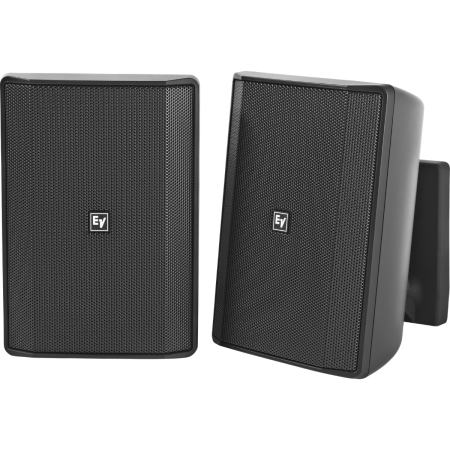

Electro-Voice EVID-S5.2B

Surface-Mount Installation Speaker

Electro-Voice EVID-S5.2B is a black 5.25-inch two-way surface-mount speaker pair designed for background music, foreground audio, paging, and sound reinforcement. With IP54 weather resistance, compact ABS enclosures, and included mounting hardware, it is well suited for restaurants, bars, patios, retail spaces, fitness clubs, hospitality venues, and other indoor or outdoor installations.

Electro-Voice EVID-S5.2B Competitive Differences

• Included mount system provides 90° horizontal rotation and 45° vertical rotation for flexible wall or ceiling placement
• IP54 weatherized design helps protect against sun, salt, and moisture without sacrificing sound quality

Electro-Voice EVID-S5.2B Description

The Electro-Voice EVID-S5.2B delivers full-range performance from a 5.25-inch long-throw woofer and 0.75-inch high-frequency driver. Its 90° x 90° coverage pattern helps provide consistent sound across commercial spaces, making it useful for distributed audio, background music, paging, and light sound reinforcement.

Each speaker is built into a fire-rated ABS plastic enclosure and is engineered for reliable indoor and outdoor operation. With 75W power handling and a calculated 109 dB maximum SPL, the EVID-S5.2B offers strong output for its compact size.

The included Electro-Voice mounting system comes assembled for quick installation and supports both wall and ceiling mounting. Captive screw connections on the wall bracket and removable locking Euroblock connections make wiring simple, with pass-through support for additional speakers in distributed systems.

EVID-S5.2B Features

• Black 5.25-inch two-way surface-mount speaker pair
• 8-ohm low-impedance operation
• Long-throw 5.25-inch woofer for extended low-frequency performance
• 0.75-inch high-frequency transducer
• 75W power handling
• 109 dB maximum SPL / 115 dB peak
• 60 Hz – 20 kHz frequency range
• 90° x 90° nominal coverage
• IP54 weatherized construction for indoor and outdoor use
• Fire-rated ABS plastic enclosure
• Included mount system for quick and reliable installation
• Supports wall or ceiling mounting
• Transformer version available separately as EVID-S5.2T

EVID-S5.2B Specifications

• Speaker Type: Passive 2-Way Surface-Mount Speaker Pair
• Frequency Range: 60 Hz – 20 kHz (-10 dB)
• Frequency Response: 85 Hz – 20 kHz (-3 dB)
• Max SPL: 109 dB Continuous / 115 dB Peak
• Sensitivity: 90 dB, 1W/1m
• Power Handling: 75W
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6 Ohms
• Coverage: 90° H x 90° V
• LF Driver: 5.25 in (133 mm)
• HF Driver: 0.75 in (20 mm)
• Recommended High Pass: 60 Hz
• Connector Type: Captive Screws on Wall Bracket; Removable Locking 4-Pin Euroblock for Distributed Line Connection
• Maximum Wire Size: 12 AWG (2.5 mm²)
• Weatherized: Yes
• Environmental Rating: IP54
• Color: Black
• Dimensions: 10 x 7.1 x 5.9 in (255 x 180 x 151 mm)
• Net Weight: 6 lb (2.7 kg) per pair
• Shipping Weight: 14.8 lb (6.7 kg)

What's In The Box

• 2 x Electro-Voice EVID-S5.2B Speakers
• Mounting Brackets

Electro-Voice EVID-S5.2B (Electro-Voice EVID-S5.2)
