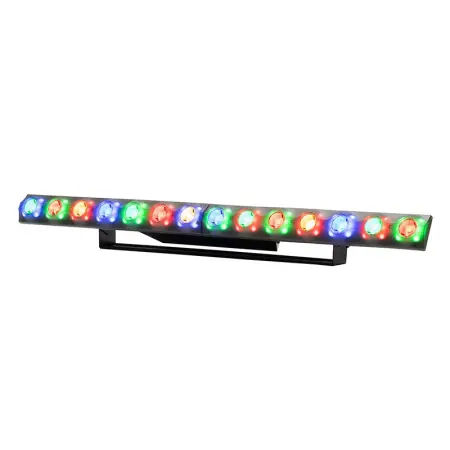

The Eliminator Lighting Frost FX BAR RGBW is a 1-meter linear entertainment lighting fixture that creates color washes and breathtaking color chase effect. It has two types of color LEDs in one fixture. It has fourteen 3W RGBW LEDs with ACL lens across the front of the fixture to create intense color beam effects. Plus, it has eighty-four RGB SMD LEDs behind a frosted plastic lens that create glowing color chase patterns. Both sets of LEDs run independently.
Each fixture has 45 built-in lightshows that can be triggered from the on-board 4-button display controls or run in DMX, sound or primary/secondary configurations. Multiple fixtures may be linked together through 3-pin DMX In/Out data connections and locking power in/out connections to so that the power may be daisy chained from one fixture to another.
Users may choose from 64 built-in color macros and 8 flexible DMX channel modes. The fixture offers 0-100% electronic dimming and requires a maximum of 55W per unit.
The Frost FX Bar RGBW horizontally or vertically for unique effects for stages, bars, lounges, clubs, bands and mobile entertainers. Multiple fixtures may be placed directly next to each other to create a seamless band or color light.
FEATURES:
1-meter LED linear wash fixture that chases colors and creates engaging effects
Light sources: 14x 3W RGBW (4-IN-1 – Red, Green, Blue & White) LEDs + 84x 5050 RGB (3-IN-1) SMD LEDs
17-degree beam angle
SPECIFICATIONS
SOURCE:
1-meter LED linear wash fixture that chases colors and creates engaging effects
Light sources: 14x 3W RGBW (4-IN-1 – Red, Green, Blue & White) LEDs + 84x 5050 RGB (3-IN-1) SMD LEDs
17-degree beam angle
CONTROL:
4-button LED function display
8 DMX channel modes (3, 7, 11, 18, 102, 107 & 111-channel modes)
4 operation modes: DMX, Auto, Sound and Primary/Secondary
With wired digital communication network
0-100% Electronic Dimming
64 built-in color macros
45 built-in shows

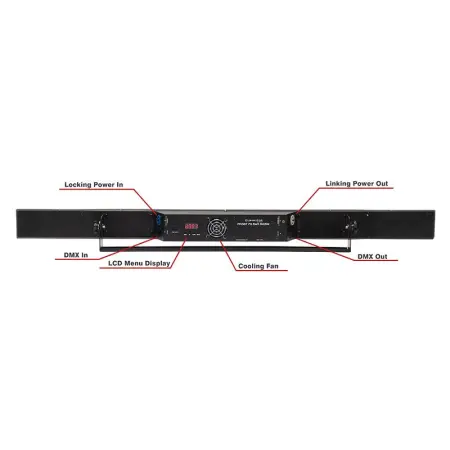

CONNECTIONS:
3-pin DMX In/Out connections to link data
Locking power In/Out connections to daisy chain power
ELECTRICAL:
Max power: 55W
Multi-voltage operation: AC 110-240V, 50/60Hz
DIMENSIONS/WEIGHT:
Dimensions (LxWxH): 39.4” x 2.8” x 4.9” / 1000x71x125mm
Weight: 7 lbs. / 3.3 Kg.
INCLUDED:
Adjustable Angle Hanging Bracket
Power cable
