Eliminator Lighting Elektron Bar FX | 7-Zone Amber...
$649.99
The Eliminator Lighting Elektron Bar FX is a 1-meter multifunctional lighting fixture that combines powerful warm amber blinder and strobe effects with vibrant RGB washes and animated color chases. Its dual-source design allows mobile entertainers, lighting designers, venues, and production companies to create high-impact looks using a single compact fixture.

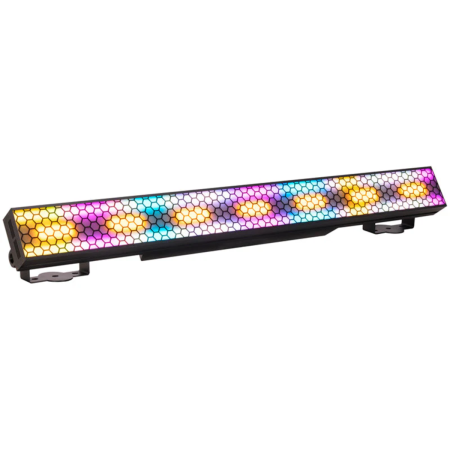

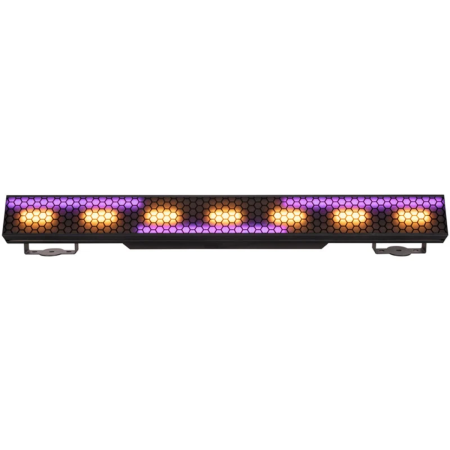

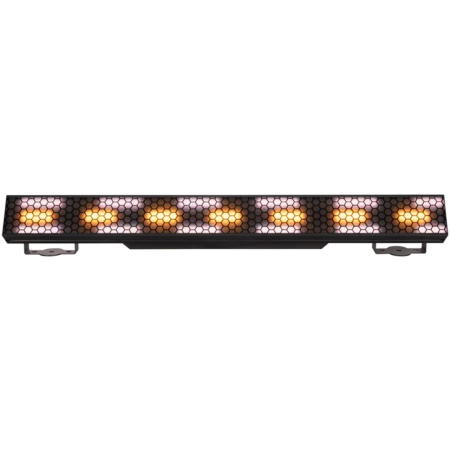

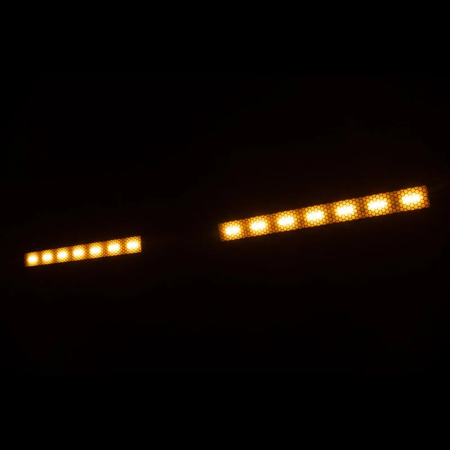

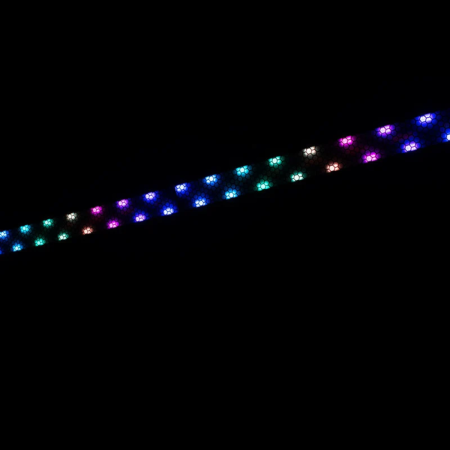

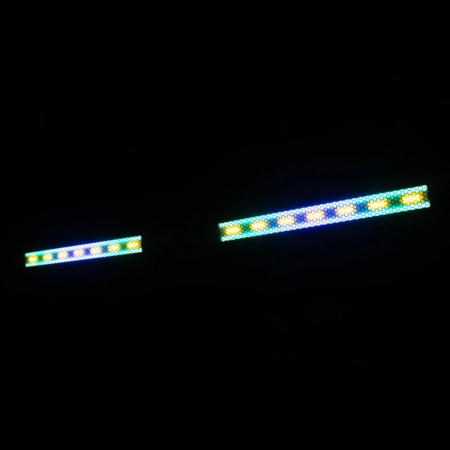

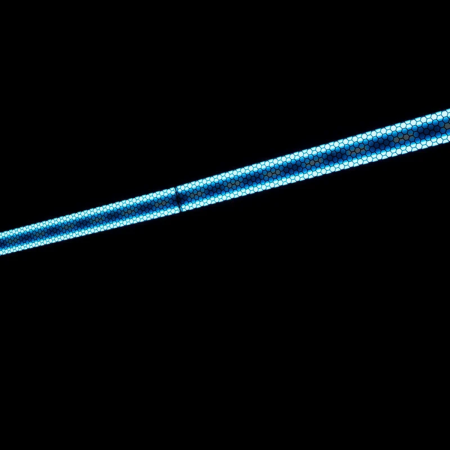

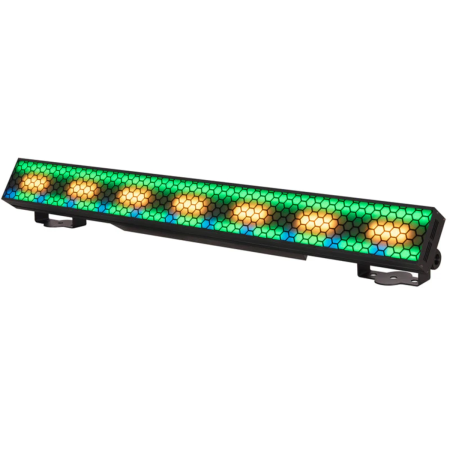

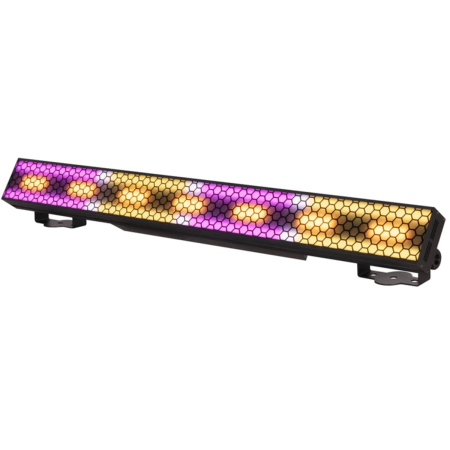

The Eliminator Lighting Elektron Bar FX uses seven 40W amber LEDs with a warm 1800K color temperature to produce intense blinder hits and strobe effects. Behind the amber sources, 528 RGB SMD LEDs create saturated color washes, flowing chase patterns, and animated pixel-style effects.
The amber LEDs are divided into seven controllable zones, while the RGB array provides 66 zones for detailed programming. Operators can access 60 built-in programs with adjustable speed or use 7-, 12-, and 20-channel DMX modes to integrate the fixture into more advanced lighting designs.
Full-range electronic dimming, six selectable dimming modes, four dimming curves, and an adjustable refresh rate from 900Hz to 25kHz provide control for live productions, theatrical environments, and camera-based applications. The strobe rate is adjustable from 0 to 20 flashes per second for effects ranging from slow pulses to rapid flashes.

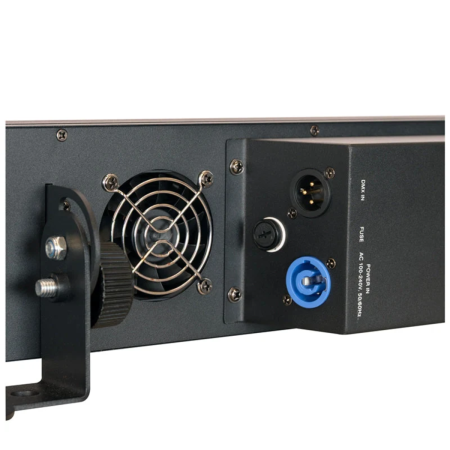

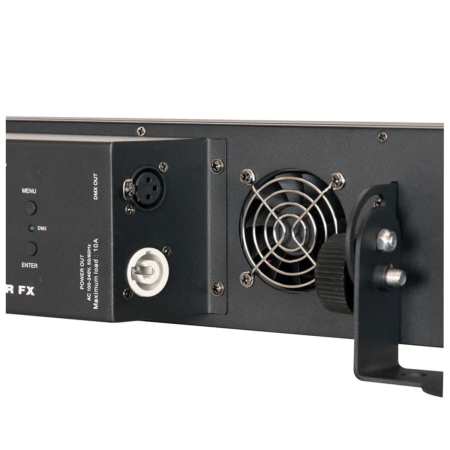

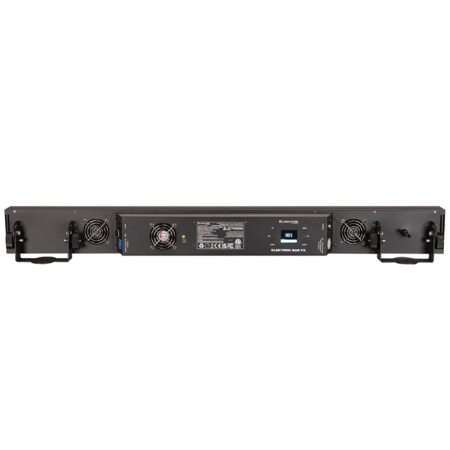

A durable metal housing, three-fan cooling system, locking power connections, and locking 3-pin DMX connectors support reliable operation during extended events. Two adjustable mounting brackets allow the fixture to be installed on truss or positioned on the floor for uplighting, audience effects, and stage backlighting.
| Beam Angle | Not specified degrees |
| IP Rating | IP20 |
| LED Type | 7 x 40W 1800K amber LEDs, 528 x 0.5W 5050 SMD RGB LEDs |
| Power Consumption | 300W at 120V W |
| Voltage Range | 100–240V AC, 50/60Hz V |
| Wattage | 7 x 40W W |
| Brand | American DJ |
| Name | Eliminator Lighting Elektron Bar FX |
| Primary Category | Lighting Fixture |
| Control Interfaces | Locking 3-pin DMX input and output connectors, Four-button digital LCD control display |
| Dimensions | 39.5 x 4 x 5.2 in (1000 x 100 x 131 mm) |
| Included Accessories | Two adjustable mounting brackets, IP20 locking power cable |
| Mounting Options | Two adjustable mounting brackets for suspended installation or floor placement |
| Weight | 11.7 lb (5.3 kg) kg |
| DMX Channel Modes | 7, 12, or 20 channels |
