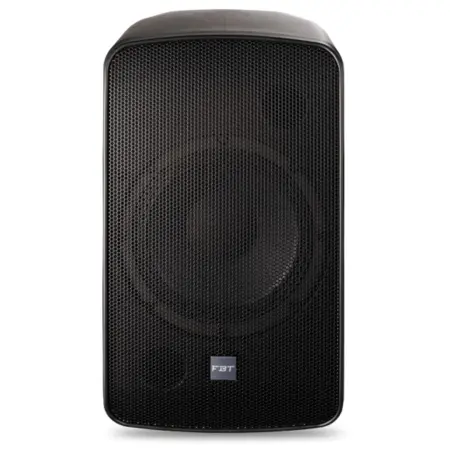

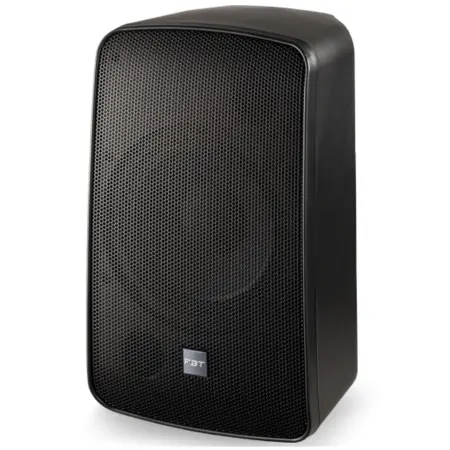

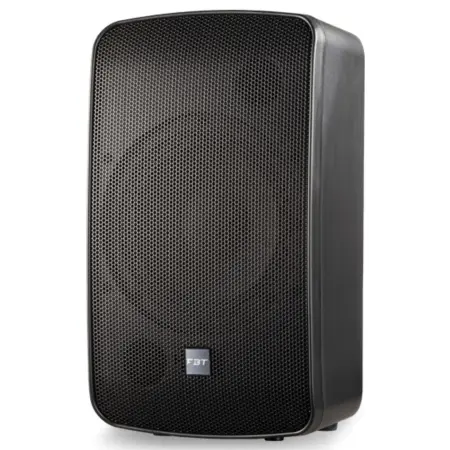

FBT Canto 8CA

High-Powered Coaxial Speaker for Indoor Sound Installations

The FBT Canto 8CA is a premium, coaxial active speaker designed for professional indoor installations that demand high SPL, clarity, and reliability. Its 8" LF driver and 1" HF dome tweeter, powered by an integrated Class-D amplifier with onboard DSP, make it ideal for a wide range of commercial applications where performance and durability matter.

FBT Canto 8CA Competitive Differences

• Custom coaxial 8” woofer (2” VC) and 1” dome tweeter (1.4” VC) for precise sound reproduction
• Powerful 200W LF + 100W HF Class-D amplifiers
• Onboard DSP with dynamic EQ, protection, and 4 selectable presets
• 80° conical dispersion for focused sound coverage
• Gas-injected polypropylene enclosure reduces resonance and adds structural integrity
• Auto standby mode and universal switch-mode PSU for energy efficiency
• Elegant and durable design available in black or white finishes

FBT Canto 8CA Description

The FBT Canto 8CA is engineered for sound installations that require high output, detailed audio, and reliable performance. Featuring a coaxial 8-inch woofer and a 1-inch dome tweeter, this speaker provides accurate sound reproduction with consistent phase response and dispersion. With its 200W LF and 100W HF Class-D amplifiers, the Canto 8CA offers powerful output and efficiency. The onboard DSP includes four user-selectable presets for optimizing sound in different acoustic environments. Built-in protection and dynamic equalization ensure consistent performance even at high SPL levels. The cabinet is made from gas-injected polypropylene, offering rigidity and internal damping to eliminate unwanted resonances. It’s also compact and versatile, with installation hardware options and a modern aesthetic that blends easily into most professional settings. Whether in hospitality, retail, or conference environments, the Canto 8CA delivers professional-grade audio with minimal visual intrusion.

Canto 8CA Features

• Coaxial 2-way speaker with 8” woofer (2” VC) and 1” dome tweeter (1.4” VC)
• 200W LF + 100W HF Class-D amplifier
• 80° conical dispersion for focused coverage
• Built-in DSP with 4 EQ presets and protection circuits
• XLR input with link output
• Volume control, HP filter switch, and status LED
• Universal voltage switch-mode power supply with auto standby
• Available in black or white

Canto 8CA Specifications

• Configuration: 2-way coaxial
• Amplification: 200W LF + 100W HF Class-D
• Frequency response: 50Hz – 20kHz (-6dB)
• Max SPL (continuous/peak): 120 / 125 dB
• Dispersion: 80° conical
• Input impedance: 22 kOhm
• Input connector: XLR with loop output
• Power cord length: 16.4 in (5m)
• Net dimensions (W x H x D): 9.44 x 16.37 x 9.44 in (240 x 416 x 240 mm)
• Net weight: 13.9 lb (6.3 kg)
• Shipping dimensions (W x H x D): 12.28 x 19.25 x 11.5 in (312 x 489 x 292 mm)
• Shipping weight: 16.1 lb (7.3 kg)

FBT USA Canto 8 CA (FBT Canto 8CA Black)
