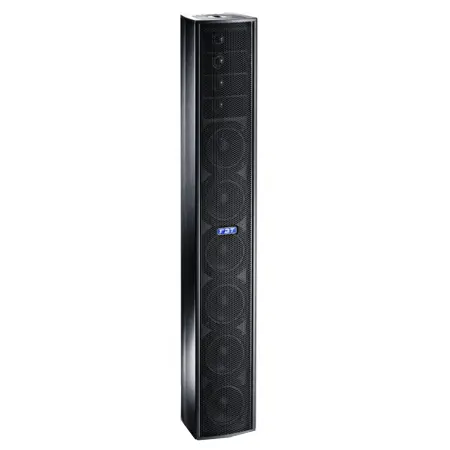

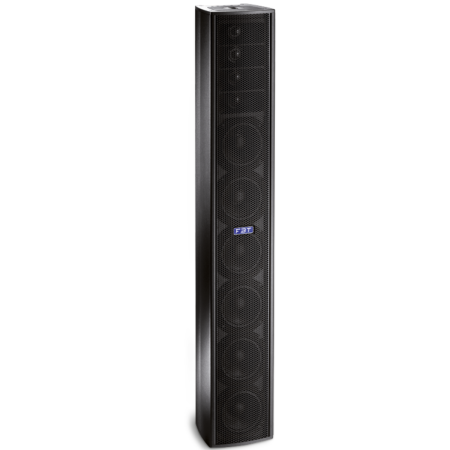

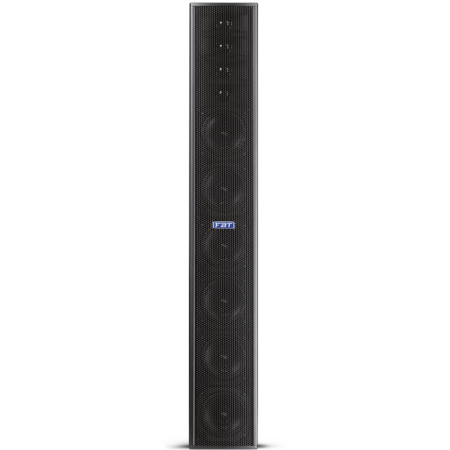

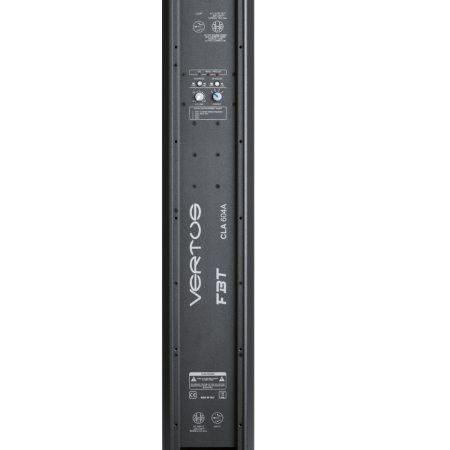

The FBT VERTUS CLA 604A two-way bi-amplified speaker system incorporates 6 x 4” custom woofer with 1” voice coil and 4 x 1" neodymium dome tweeter on waveguide. The internal Class D amplification, 400W for woofers, 100W for tweeters and DSP processor with 4 equalization presets provide unexpected dynamics in a system of these dimensions. The FBT VERTUS CLA604A shall meet the following performance criteria: frequency response of 130Hz to 20kHz, maximum SPL of 125dB. The FBT VERTUS CLA604A provides a DSP with 4 EQ presets. The feature an extruded aluminum construction and the front shall be protected by a heavy duty metal grille. The control panel provides volume, preset, HP filter, sources switch, 3 status led (on,peak, prt/limit ), XLR input and Neutrik Powercon supply input at the lower part of the column and XLR link and Neutrik Powercon loop out at the higher part. Superior as well as inferior latching system, enables the extension of the length of the line array adding CLA 604A modules for a greater modularity of the system and possibility to angle the columns of ±30° on the horizontal plane. The rapid latching system with pins allows for the expansion of the system, doubling-up CLA 208 SA modules to form a unified column with an absolute and coherent source integration.
Features:
2 way bi-amplified line array column
Extruded-aluminum powder coated cabinet
High level sound quality
Long distance sound projection
6 x 4" custom woofer with 1" voice coil
4 x 1" neodymium dome tweeter on waveguide
Class D 400W RMS amplifier for LF
100W RMS for HF with switch mode power supply
DSP processor with 4 presets
100°H x 20°V dispersion
Completely Manufactured in Italy
Applications:
School and corporate audio visual sound reinforcement
Background music/announcement: Restaurants, Pubs
Transportation terminals, Clubs,Auditorium, Theatres,
Gyms, Houses of worship
Ideal for both live applications, assisted by the CLA
208SAactive subwoofer, as well as for fixed installation
Specifications:
Configuration: 2 way
Built-in amplifier cont. LF/HF W RMS: 350 / 80
Built-in amplifier max. LF/HF W RMS: 400 / 100
Built-in amplifier max. peak LF/HF W 800 / 200
Frequency response @-6dB: 130Hz - 20KHz
Low frequency woofer inch: 6 x 4” - 1” coil
High frequency driver inch: 4 x 1” - 1” coil
Maximum SPL cont/peak dB: 122 / 125
Dispersion H x V: 100° x 20°
Input impedance: kOhm 22
Crossover frequency: kHz 2.5
AC Power requirements: VA 450
Input connectors: XLR with loop
Power cord: 16.4FT
Net dimensions (WxHxD) mm: 130x841x130
Net dimensions (WxHxD) inch: 5.12x33.1x5.12
Net weight: Kg/Lb 9 / 19.84
Transport dimensions (WxHxD): mm 220x930x220
Transport dimensions (WxHxD): inch 8.66x36.61x8.66
Transport weight: Kg/Lb 11.5 / 25.35
