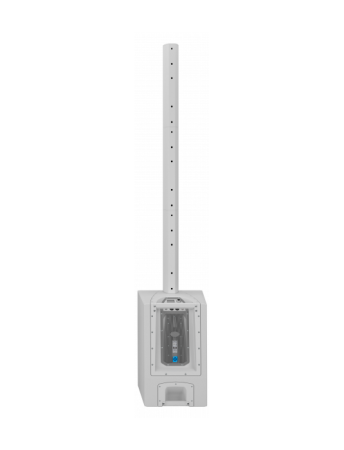

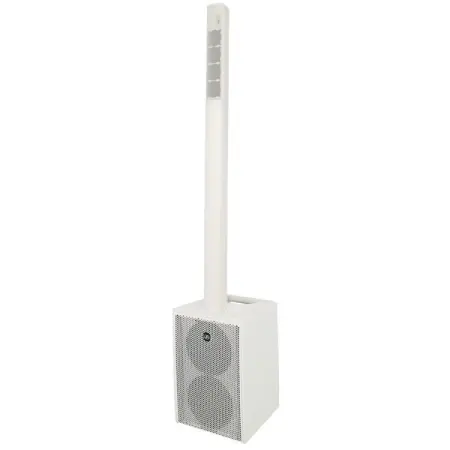

DAS Altea Duo-20A-W | 2000W Powered 3-Way Portable Column System
The DAS Altea Duo-20A-W is a versatile and powerful 3-way portable column system, designed for a wide range of mobile applications such as corporate events, live music, and conferences. With a peak power output of 2000W, it offers excellent sound quality, ensuring crystal-clear audio with impactful bass and detailed highs. The system features a two-channel Class D amplifier, Bluetooth connectivity, and a user-friendly DSP interface for easy control and customization.
Altea Duo-20A-W Competitive Differences
- 3-Way Powered Column System with Wooden Subwoofer
- 2000W Peak Power for Robust Sound
- Integrated DAScontrol™ DSP with LCD Display
- Wireless Audio Streaming with DASlink GM
- Ultra-Low Power Consumption of 1.5A at 230V
Applications
- Corporate A/V
- Conferencing
- Portable and Live Clubs
- Houses of Worship
- DJ Mobile Parties
Full Product Description
The DAS Altea Duo-20A-W is a polypropylene-injected portable column system with a wooden subwoofer, tailored for mobile sound applications. It features a 2000W peak power output driven by a two-channel Class D amplifier, providing superior sound dynamics and clarity. The built-in DSP board with DAScontrol technology offers multiple acoustic modes and easy navigation via a rotary knob and LCD display. The system also supports wireless audio streaming and can be controlled remotely using the DASlink GM app.
Features
- 3-Way Powered Portable Column System
- 2000W Peak Power Output
- 127 dB Maximum Peak SPL
- Dual 10" Birch Plywood Subwoofer
- 4x 3" Drivers + 1x M27N Neodymium Compression Driver
- Ultra-Lightweight Class D Amplifier with SMPS
- DAScontrol™ 24-bit DSP with LCD Screen
- 5 Voicing Presets
- Bluetooth Stereo Streaming with DASlink GM
- Low Power Consumption: 1.5A at 230V
Specifications
- Frequency Range: 37 Hz – 20 kHz (-10 dB)
- Horizontal Coverage: 100º (-6 dB)
- Vertical Coverage: 50º
- Max SPL at 1m: 127 dB
- Nominal Amplifier Power: 1000W (Continuous), 2000W (Peak)
- Input Impedance: 20 kohms
- Audio Inputs: 1x 1/4" TRS, 1x Wireless Bluetooth, 2x XLR/TRS Combo
- AUX Input: 1x 3.5 mm Mini Jack
- Dimensions: 78.0 x 14.2 x 17.5 inches
- Net Weight: 68.3 lbs
- Shipping Dimensions: 27.5 x 28.5 x 22.5 inches
- Shipping Weight: 85.9 lbs
DAS Audio Altea Duo-20A-W
(DAS Altea-Duo 20 A White)
