HH Electronics TNI-C6-WH

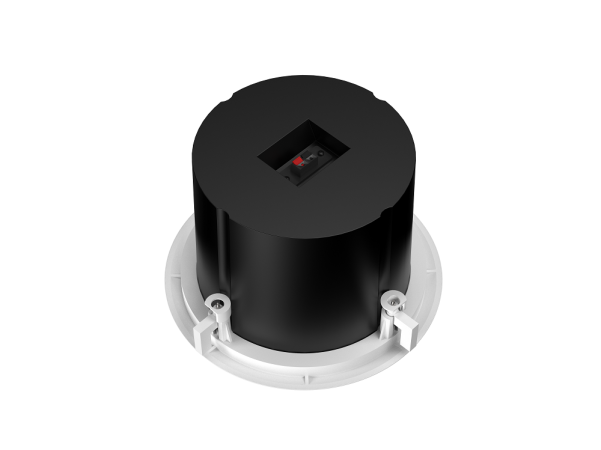

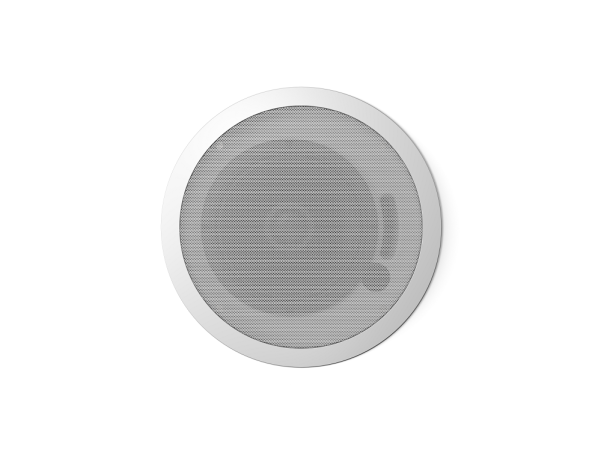

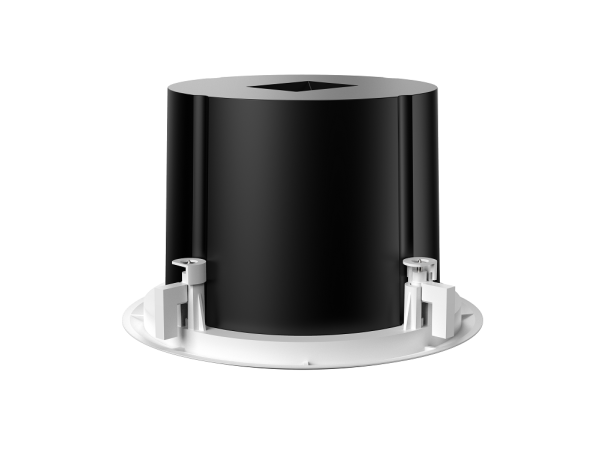

The Tessen TNi-C6 delivers premium audio reinforcement. designed with the installer in mind, The TNi-C6 – 6.5 inch coaxial ceiling speaker - features a 6 position power tap selector located under the front steel grille, providing swift output adjustment once installed. With connectivity for 70V/100V and 8 ohm low impedance lines, The TNi-C6 delivers a highly flexible solution. The spring connection terminals ensure cables are secure once fitted.

SPECIFICATIONS:

100V Power Options
40W, 20W, 10W
70V Power Options
20W, 10W, 5W
Frequency Response (-10)
75Hz > 20kHz
Frequency Response (-3)
85Hz - 16KHz
LF Driver
6.5 Inch, Paper Cone
HF Driver
1.5 INCH NEODYMIUM
Low Nominal System Impedance
8 OHM
Power
55W AES, 220W Peak
Max SPL (1M) (Peak)
113 dB SPL
Sensitivity (1W/1M)
90 DB SPL
Nominal Coverage
120° conical
Input Connector
PUSH SPRING CONNECTORS
Mounting Points
4X DOG EAR BRACKETS
Mounting Depth
176MM, (6.9")
Installation Grip Range
4 - 20MM
Cutout
235MM, (9.3")
Outside Diameter
260MM, (10.2")
Unit Weight
2.1KG, 4.6 LBS
Main Construction Material
ABS PLASTIC
Grille
1.5MM CIRCULAR MESH STEEL
Finish
WHITE

HH Audio TNI-C6 (HH Electronics TNi-C6 Ceiling Speaker)
