HH Electronics TNI-W6-BK | 6in - 113dB
$169.99

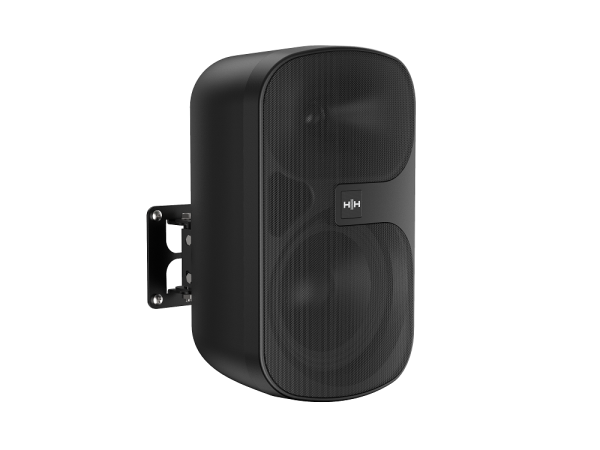

The TNi-W6 delivers professional audio output and versatility within a compact, wall mount speaker enclosure. The TNi-W6 – 6.5 inch passive speaker - features 4 power tappings ranging from 2.5W - 40W and can be connected to 70V/100V or 8 ohm low impedance lines. Equipped with euroblock and m4 screw terminals, The TNi-W6 offers a wide array of connections within a single unit. With solid steel, multi-angle bracket included, The TNi-W6 comes with all essential installation components.
SPECIFICATIONS:
100V Power Options
40W, 20W, 10W, 5W
70V Power Options
20W, 10W, 5W, 2.5W
Frequency Response (-10)
65Hz > 20KHz
Frequency Response (-3)
80Hz - 18KHz
LF Driver
6.5 inch Paper
HF Driver
1" DOME TWEETER
Low Nominal System Impedance
8 OHM
Power
55W AES, 220W Peak
Max SPL (1M) (Peak)
113 dB SPL
Sensitivity (1W/1M)
90 DB SPL
Recommended Amplifer
100-200W @ 8 Ohms
Horiz. Dispersion Angle 1000Hz
90°
Vertical Dispersion Angle 1000Hz
80°
Input Connector

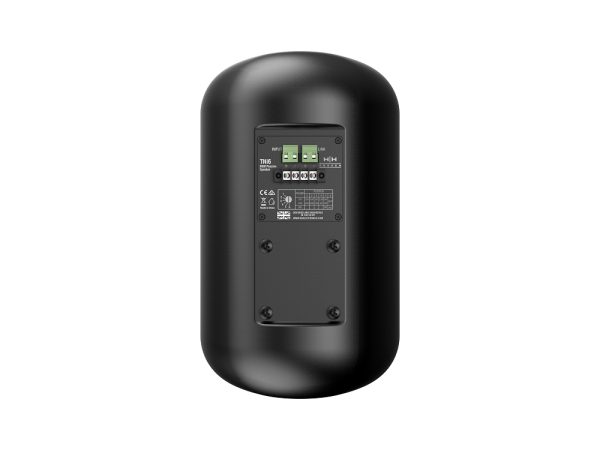

EUROBLOCK AND M4 TERMINALS
Link Connector
EUROBLOCK AND M4 TERMINALS
Mounting Bracket
ADJUSTABLE STEEL BRACKET INCLUDED
Unit Dimensions (Hwd)
330 X 196 X 281MM, 13" X 7.7" X 11.1"
Unit Weight
3.45KG, 7.6 LBS
Main Construction Material
ABS PLASTIC
Grille
BLACK, CIRCULAR STEEL MESH
Finish
BLACK
| Beam Angle | 90° degrees |
| Frequency Response | 80Hz - 18KHz Hz |
| Impedance | 8 OHM ohm |
| Max SPL | 113 dB SPL dB |
| Power Rating | 55W AES, 220W Peak W |
| Wattage | 2.5W - 40W W |
| Brand | HH Electronics |
| Name | HH Electronics TNI-W6-BK | 6in - 113dB |
| Primary Category | Passive Speaker |
| Build Material | ABS Plastic |
| Dimensions | 330 x 196 x 281 mm mm |
| Included Accessories | Adjustable steel mounting bracket |
| Mounting Options | Wall mount with adjustable steel bracket |
| Weight | 3.45 kg kg |
| Driver Configuration | 6.5 inch Paper LF Driver, 1" Dome Tweeter HF Driver |
