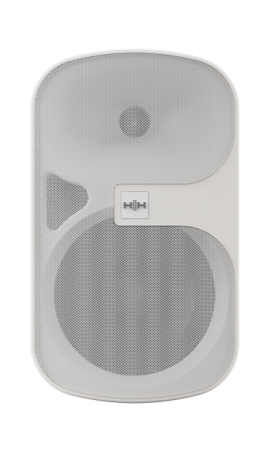

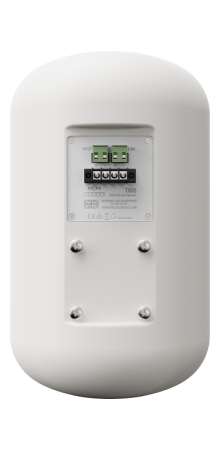

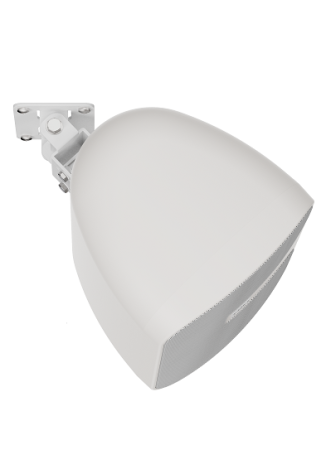

The TNi-W6 delivers professional audio output and versatility within a compact, wall mount speaker enclosure. The TNi-W6 – 6.5 inch passive speaker - features 4 power tappings ranging from 2.5W - 40W and can be connected to 70V/100V or 8 ohm low impedance lines. Equipped with euroblock and m4 screw terminals, The TNi-W6 offers a wide array of connections within a single unit. With solid steel, multi-angle bracket included, The TNi-W6 comes with all essential installation components.
SPECIFICATIONS:
100V Power Options
40W, 20W, 10W, 5W
70V Power Options
20W, 10W, 5W, 2.5W
Frequency Response (-10)
65Hz > 20KHz
Frequency Response (-3)
80Hz - 18KHz
LF Driver
6.5 inch Paper
HF Driver
1" DOME TWEETER
Low Nominal System Impedance
8 OHM
Power
55W AES, 220W Peak
Max SPL (1M) (Peak)
113 dB SPL
Sensitivity (1W/1M)
90 DB SPL
Recommended Amplifer
100-200W @ 8 Ohms
Horiz. Dispersion Angle 1000Hz
90°
Vertical Dispersion Angle 1000Hz
80°
Input Connector
EUROBLOCK AND M4 TERMINALS
Link Connector
EUROBLOCK AND M4 TERMINALS
Mounting Bracket
ADJUSTABLE STEEL BRACKET INCLUDED
Unit Dimensions (Hwd)
330 X 196 X 281MM, 13" X 7.7" X 11.1"
Unit Weight
3.45KG, 7.6 LBS
Main Construction Material
ABS PLASTIC
Grille
WHITE, CIRCULAR STEEL MESH
Finish
White
