Low-Profile Ceiling Installation Loudspeaker
Electro-Voice EVID-C6.2LP-G2 is a white 6.5-inch coaxial two-way ceiling loudspeaker designed for commercial audio systems where ceiling depth is limited. Its low-profile enclosure, bezel-less grille, 110° conical coverage, and SwiftLock mounting system make it ideal for restaurants, retail spaces, offices, hospitality venues, and other indoor installed sound applications.
Electro-Voice EVID-C6.2LP-G2 Competitive Differences
- Low-profile 4.8-inch mounting depth supports installation in tight ceiling spaces
- SwiftLock mounting system and front baffle tap adjustment simplify installation and system setup
Electro-Voice EVID-C6.2LP-G2 Description

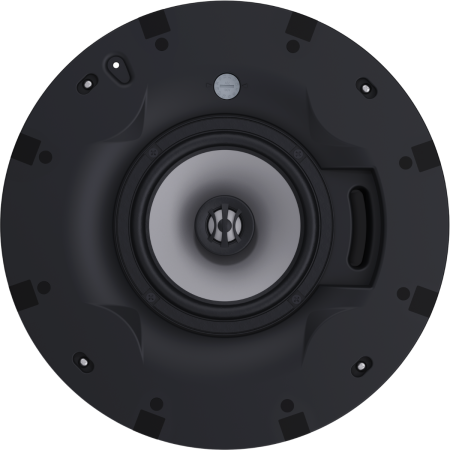

The Electro-Voice EVID-C6.2LP-G2 delivers clear, consistent audio from a coaxial point-source design with a 6-inch low-frequency driver and 1-inch high-frequency driver. Its 110° conical coverage helps provide uniform sound across distributed ceiling speaker systems for background music, foreground audio, and paging.
The integrated transformer supports 70V and 100V constant-voltage systems, with selectable wattage taps accessible from the front baffle. An 8-ohm bypass option also allows use with low-impedance amplifier systems when needed.
Designed for challenging ceiling installations, this low-profile model uses a 5.3-inch-deep enclosure with a 4.8-inch mounting depth. The speaker is built with a UL 94V-0 rated ABS baffle, heavy-gauge coated steel rear enclosure, and semi-gloss white powder-coated steel grille for a clean installed appearance.
EVID-C6.2LP-G2 Features
- White 6.5-inch low-profile coaxial two-way ceiling loudspeaker
- SwiftLock mounting system for quick, safe, and reliable installation
- Bezel-less design with easy-attach grille
- Front baffle wattage tap adjustment
- Point-source design for improved off-axis response
- 110° conical coverage
- 70V, 100V, and 8-ohm operation
- Includes tile bridge and mounting ring

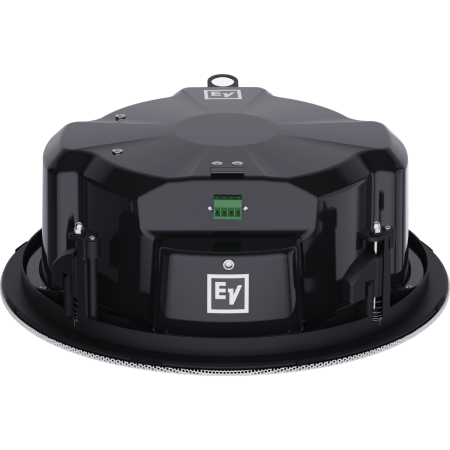

- 4-pin Euroblock connector with input and pass-through wiring
- Low-profile enclosure for tight ceiling spaces
- UL 1480A, UL 2043, CSA 22.2 205, and IEC 62638 certified
EVID-C6.2LP-G2 Specifications
- Speaker Type: Passive 2-Way Coaxial Low-Profile Ceiling Loudspeaker
- Frequency Range: 60 Hz – 20 kHz (-10 dB)
- Max SPL: 109 dB Continuous / 115 dB Peak
- Sensitivity: 90 dB SPL, 1W/1m
- Coverage: 110° Conical
- Power Handling: 80W Continuous / 320W Peak
- Long-Term Power Handling: 70W Continuous / 280W Peak
- Nominal Impedance: 8 Ohms
- Recommended High Pass: 60 Hz
- Transformer Taps: 70V: 30W / 15W / 7.5W / 3.75W / 1.88W
- Transformer Taps: 100V: 30W / 15W / 7.5W / 3.75W
- LF Driver: 6 in
- HF Driver: 1 in
- Connector: 4-Pin Euroblock, Input + Pass Through
- Maximum Wire Size: 12 AWG / 3.3 mm²
- Material: Steel Rear Enclosure
- Grille Material: Powder-Coated Steel
- Color: White / RAL 9003 Signal White
- Mounting Cutout: 12.7 in (322 mm)
- Dimensions: 13.9 x 5.3 in (353 x 133.1 mm)
- Mounting Depth: 4.8 in (122 mm)
- Ceiling Thickness: 0.5 - 1.5 in (12.5 - 38 mm)
- Weight: 9.9 lb (4.5 kg)
- IP Rating: IP34
- Weatherization: Indoor
- Operating Temperature: 32°F – 122°F (0°C – 50°C)
What's In The Box
- Electro-Voice EVID-C6.2LP-G2 Ceiling Loudspeaker
- Tile Bridge
- Mounting Ring
- Easy-Attach Grille
Electro-Voice EVID-C6.2LP-G2
(Electro-Voice EVIDC6.2LPG2)
